Mode 6 - 2004 TOYOTA: RAV4

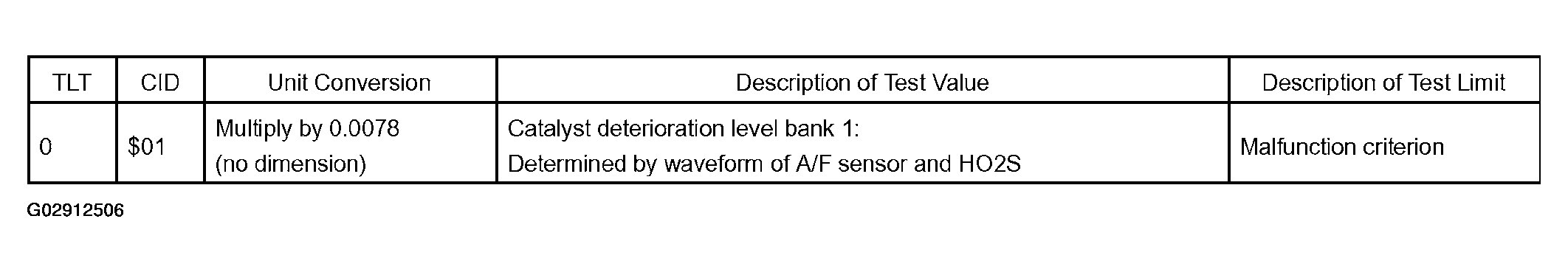

TID $07: A/F Sensor Heater
| TLT | CID | Unit Conversion | Description of Test Value | Description of Test Limit |
|---|---|---|---|---|
| 1 | $01 | Multiply by 0.00017 (A) | Maximum A/F sensor heater current (bank 1) | Malfunction criterion |
TID $04: HO2S Heater
| TLT | CID | Unit Conversion | Description of Test Value | Description of Test Limit |
|---|---|---|---|---|
| 1 | $02 | Multiply by 0.000076 (A) | Maximum HO2S heater current (bank 1 sensor 2) | Malfunction criterion |
TID $08: Thermostat
| TLT | CID | Unit Conversion | Description of Test Value | Description of Test Limit |
|---|---|---|---|---|
| 1 | $01 | Multiply by 0.625 and subtract 40 (°C) | ECT sensor output when estimated ECT reaches malfunction criterion | Malfunction criterion |
REAR HO2S VOLTAGE TEST DATA
| TEST ID | Description of TEST DATA | Conversion Factor | Unit | Standard Value |
|---|---|---|---|---|
| $07 | Minimum rear HO2S voltage | N/A | V | Below 0.45 V |
| $08 | Maximum rear HO2S voltage | N/A | V | 0.6 V or more |
| $31 | Time that rear HO2S output changes Lean to Rich | N/A | sec. | Below 3 sec. |
| $32 | Time that rear HO2S output changes Rich to Lean | N/A | sec. | Below 3 sec. |
REAR HO2S SLOW RESPONSE
| TEST ID | Description of TEST DATA | Conversion Factor | Unit | Standard Value |
|---|---|---|---|---|
| $37 | Time until rear HO2S voltage drops to below 0.2 V after fuel-cut starting | N/A | sec. | Below 7 sec. |
REAR HO2S LOW VOLTAGE TEST DATA
| TEST ID | Description of TEST DATA | Conversion Factor | Unit | Standard Value |
|---|---|---|---|---|
| $81 | Percentage in monitor time where rear HO2S voltage is below 0.05 V | Multiply 0.3906 | % | Within 60 % |
| $84 | Percentage in monitor time where rear HO2S voltage is 0.7 V or more | Multiply 0.3906 | % | 20 % or more |
| $85 | Continuous time that rear HO2S voltage is 0.45 V or more | Multiply 0.2621 | sec. | 20 sec. or more |
| $87 | Percentage in monitor time where rear HO2S voltage is 0.45 V or more | Multiply 0.3906 | % | 40 % or more |
TID $02: EVAP - Vacuum Monitor
| TLT | CID | Unit Conversion | Description of Test Value | Description of Test Limit |
|---|---|---|---|---|
| 1 | $01 | Multiply by 0.0916 (mmHg) | Test value of EVAP VSV: Determined by fuel tank pressure change during vacuum introduction | Malfunction criterion |
| 1 | $02 | Multiply by 0.0458 and subtract 2.93 (mmHg) | Test value of bypass VSV (pressure switching valve): Determined by fuel tank pressure change at switching over bypass VSV | Malfunction criterion |
| 0 | $03 | Multiply by 0.0458 (mmHg) | Test value of 0.04 inch leak: Determined by fuel tank pressure change | Malfunction criterion |
| 0 | $04 | Multiply by 0.0458 (mmHg) | Test value of 0.02 inch leak: Determined by fuel tank pressure change | Malfunction criterion |
| 1 | $05 | Multiply by 0.0458 and subtract 2.93 (mmHg) | Test value of CCV: Determined by fuel tank pressure change at switching over CCV | Malfunction criterion |
TID $06: A/F Sensor
| TLT | CID | Unit Conversion | Description of Test Value | Description of Test Limit |
|---|---|---|---|---|
| 0 | $01 | Multiply by 0.000244 (No dimension) | Parameter for identify A/F sensor response rate (bank 1) | Malfunction criterion |
