Back Door Glass: Components

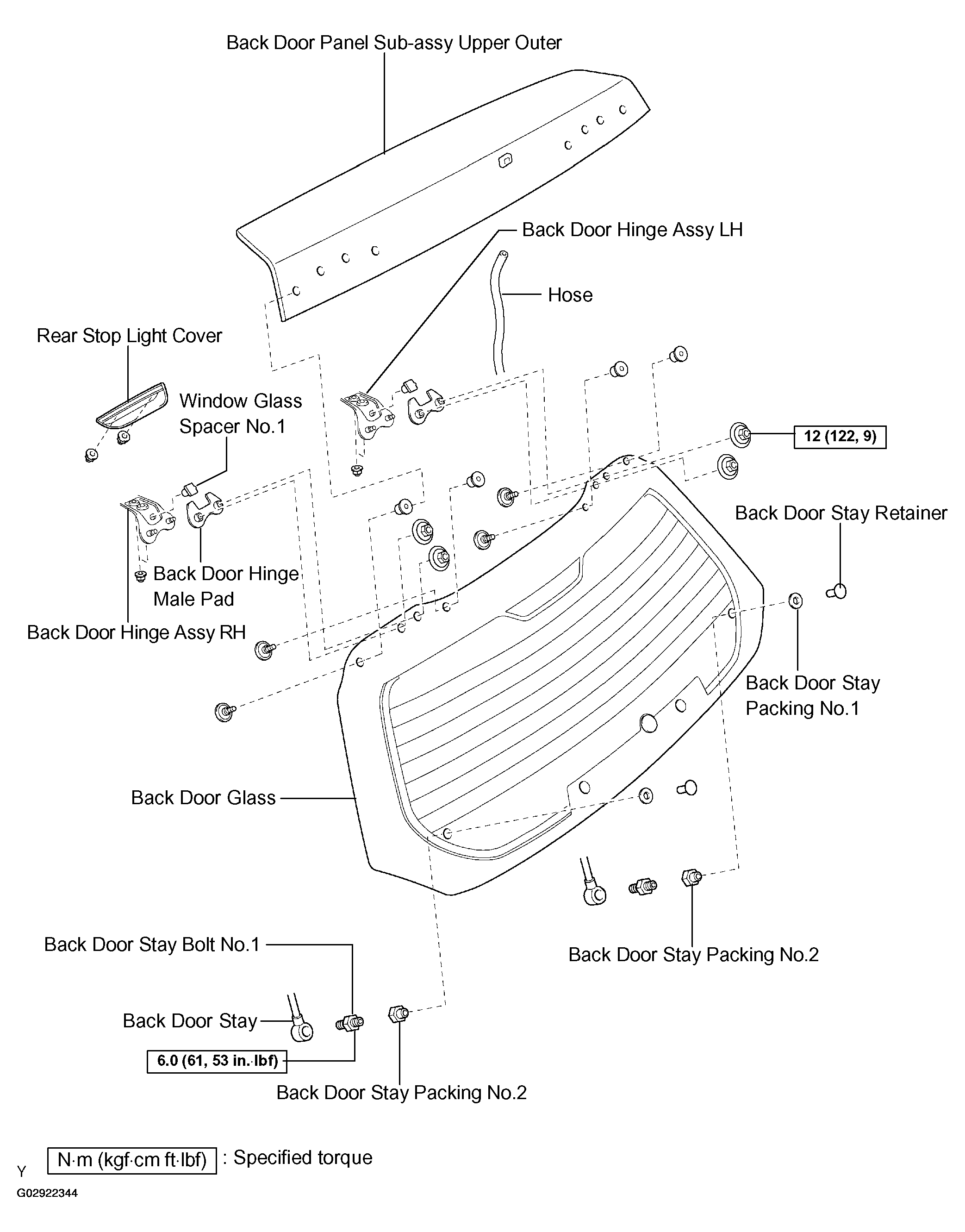

Fig 1: Identifying Back Door Glass Components
G02922344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
