Window Defogger System: Location

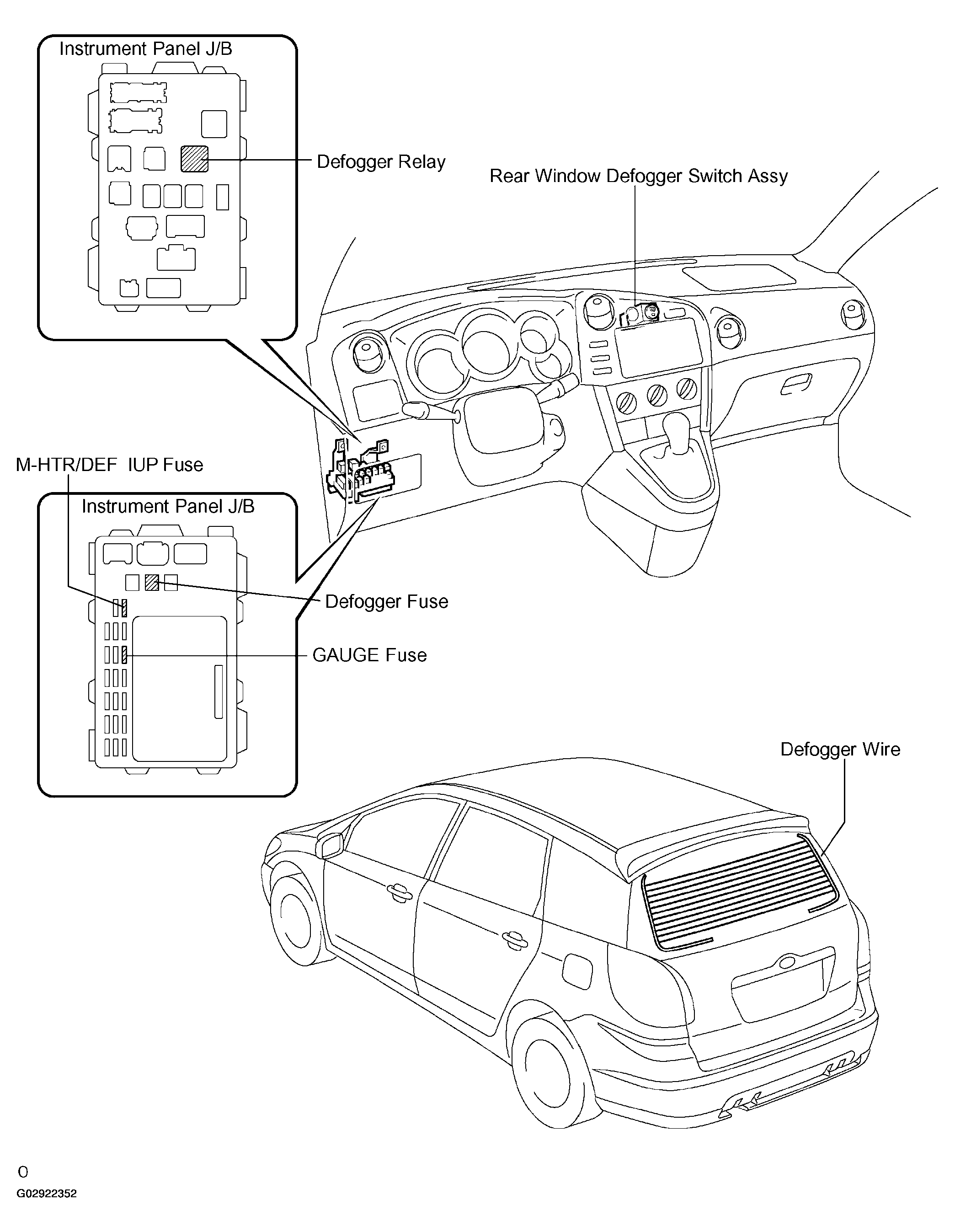

Fig 1: Identifying Window Defogger System Components Location
G02922352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
