Brake Actuator ASSY: Replacement

DRAIN BRAKE FLUID
NOTE: Wash brake fluid off immediately if it comes into contact with any painted surface.
REMOVE FRONT WHEEL RH
REMOVE FRONT FENDER LINER RH
REMOVE BRAKE ACTUATOR WITH BRACKET
1. Turn the latch of the actuator connector to disconnect the connector.
2. Using SST, disconnect the 6 brake tubes from the actuator.
  SST 09023-00100

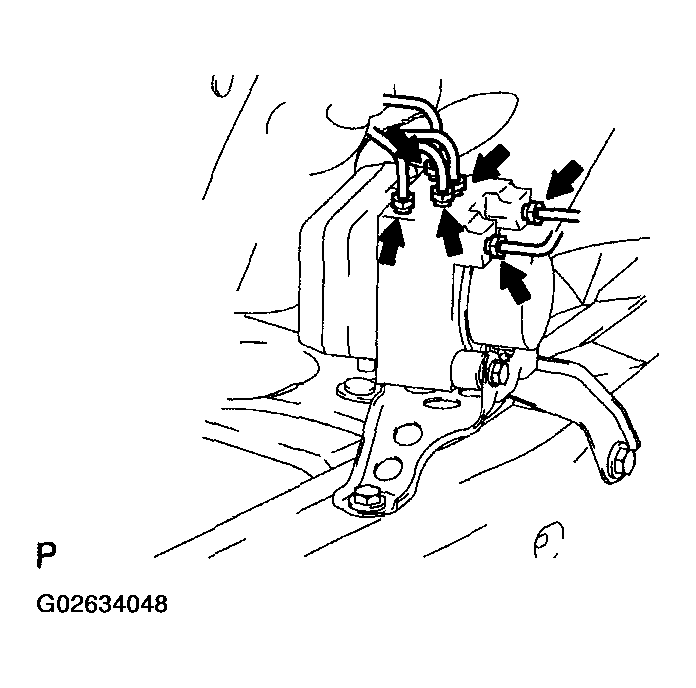

  Fig 1: Disconnecting Brake Tubes From Actuator With Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Attach tags or make a memo to identify the places to reconnect.

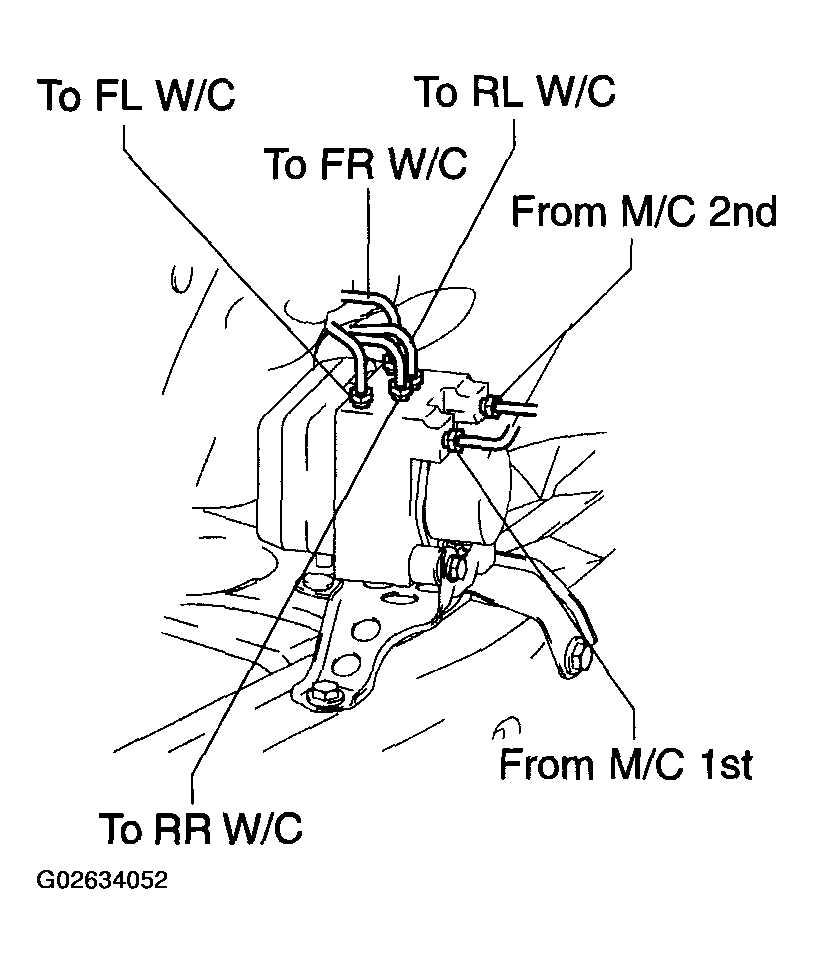

  Fig 2: Identifying Places To Reconnect Brake Tubes
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the 2 bolts, nut and the actuator with bracket.

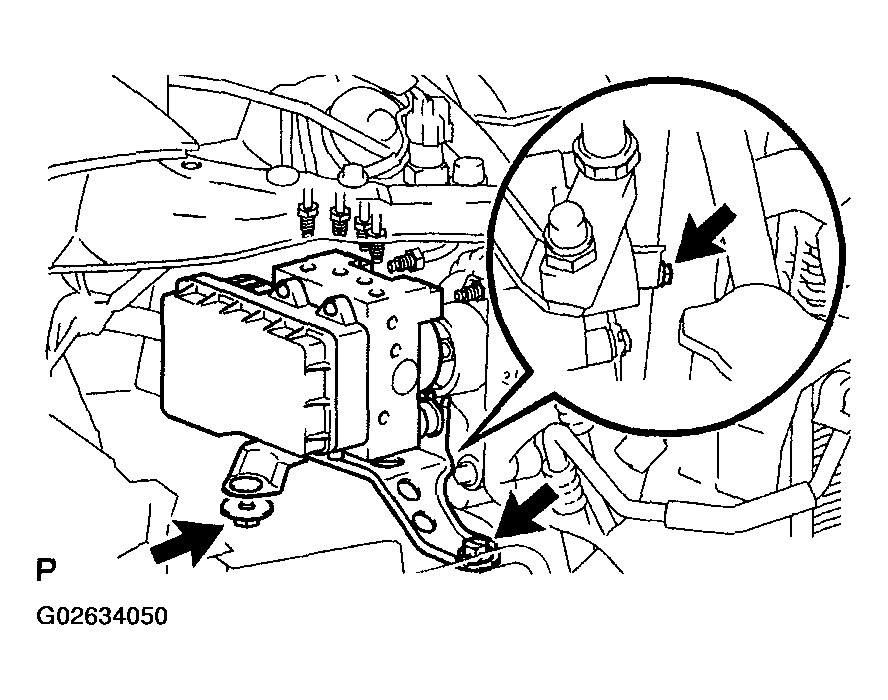

Fig 3: Removing Actuator With Bracket
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE BRAKE ACTUATOR ASSY
1. Remove the 3 nuts and brake actuator from the bracket.
INSTALL BRAKE ACTUATOR ASSY
1. Install the brake actuator with the 3 nuts to the bracket.
  Torque: 4.7 N.m (48 kgf.cm, 42 in.lbf)
INSTALL BRAKE ACTUATOR WITH BRACKET
1. Install the actuator with bracket with the 2 bolts and nut.
  Torque: 19 N.m (194 kgf.cm, 14 ft.lbf)

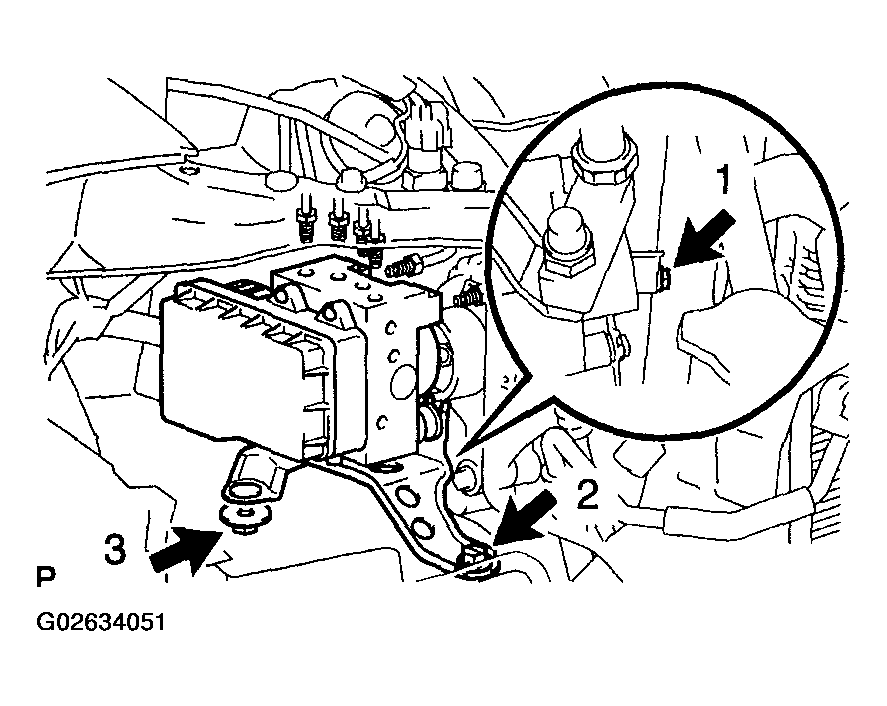

  Fig 4: Installing Brake Actuator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST, connect each brake tube to correct positions of the actuator with bracket.
  SST 09023-00101

  Torque: 15 N.m (155 kgf.cm, 11 ft.lbf)
3. Connect the actuator connector.

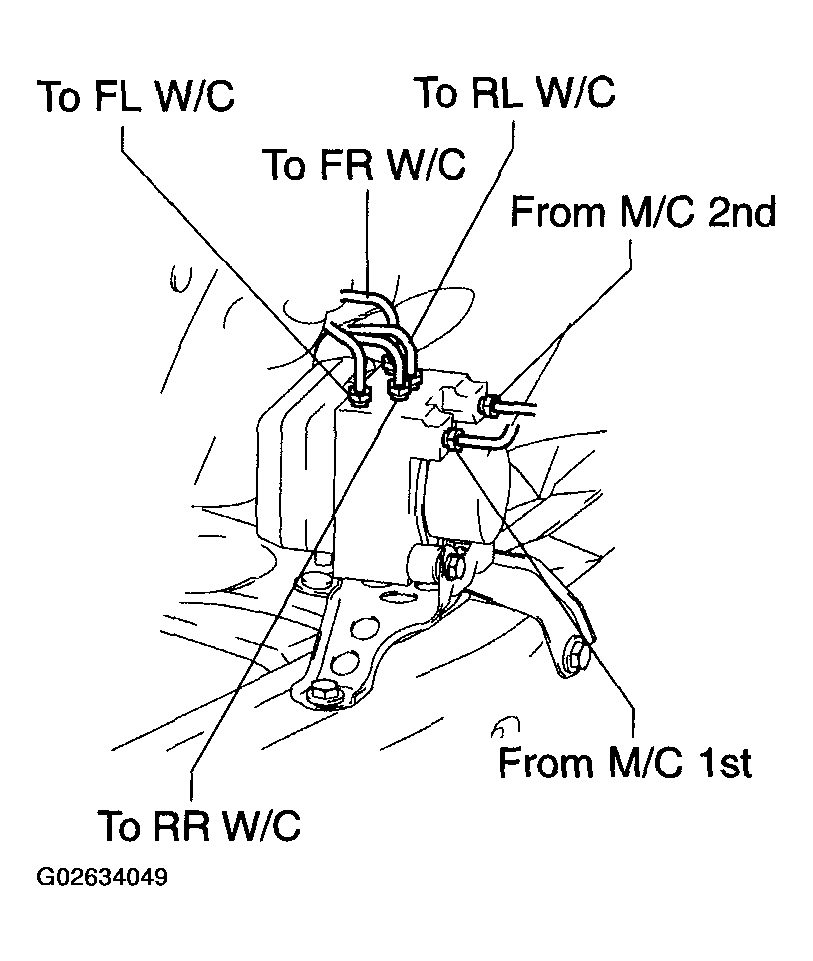

  Fig 5: Connecting Brake Tube
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT FENDER LINER RH
INSTALL FRONT WHEEL RH
Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)
FILL RESERVOIR WITH BRAKE FLUID
BLEED MASTER CYLINDER (SEE BRAKE FLUID )
SST 09023-00100
BLEED BRAKE LINE (SEE BRAKE FLUID )
CHECK FLUID LEVEL IN RESERVOIR
CHECK FOR BRAKE FLUID LEAKAGE
CHECK ACTUATOR WITH HAND-HELD TESTER (SEE ON-VEHICLE INSPECTION )
