Front Brake: Components

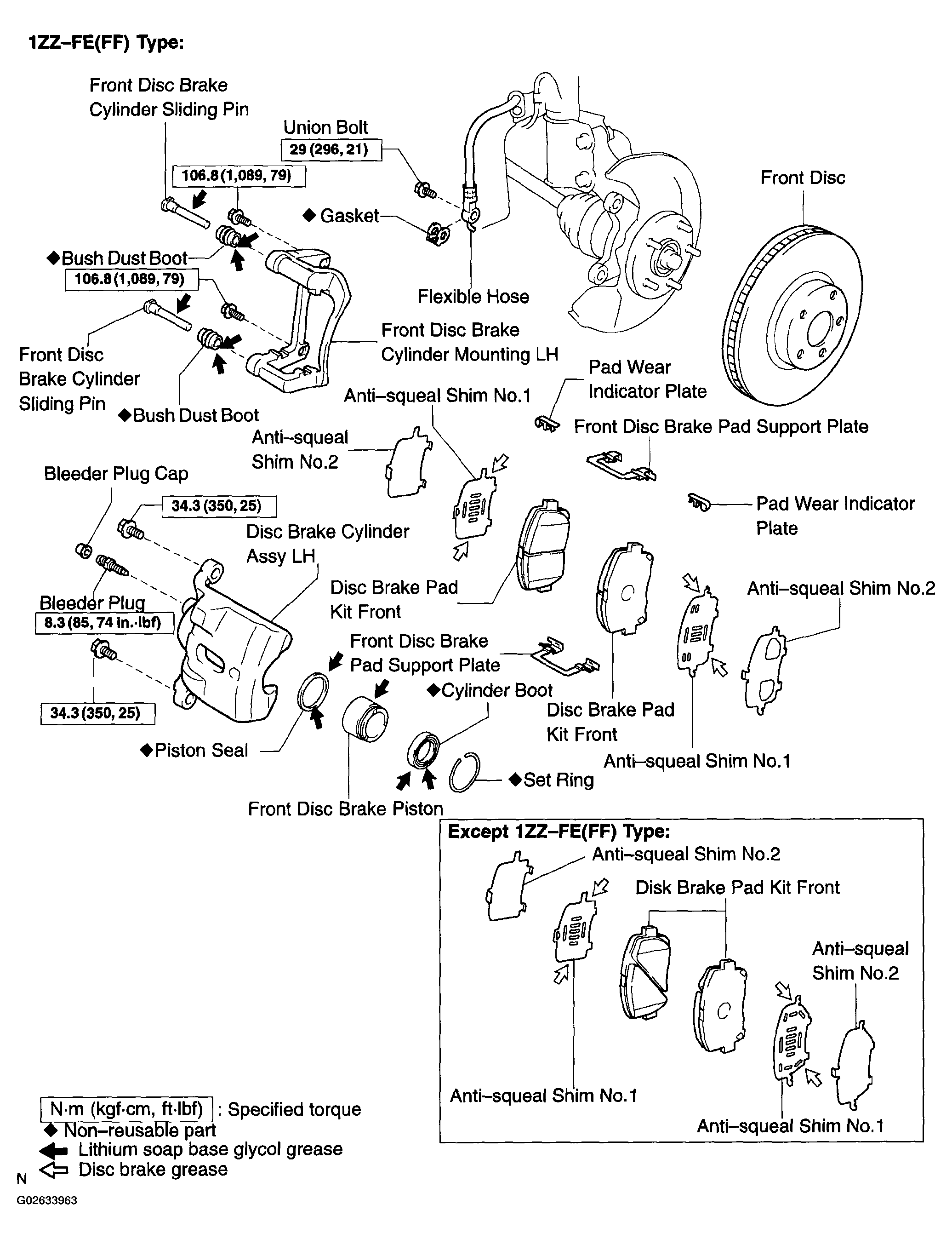

Fig 1: Identifying Front Brake Components (1ZZ-FE - FF Type)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
