Speed Sensor Rear LH (4WD): Replacement

REMOVE REAR WHEEL
REMOVE FUEL TANK FILLER PIPE PROTECTOR
1. Remove the 3 bolts, then remove the fuel tank filler pipe protector LH.

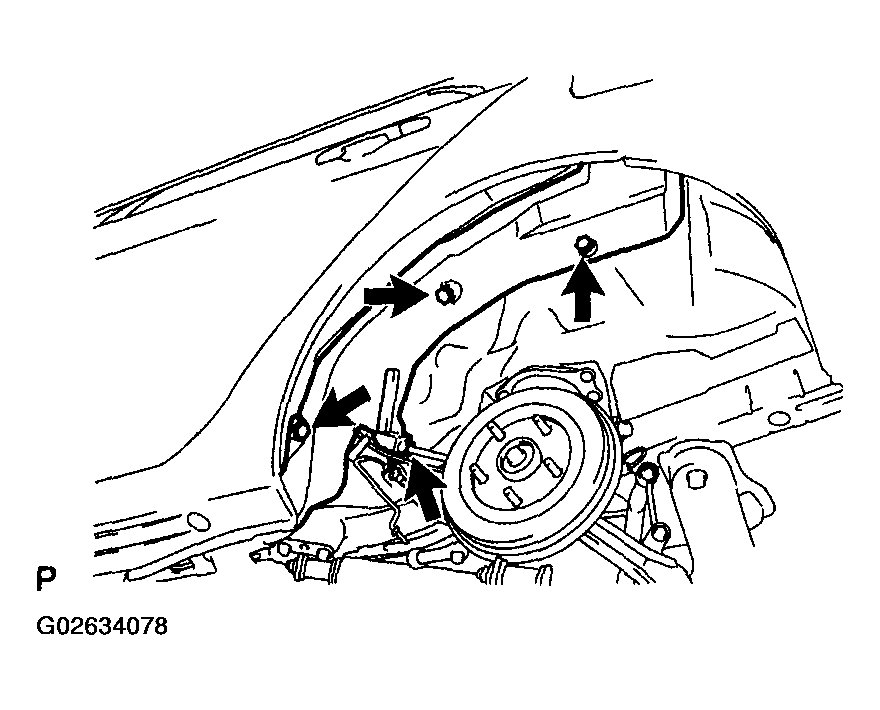

  Fig 1: Removing Fuel Tank Filler Pipe Protector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR SEAT BACK ASSY LH (See OVERHAUL )
DISCONNECT SPEED SENSOR REAR LH
1. Disconnect the speed sensor connector, and pull out the sensor wire harness with grommet.

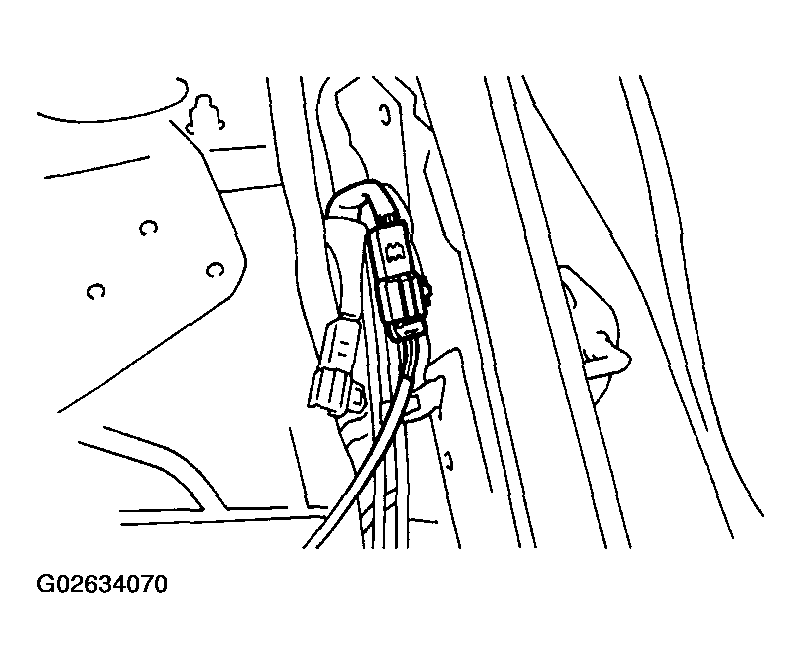

  Fig 2: Disconnecting Speed Sensor Rear LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SPEED SENSOR REAR LH
1. Remove the bolt from the body.

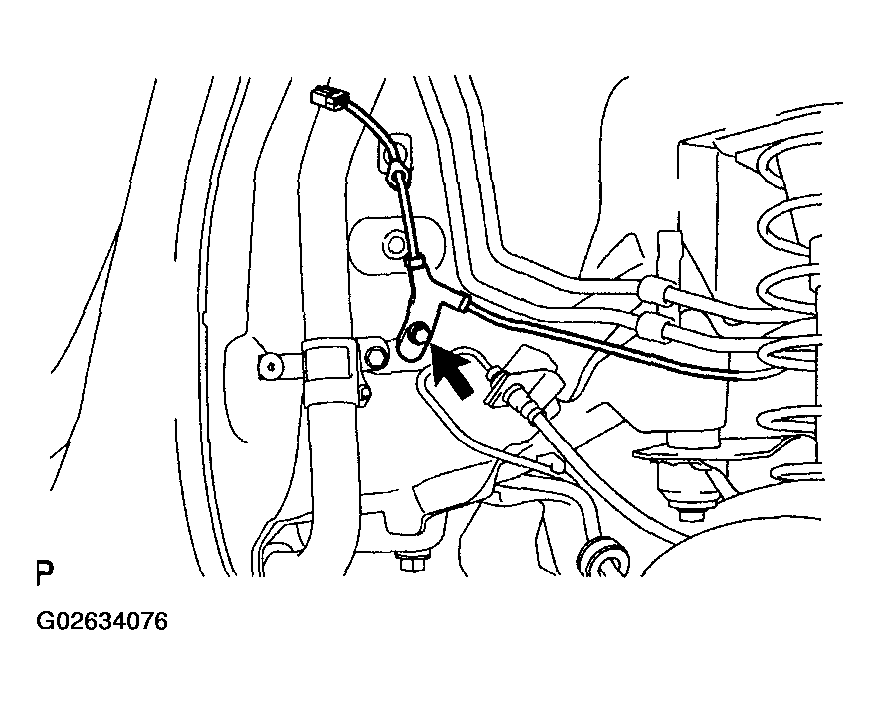

  Fig 3: Removing Bolt From Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the bolt and nut from the suspension member and upper arm.

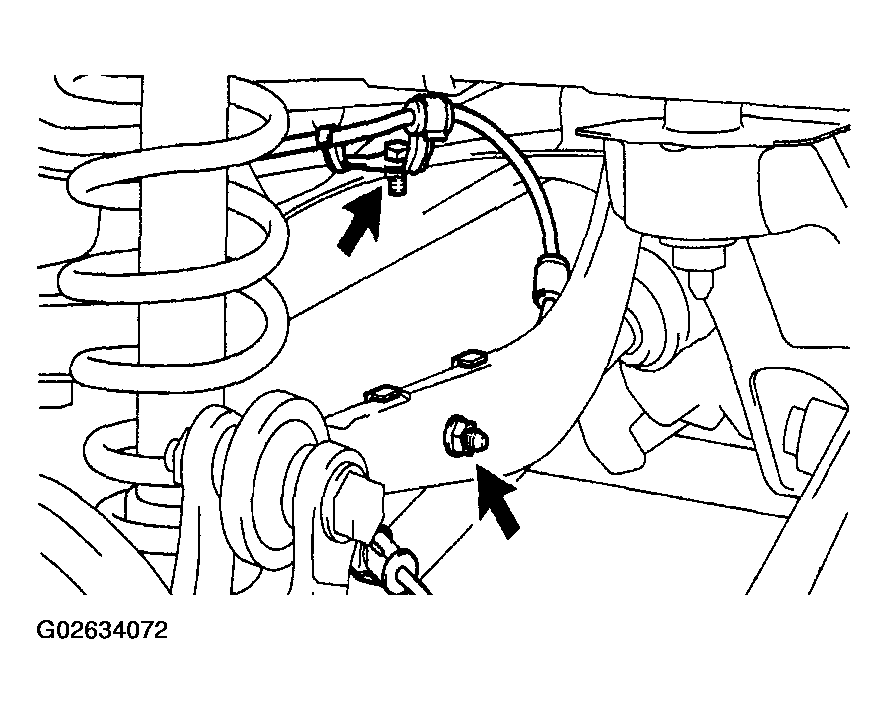

  Fig 4: Removing Bolt And Nut From Suspension Member And Upper Arm
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the bolt from the knuckle, and remove the speed sensor rear LH.
NOTE: Keep on the sensor tip clean.

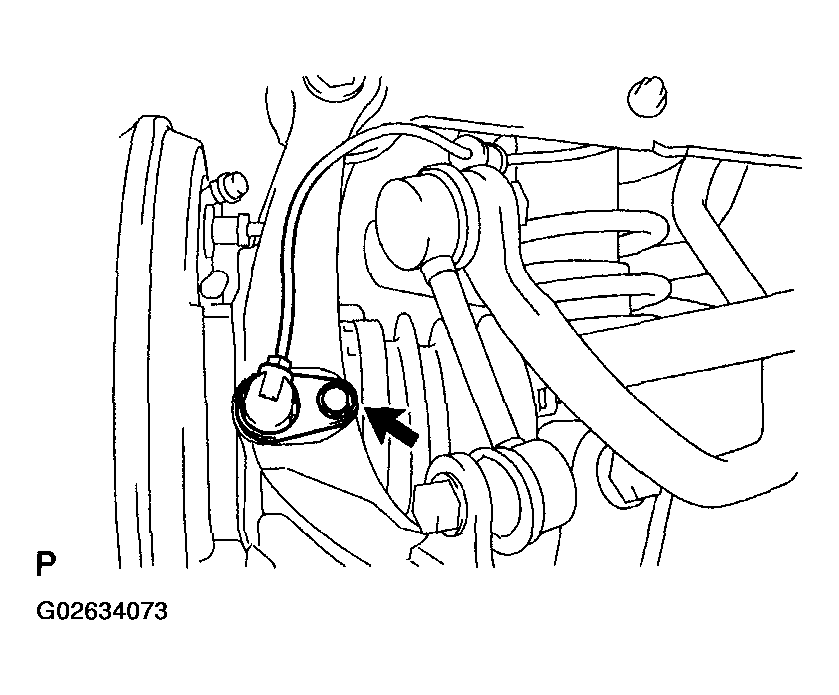

Fig 5: Removing Speed Sensor Rear LH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SPEED SENSOR REAR LH
1. Install the speed sensor rear LH with the bolt to knuckle.
  NOTE: Make sure the sensor tip is clean.

  Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

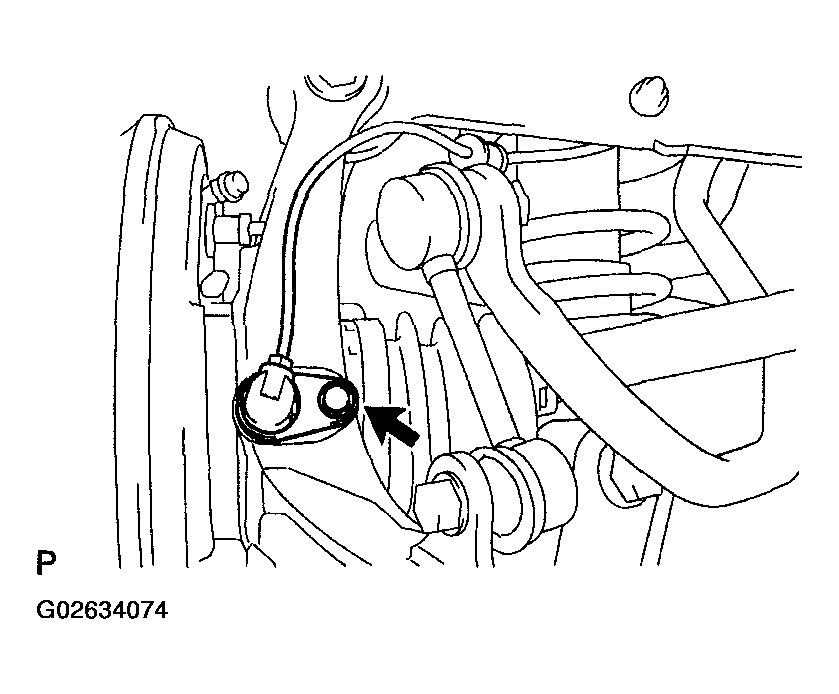

  Fig 6: Installing Speed Sensor Rear LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the clamp with the bolt and nut to the upper arm and suspension member.
  Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf)

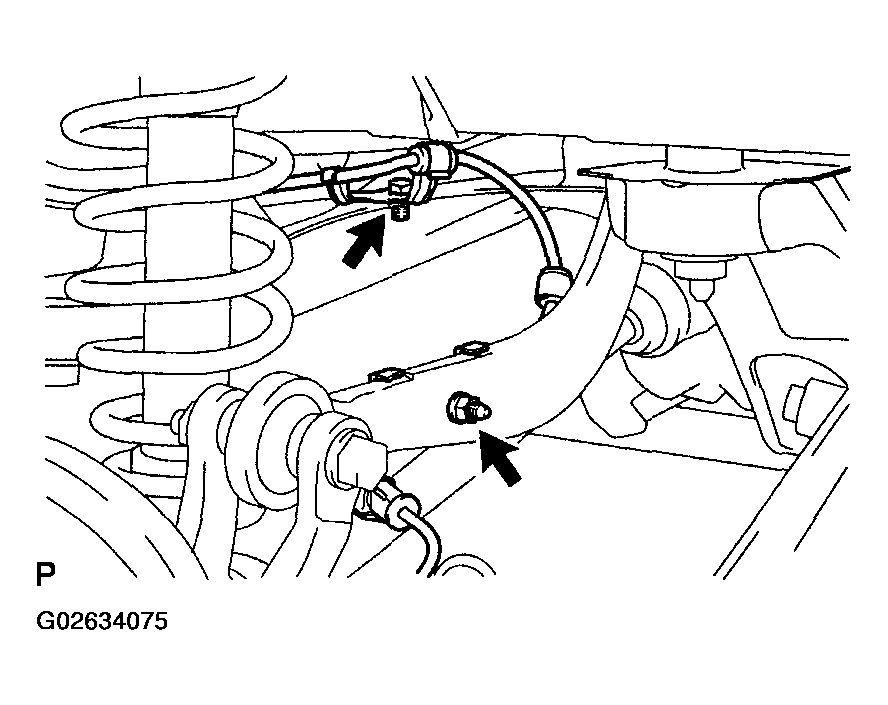

  Fig 7: Installing Clamp With Bolt And Nut To Upper Arm And Suspension Member
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the clamp with the bolt to the body, and install the grommet to the body.
  Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf)

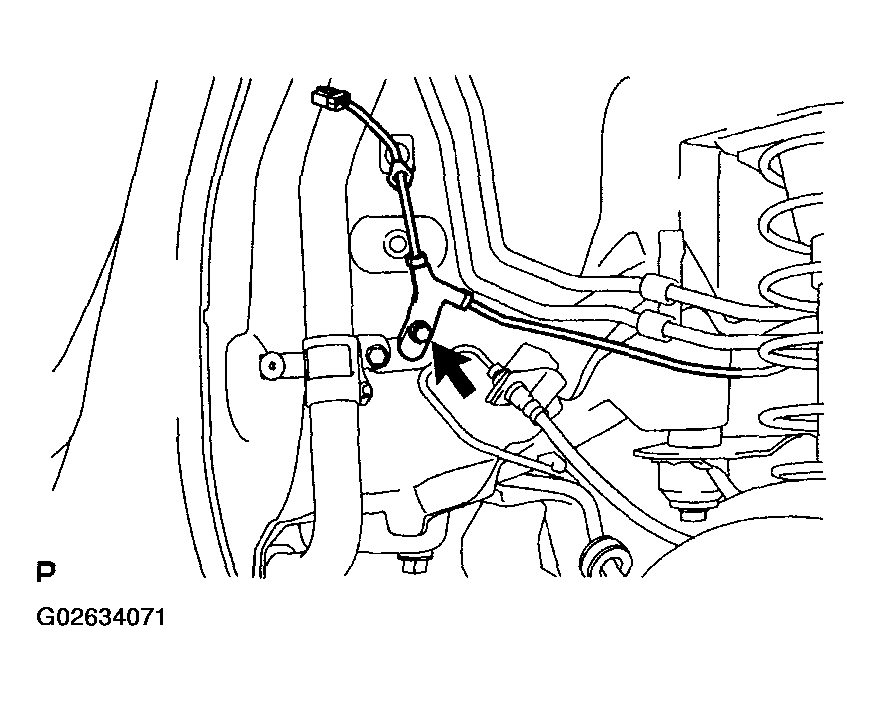

  Fig 8: Installing Clamp With Bolt To Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT SPEED SENSOR REAR LH
1. Push in the wire harness with grommet, and connect the speed sensor connector.

  Fig 9: Connecting Speed Sensor Rear LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEAT BACK ASSY LH (See OVERHAUL OVERHAUL )
INSTALL FUEL TANK FILLER PIPE PROTECTOR
1. Install the fuel tank filler pipe protector with the 3 bolts.

  Fig 10: Installing Fuel Tank Filler Pipe Protector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR WHEEL
Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)
CHECK ABS SPEED SENSOR SIGNAL (See COMBINATION METER )
