Horn System: Inspection

1. Connect the positive (+) lead from the battery to the terminal and the negative (-) lead to the horn body, and check that the horn blows.

If the result is not as specified, replace the horn.

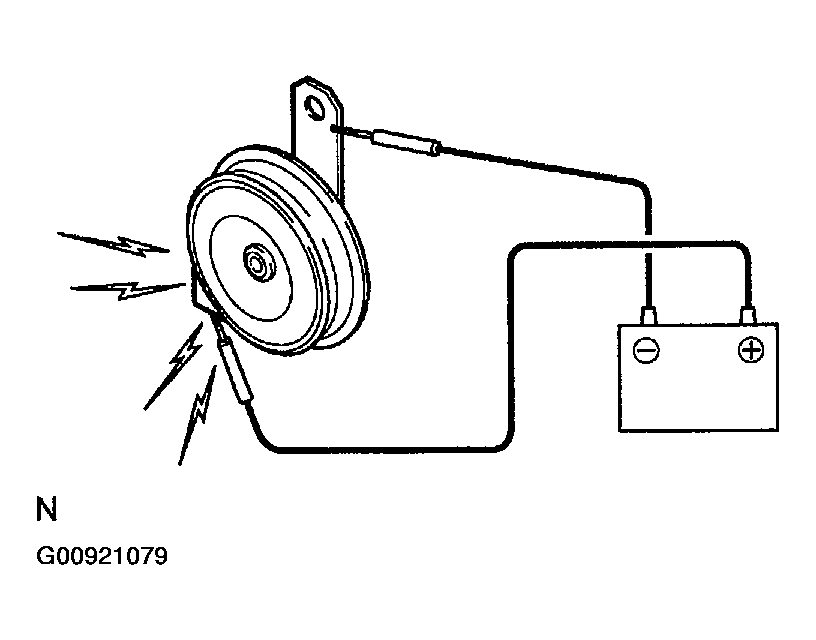

Fig 1: Inspecting Low Pitched Horn Assy

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the horn relay from the engine room R/B and J/B.
2. Inspect the horn relay continuity.

   Standard:

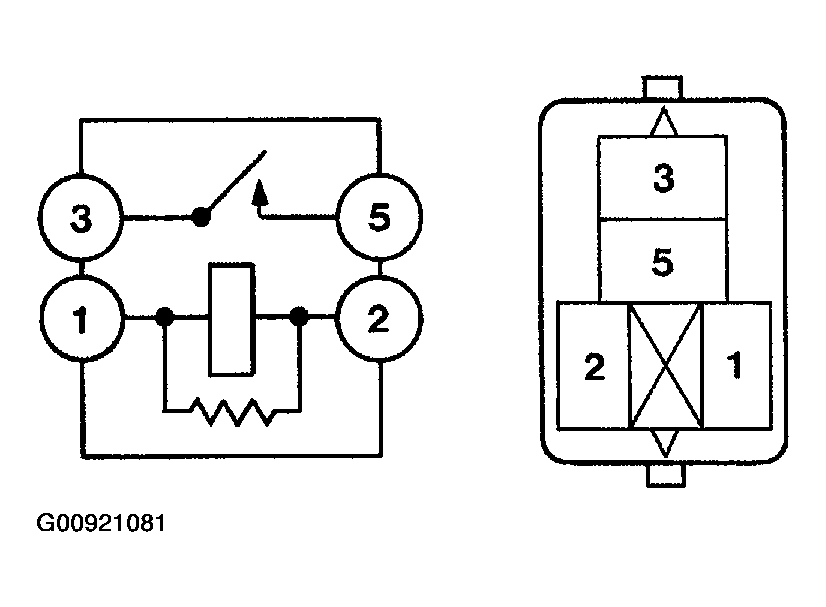

Fig 2: Inspecting Horn Relay Assy

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

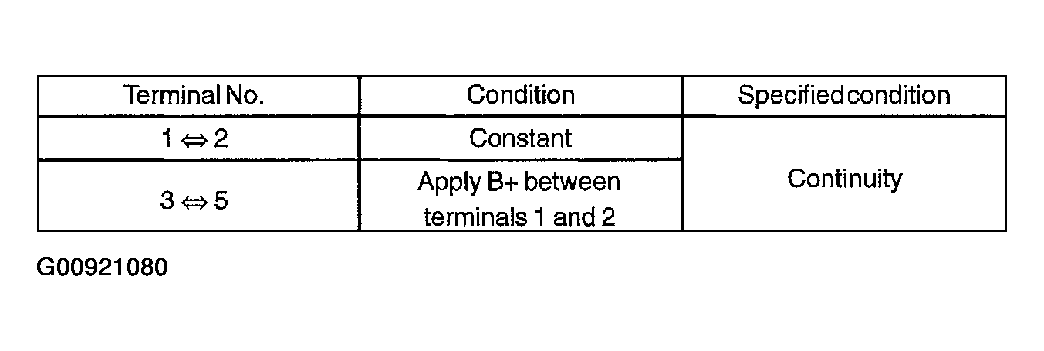

Fig 3: Horn Relay Continuity Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the result is not as specified, replace the relay.
