Fuel Pump ASSY (Ff): Components: Notes

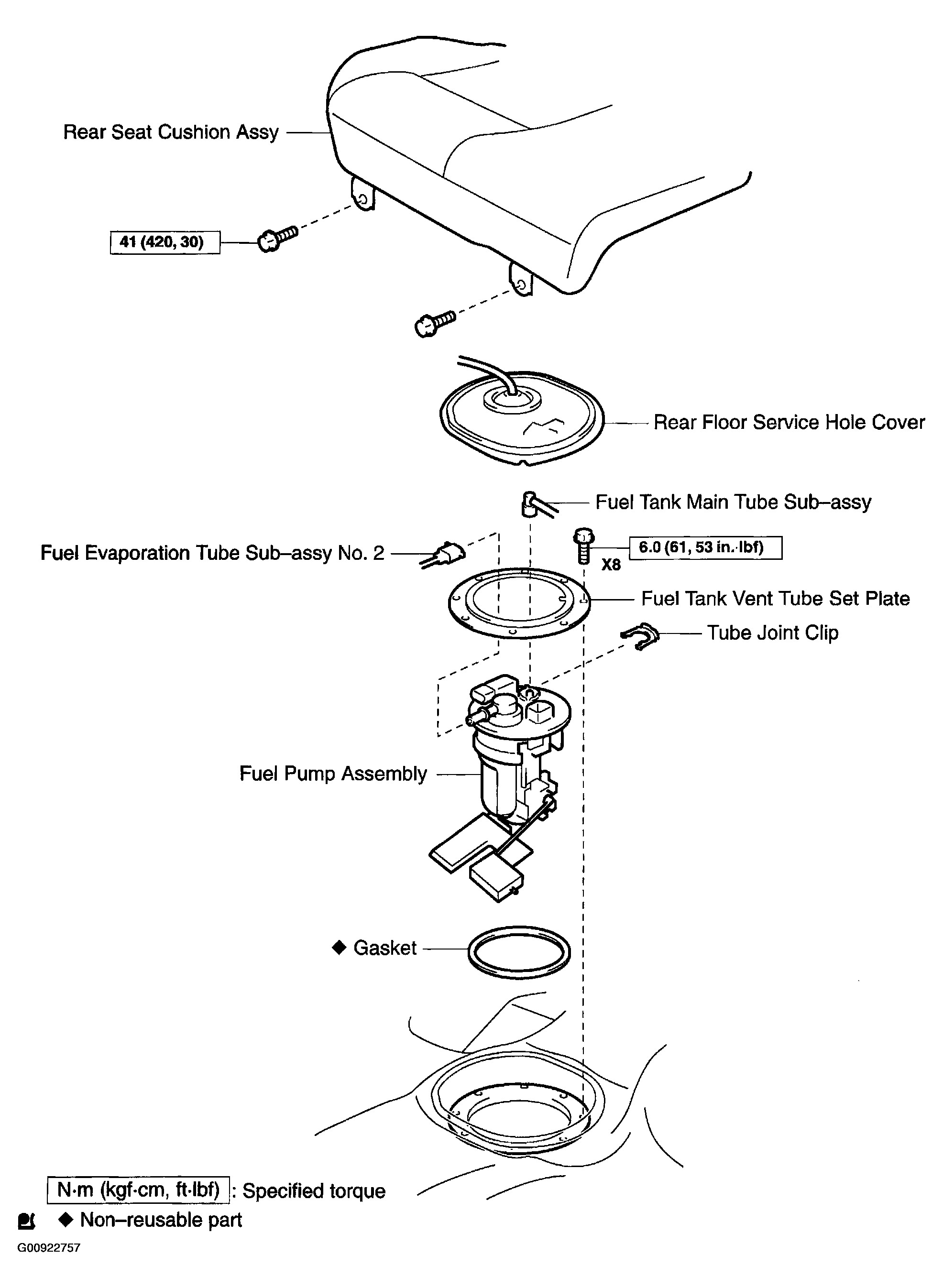

Fig 1: Identifying Fuel Pump Assy (FF) Components (1 Of 2)
G00922757Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

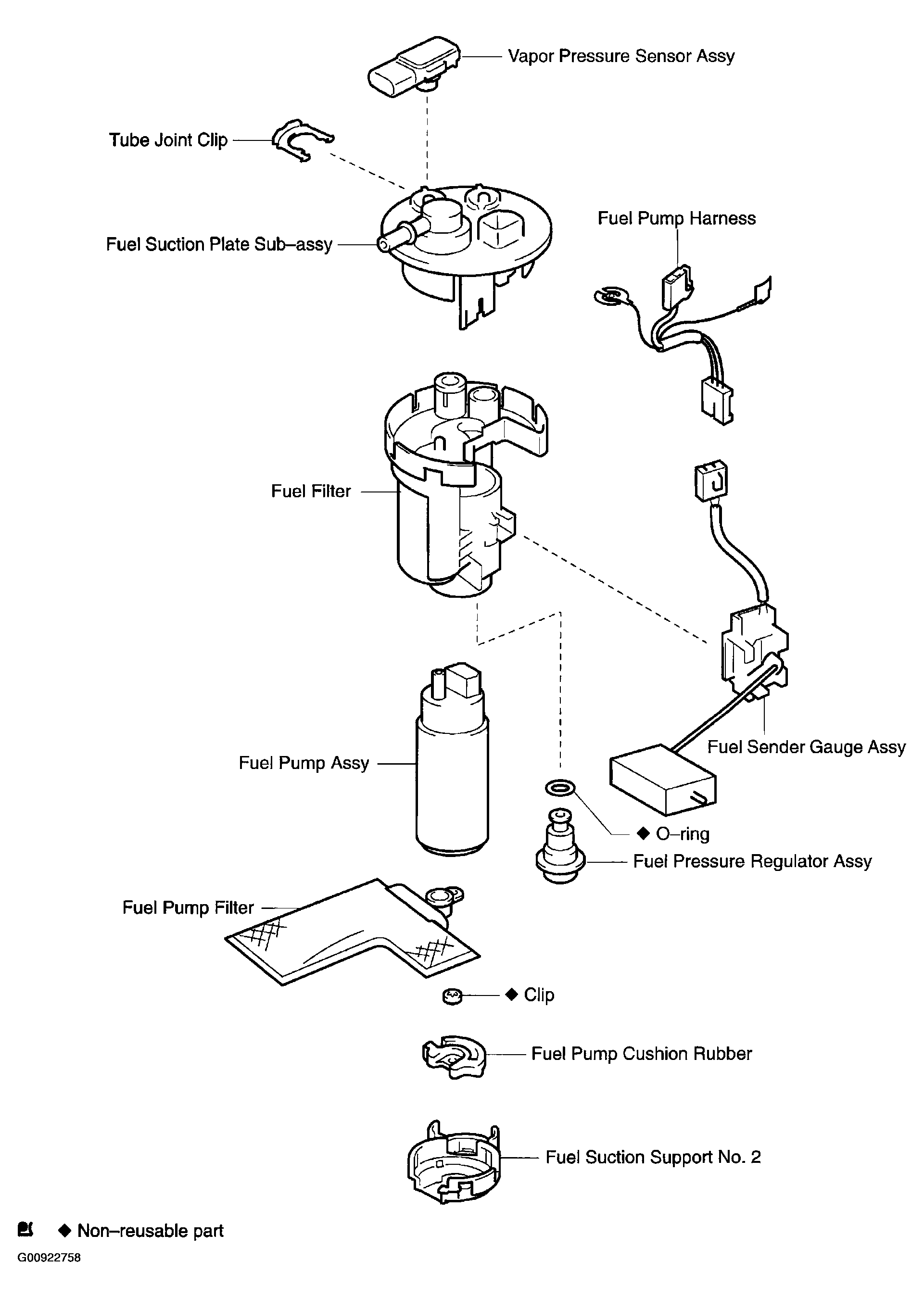

Fig 2: Identifying Fuel Pump Assy (FF) Components (2 Of 2)
G00922758Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
