On-Vehicle Inspection

CHECK FUEL PUMP OPERATION
1. Connect the hand-held tester to the DLC3.
2. Turn the ignition switch ON and hand-held tester main switch ON.
  NOTE: Do not start the engine.
3. Select the active test mode on the hand-held tester.
4. Please refer to the hand-held tester operator's manual for further details.
5. If you have no hand-held tester, connect the positive (+) lead form the battery to terminal 4 of the connector, and the negative (-) lead to terminal 5.

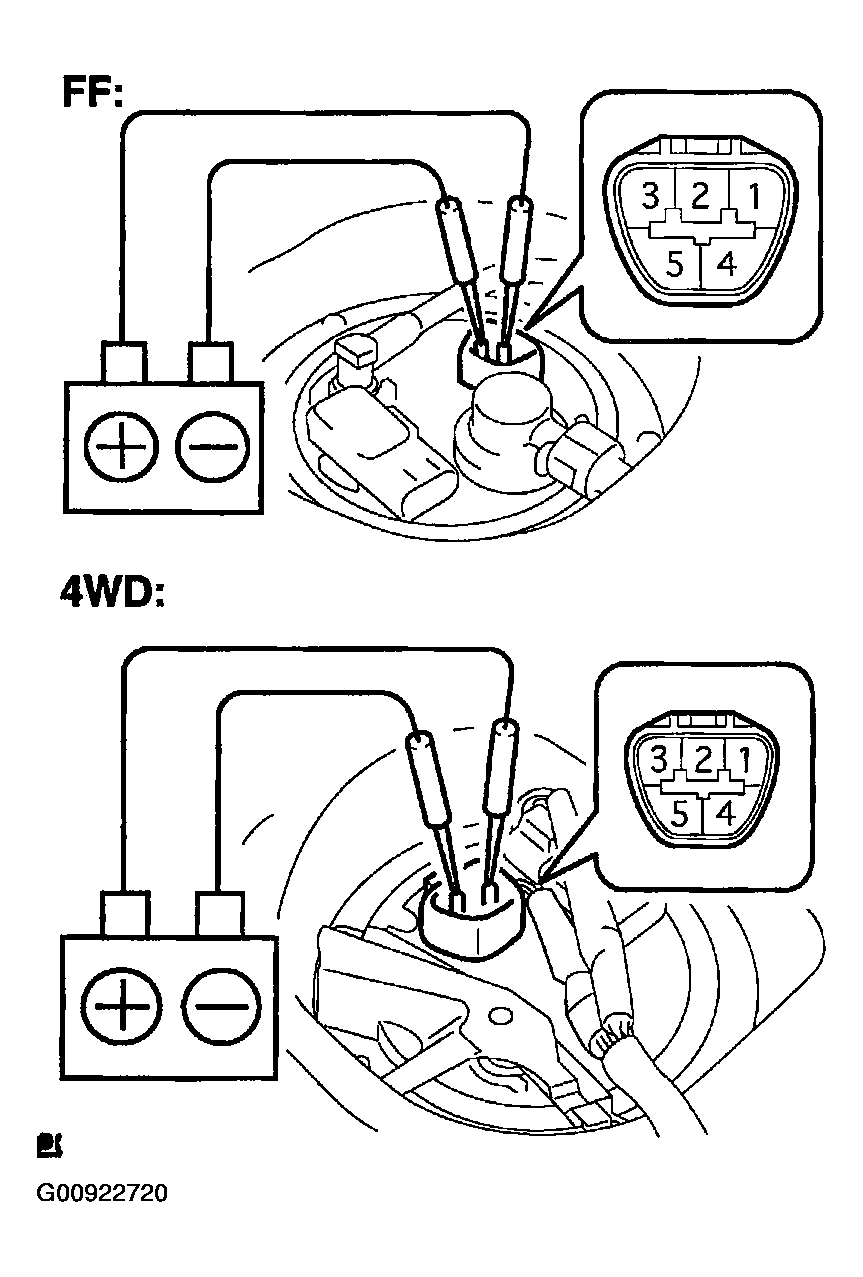

  Fig 1: Connecting Positive (+) Lead Form Battery To Terminal 4 Of Connector & Negative (-) Lead To Terminal 5
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - These tests must be done quickly (within 10 seconds) to prevent the coil burning out.
  - Keep the fuel pump as far away from the battery as possible.
  - Always do the switching at the battery side.
CHECK FUEL PRESSURE
1. Prepare for inspection.
  1. Purchase a new fuel tube, and take out the fuel tube connector from its tube.

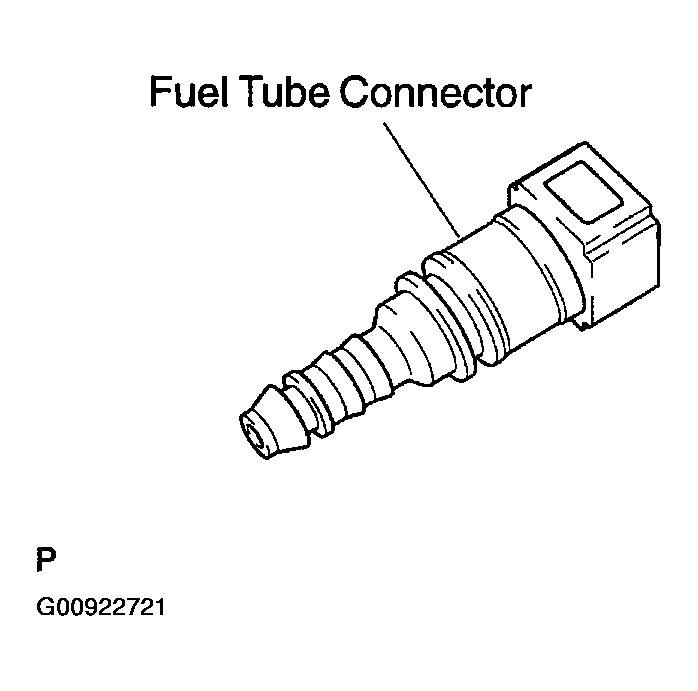

    Fig 2: Locating Fuel Tube Connector
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE: Part No. 23901-0D010
2. Work for prevent gasoline from spilling out.
  (See FUEL SYSTEM )
3. Disconnect the EFI fuel pipe clamp. (See FUEL SYSTEM )
4. Disconnect the fuel tube from the fuel main tube.
  (See FUEL SYSTEM )
5. Install SST (pressure gauge) as shown in Fig 3 by using the SST and fuel tube connector.
  SST 09268-41047 (90467-13001, 95336-08070), 09268-45014 (09268-41200, 09268-41220, 09268-41250, 90467-13001)

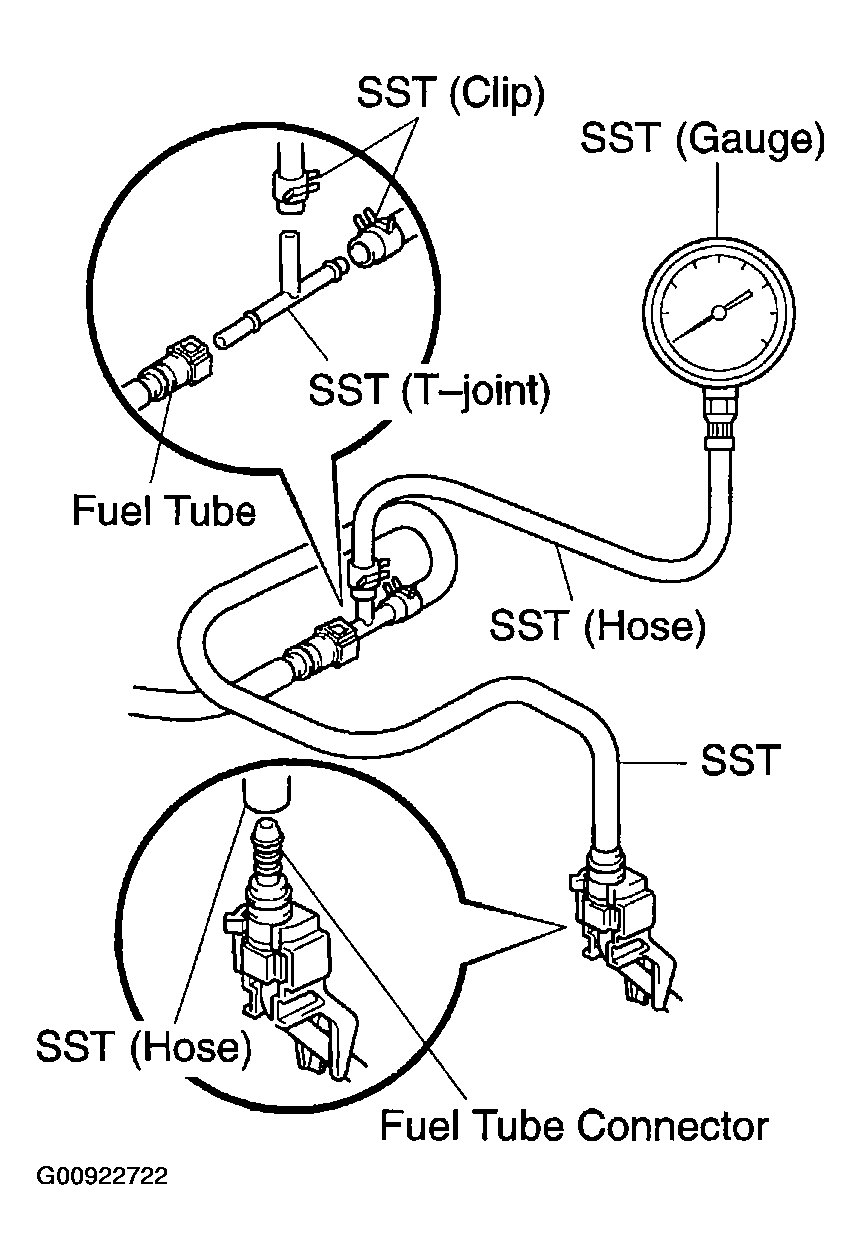

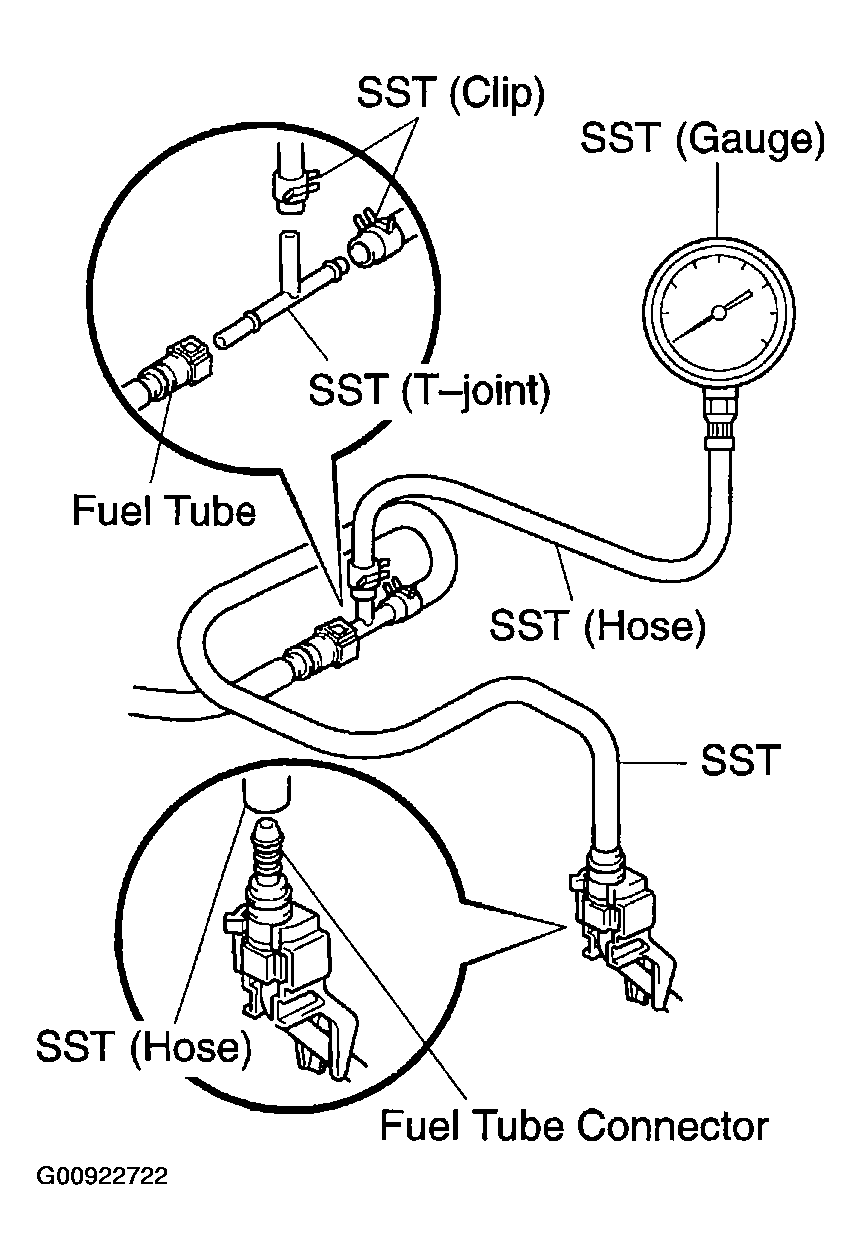

  Fig 3: Installing SST (Pressure Gauge) Using SST & Fuel Tube Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Wipe off any splattered gasoline.
7. Start the engine.
8. Measure the fuel pressure at idle.
  1. Fuel pressure: 304 - 343 kPa (3.1 - 3.5 kgf.cm ² , 44 - 50 psi)
9. Stop the engine.
10. Check that the fuel pressure remains as specified for 5 minutes after the engine has stopped.
  1. Fuel pressure:147 kPa (1.5 kgf.cm ² , 21 psi) or more
  If pressure is not as specified, check the fuel pump, pressure regulator and/or injectors.
11. After checking fuel pressure, disconnect the negative (-) terminal cable from the battery and carefully, remove the SST and fuel tube connector to prevent gasoline from the splashing.
12. Reconnect the fuel tube to fuel main tube.
13. Install the EFI fuel pipe clamp.
14. Check fuel leak. (See FUEL SYSTEM )
