Vehicle Identification And Serial Numbers

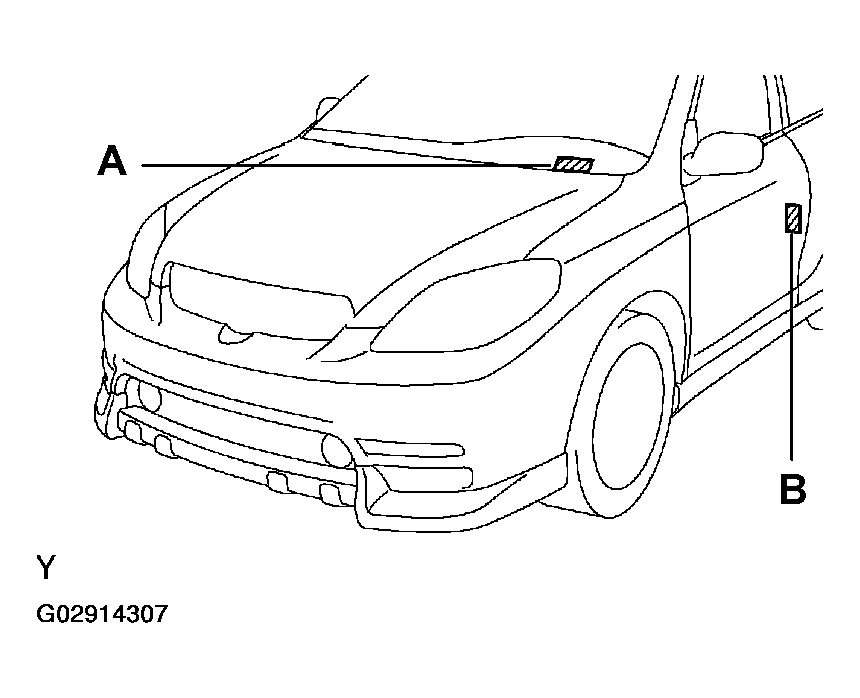

- VEHICLE IDENTIFICATION NUMBER
- The vehicle identification number is stamped on the vehicle identification number plate and certification label, as shown in
Fig 1.
A: Vehicle Identification Number Plate
B: Certification Label
- The vehicle identification number is stamped on the vehicle identification number plate and certification label, as shown in
Fig 1.

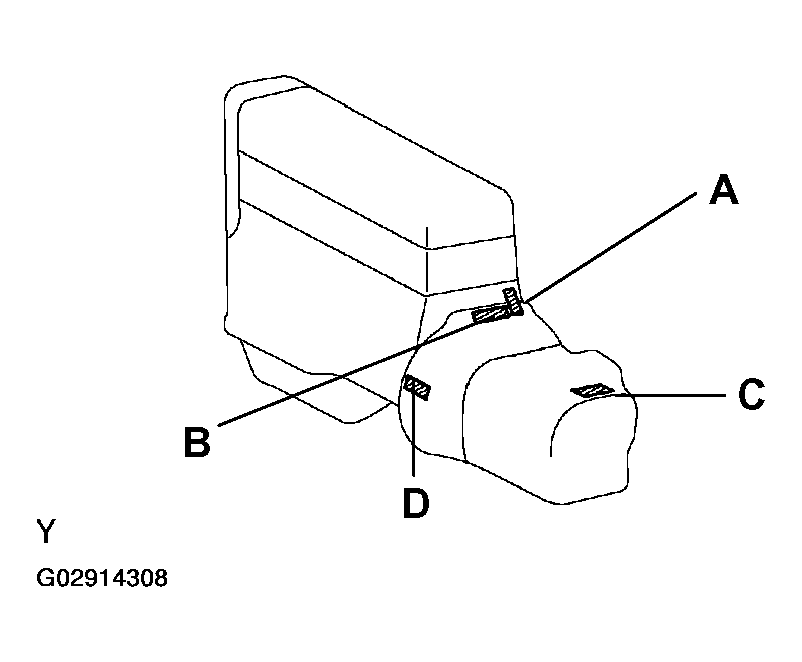

- ENGINE SERIAL NUMBER AND TRANSAXLE SERIAL NUMBER
- The engine serial number is stamped on the cylinder block of the engine, and the transaxle serial number is stamped on the housing, as shown in
Fig 2.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
A: 1ZZ-FE, 2ZZ-GE
B: C59, C60
C: A246E
D: U341F
- The engine serial number is stamped on the cylinder block of the engine, and the transaxle serial number is stamped on the housing, as shown in
Fig 2.
