Power Switch: Replacement

HINT:

• The installation procedures are the removal procedures in reverse order. However, only installation procedures requiring additional information are included.
• A bolt without a torque specification is shown in the standard bolt table (see SPECIFIED TORQUE FOR STANDARD BOLTS ).

1. DISCONNECT BATTERY NEGATIVE TERMINAL
2. REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSY UPPER (See  INSTRUMENT PANEL SUB-ASSY  )
3. REMOVE POWER SWITCH
   1. Disconnect the connector.
   2. Disengage the 2 clips and remove the power switch.
4. CONNECT BATTERY NEGATIVE TERMINAL
   NOTE: When disconnecting the negative (-) battery terminal, initialize the following systems after the terminal is reconnected.
5. SYSTEM INITIALIZE

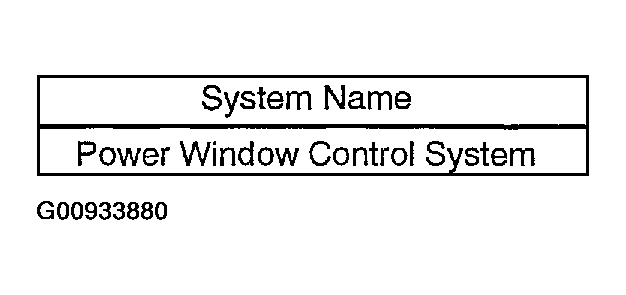

   Fig 1: System Initialize Table

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
