Power Mirror Control System: Inspection

1. Press L on the left/right adjustment switch. Measure the resistance between the mirror switch terminals.

   Standard (Left side):

   TERMINAL CONNECTION AND SPECIFIED CONDITION CHART



   Terminal Connection	Switch Condition	Specified Condition
   4 - 8 6 - 7	UP	Below 1 Ω
   4 - 7 6 - 8	DOWN	Below 1 Ω
   5 - 8 6 - 7	LEFT	Below 1 Ω
   5 - 7 6 - 8	RIGHT	Below 1 Ω

   If the result is not as specified, replace the switch assy.

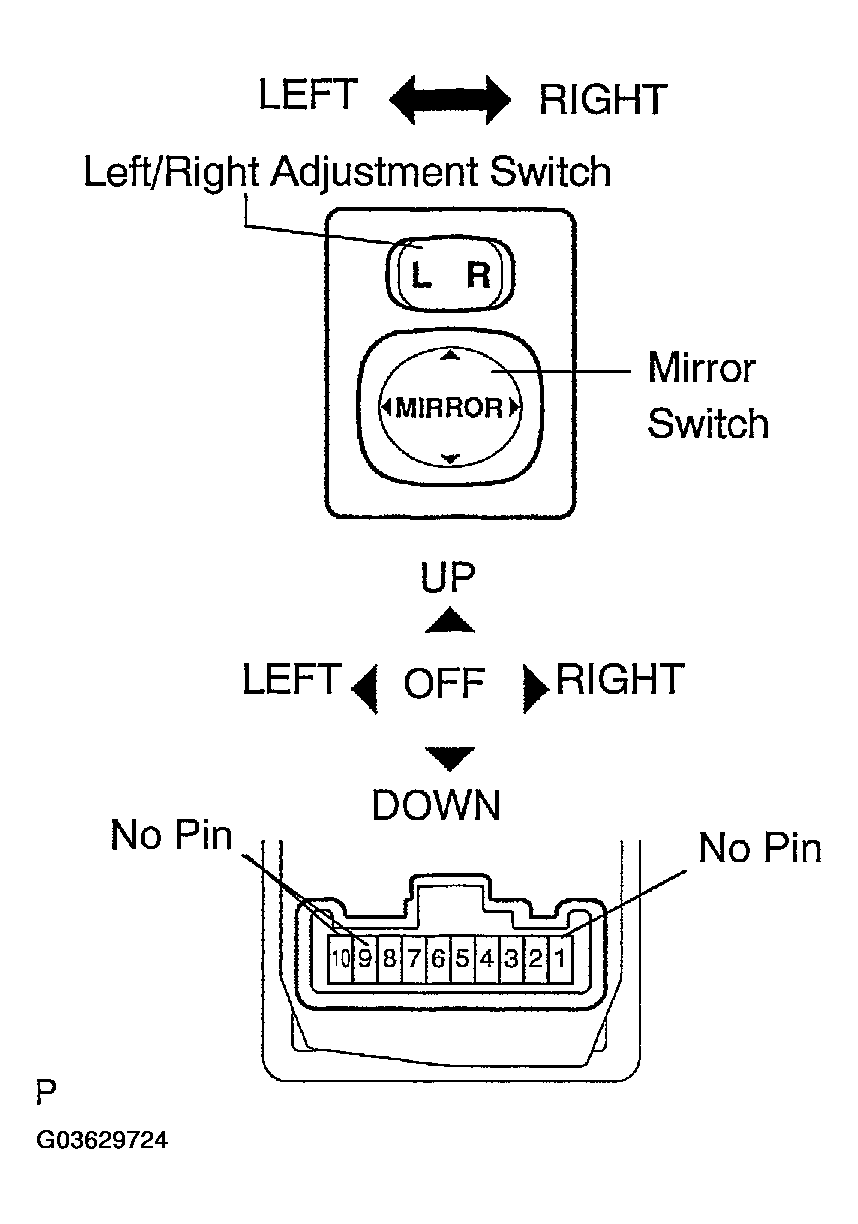

   Fig 1: Identifying Outer Mirror Switch Assy

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Press R on the left/right adjustment switch. Measure the resistance between the mirror switch terminals.

   Standard (Right side):

   TERMINAL CONNECTION AND SPECIFIED CONDITION CHART



   Terminal Connection	Switch Condition	Specified Condition
   3 - 8 6 - 7	UP	Below 1 Ω
   3 - 7 6 - 8	DOWN	Below 1 Ω
   2 - 8 6 - 7	LEFT	Below 1 Ω
   2 - 7 6 - 8	RIGHT	Below 1 Ω

If the result is not as specified, replace the switch assy.

1. Disconnect the mirror connector.
2. Apply battery voltage to the mirror terminals and check operation of the mirror face, as shown in the table and illustration.

   OK:

   MEASUREMENT CONDITION AND MIRROR OPERATION CHART



   Measurement Condition	Mirror Operation
   Battery positive (+) --> Terminal 5 (MV) Battery negative (-) --> Terminal 4 (M+)	Turns upward (A)
   Battery positive (+) --> Terminal4 (M+) Battery negative (-) --> Terminal 5 (MV)	Turns downward (B)
   Battery positive (+) --> Terminal 3 (MH) Battery negative (-) --> Terminal 4 (M+)	Turns left (C)
   Battery positive (+) --> Terminal 4 (M+) Battery negative (-) --> Terminal 3 (MH)	Turns right (D)

If the result is not as specified, replace the mirror assy.

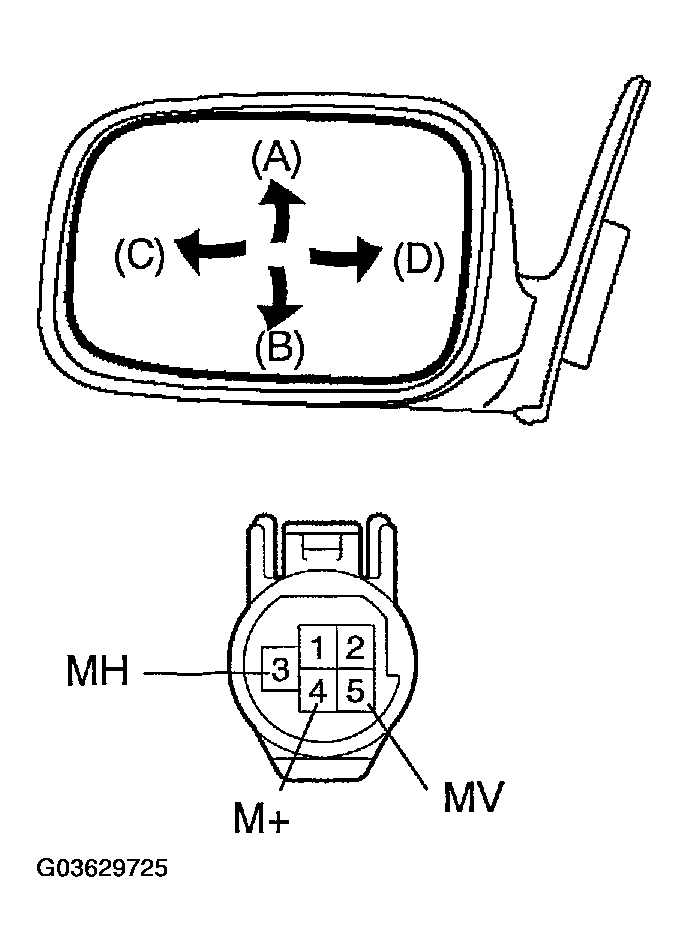

Fig 2: Identifying Outer Rear View Mirror Assy LH

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the mirror connector.
2. Apply battery voltage to the mirror terminals and check operation of the mirror face, as shown in the table and illustration.

   OK:

   MEASUREMENT CONDITION AND MIRROR OPERATION CHART



   Measurement Condition	Mirror Operation
   Battery positive (+) --> Terminal 5 (MV) Battery negative (-) --> Terminal 4 (M+)	Turns upward (A)
   Battery positive (+) --> Terminal 4 (M+) Battery negative (-) --> Terminal 5 (MV)	Turns downward (B)
   Battery positive (+) --> Terminal 3 (MH) Battery negative (-) --> Terminal 4 (M+)	Turns right (C)
   Battery positive (+) --> Terminal 4 (M+) Battery negative (-) --> Terminal 3 (MH)	Turns left (D)

If the result is not as specified, replace the mirror assy.

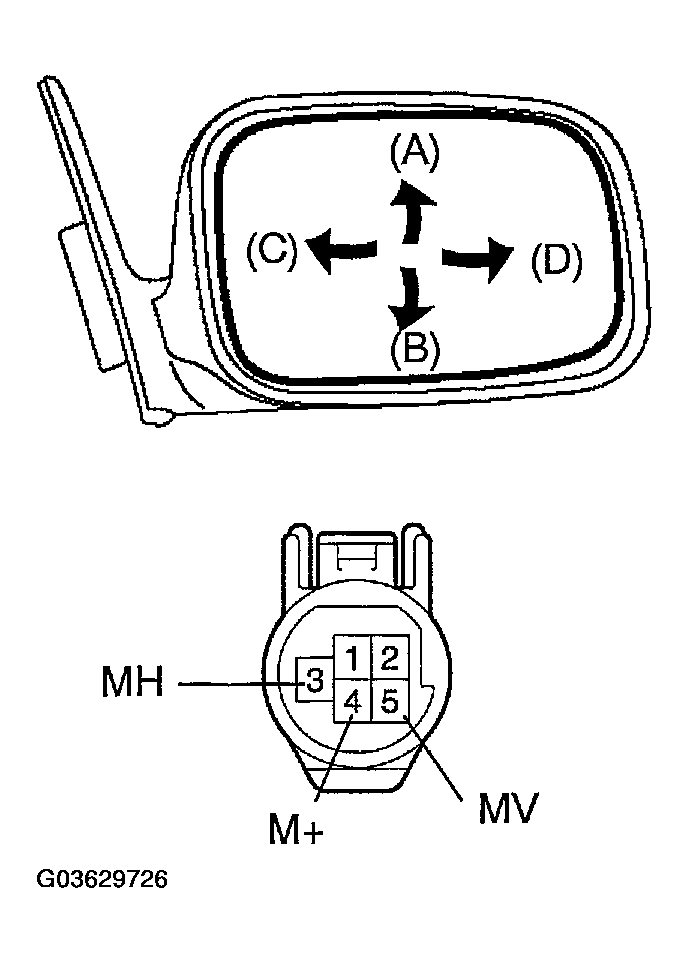

Fig 3: Identifying Outer Rear View Mirror Assy RH
