Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

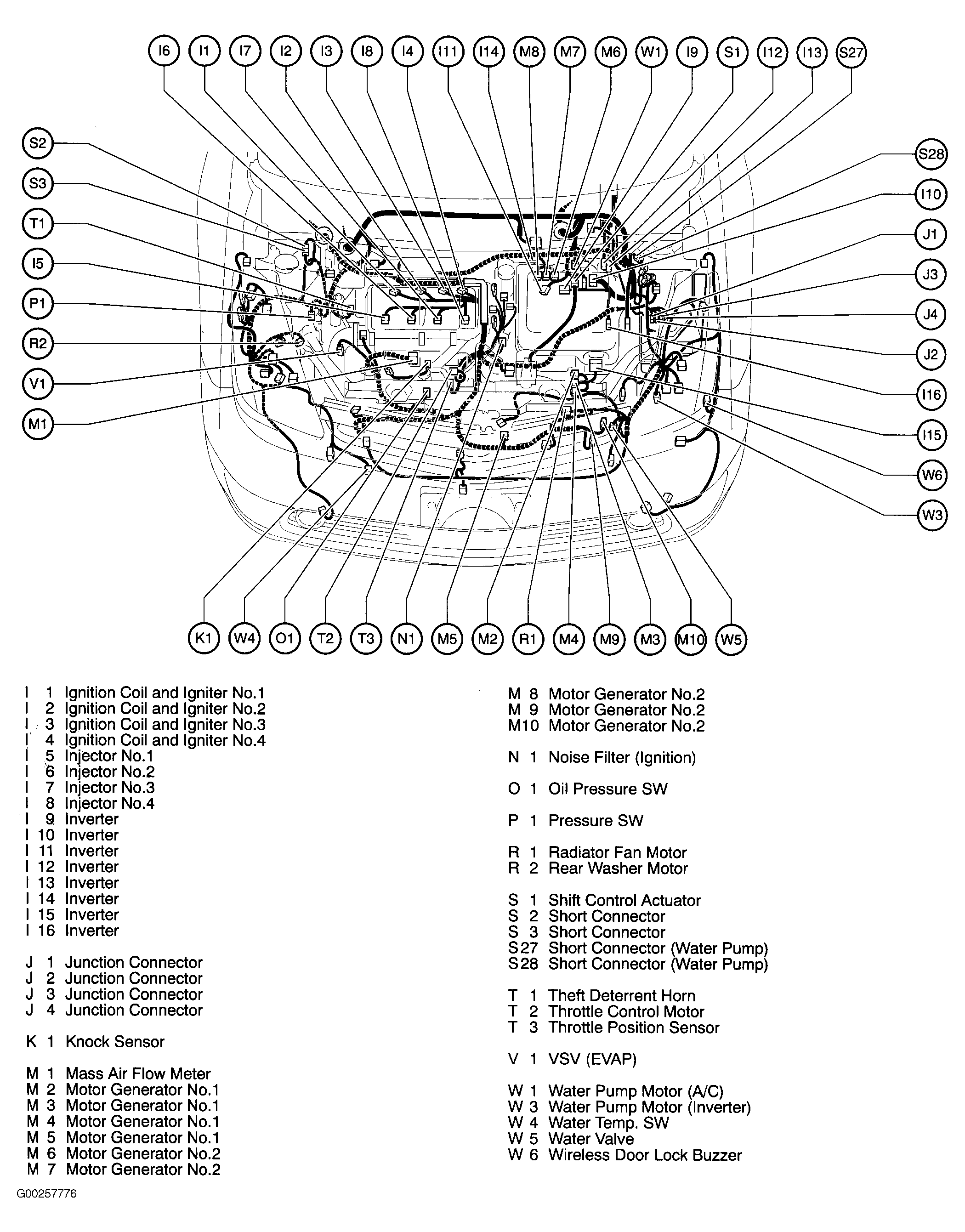

Fig 1: Engine Compartment

G00257776

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

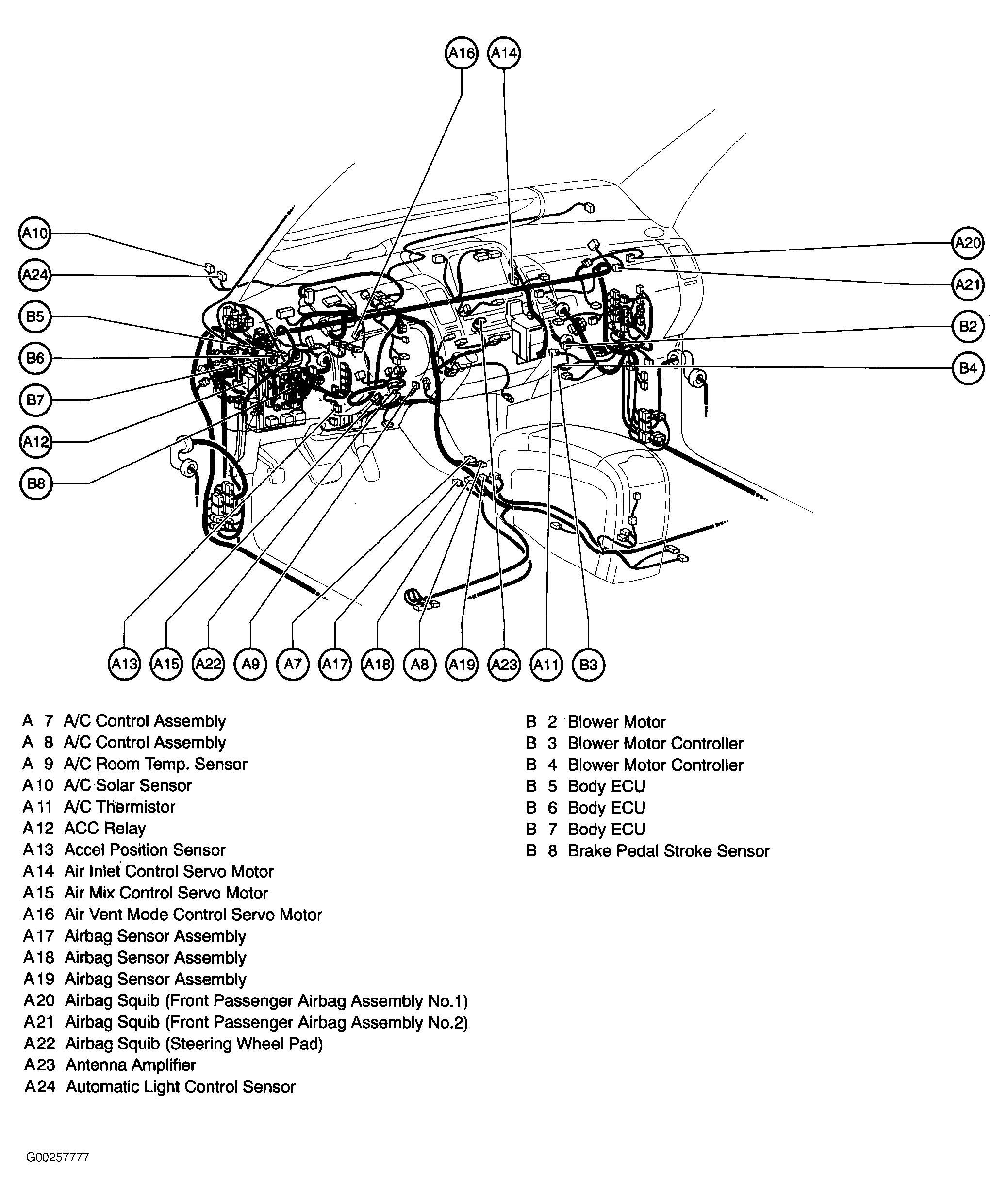

Fig 2: Dash

G00257777

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

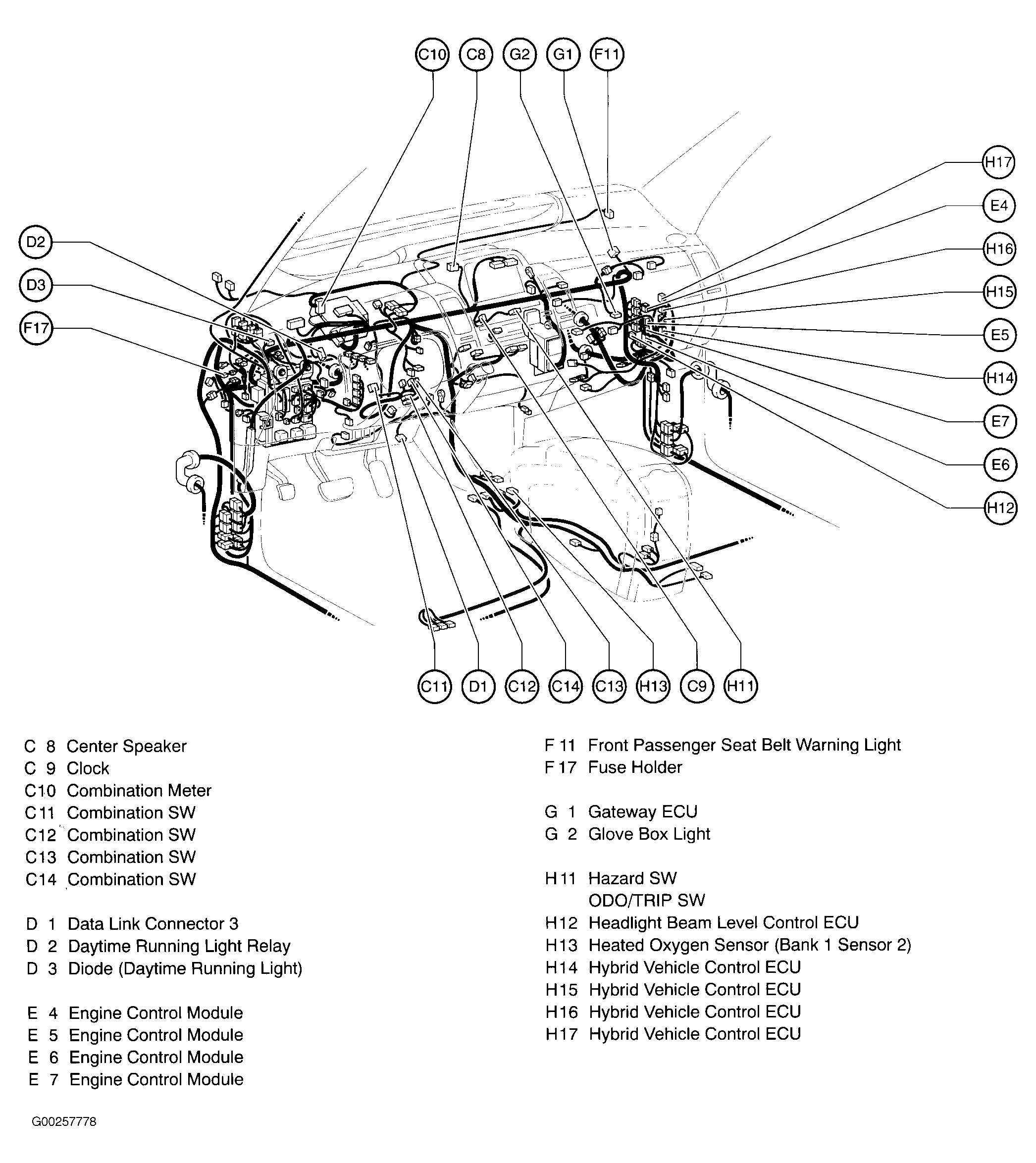

Fig 3: Dash

G00257778

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

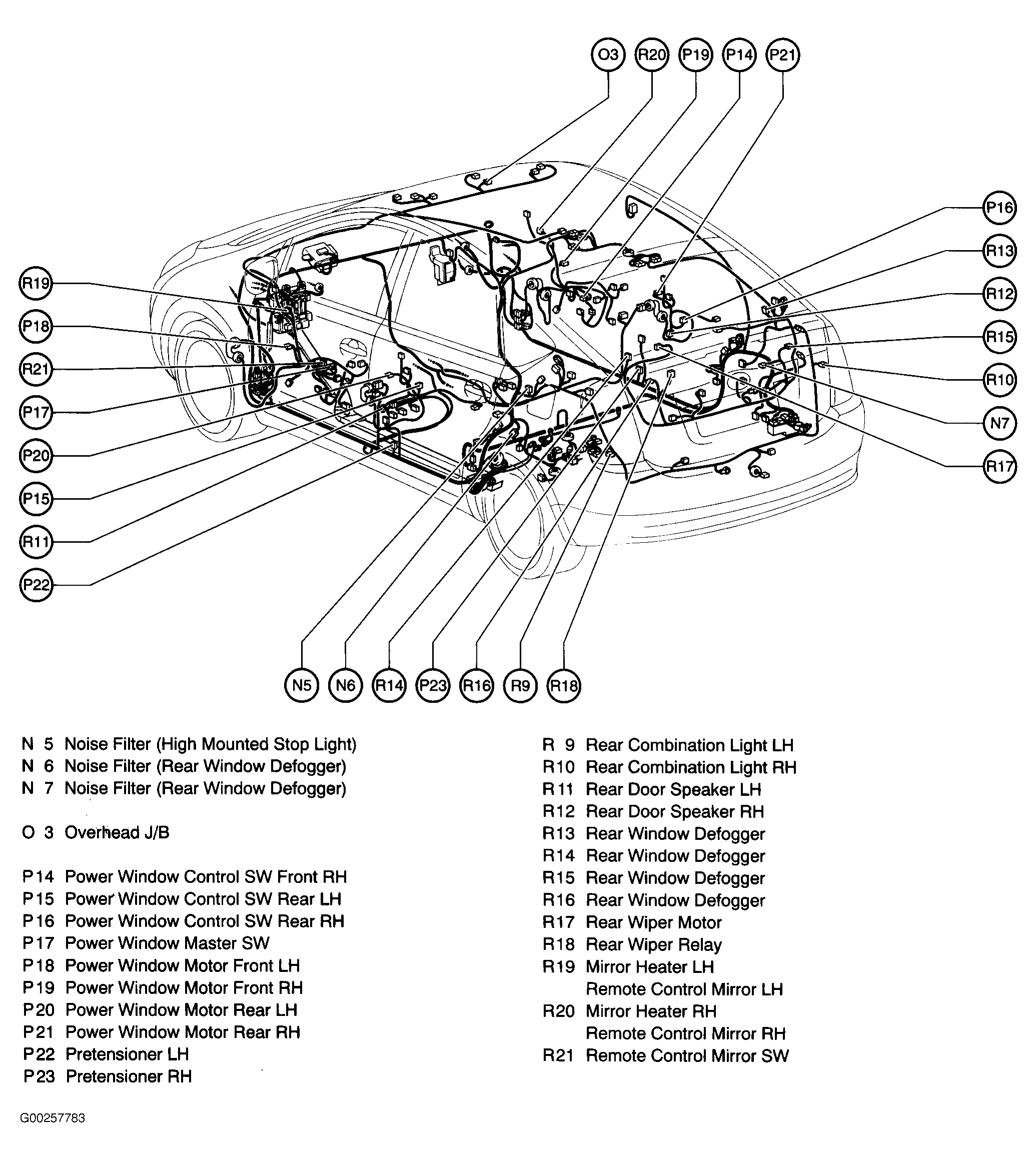

Fig 4: Vehicle Overview

G00257783

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Engine Compartment

G00257785

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Dash

G00262736

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

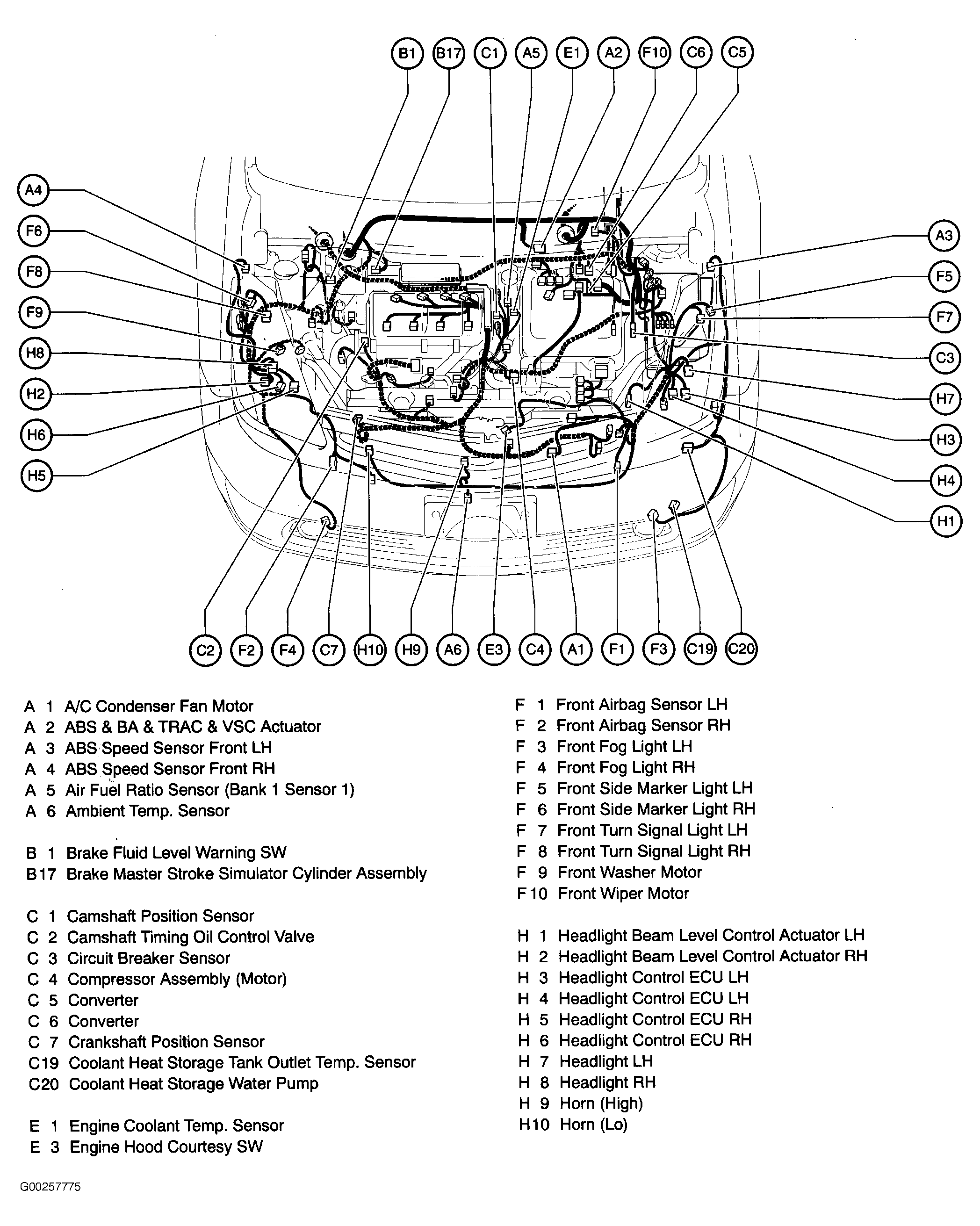

Fig 7: Engine Compartment

G00257775

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

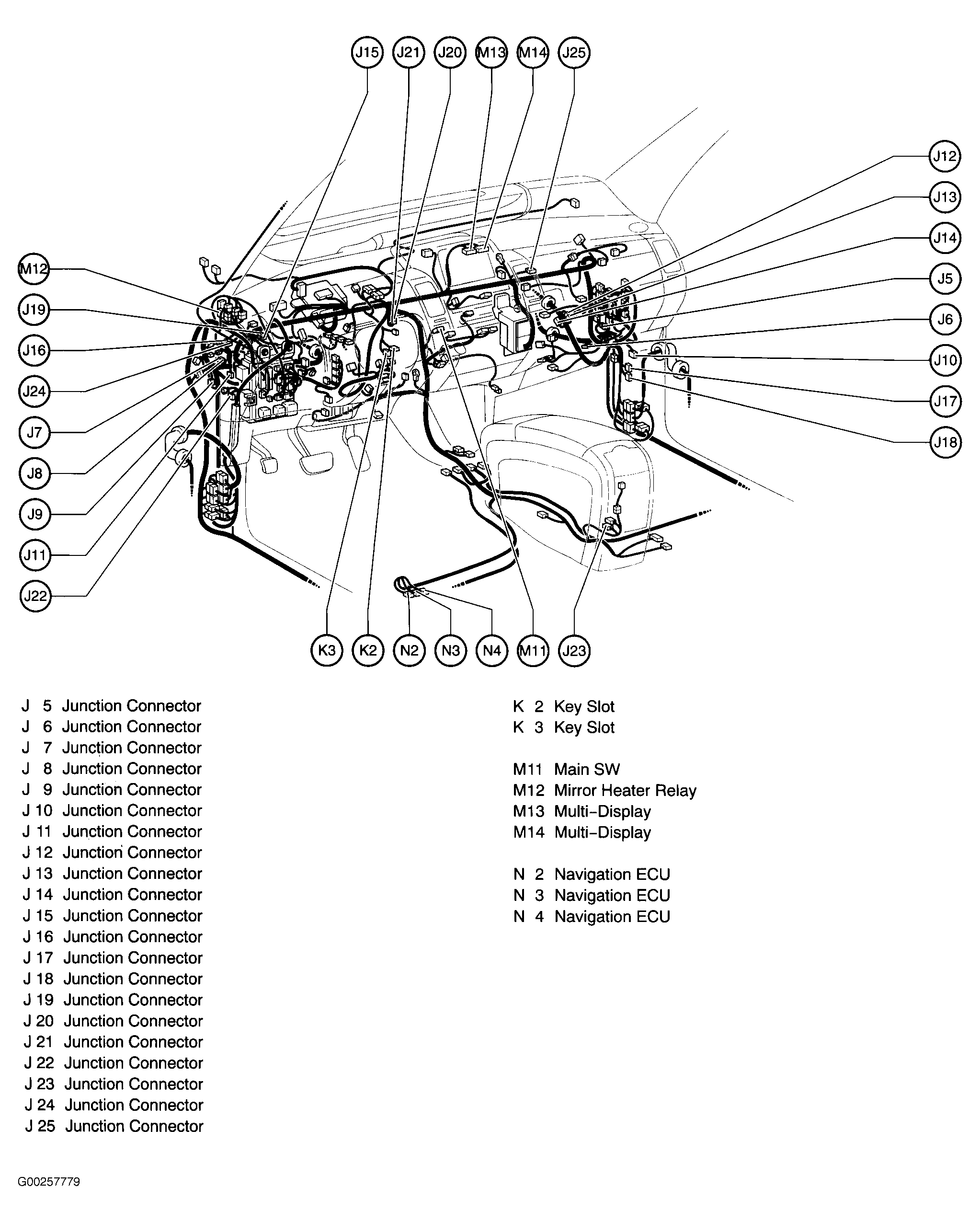

Fig 8: Dash

G00257779

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

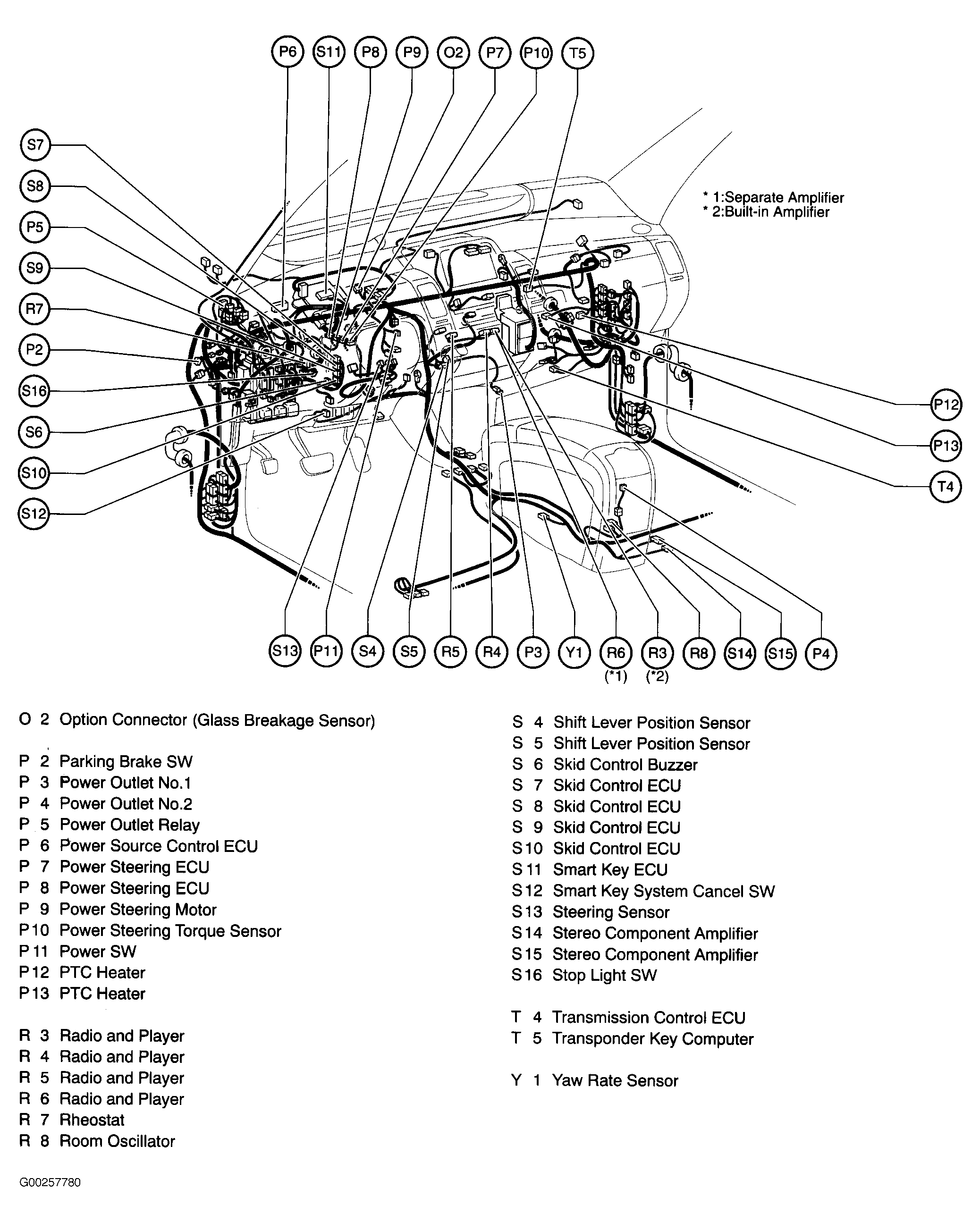

Fig 9: Dash

G00257780

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

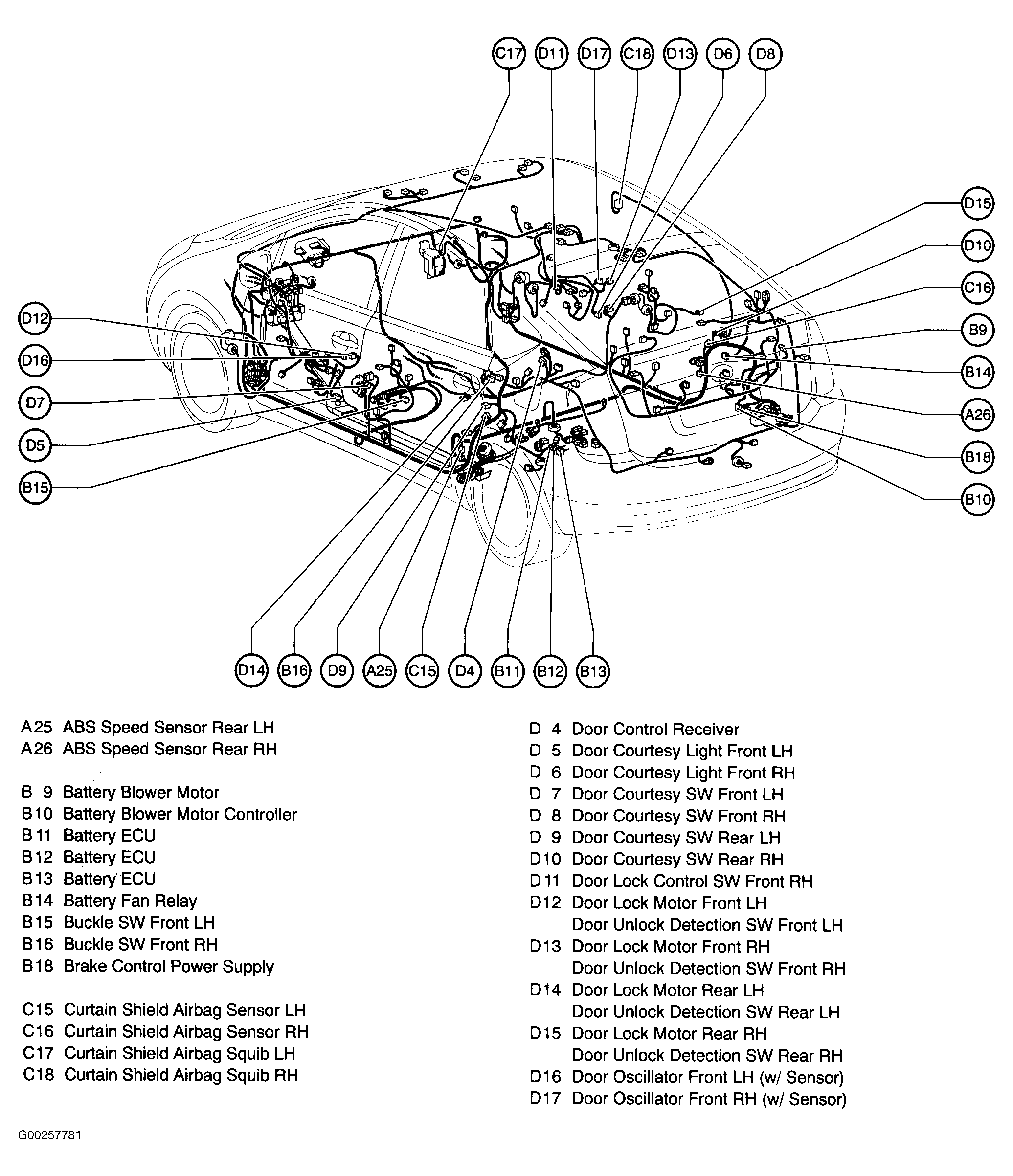

Fig 10: Vehicle Overview

G00257781

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

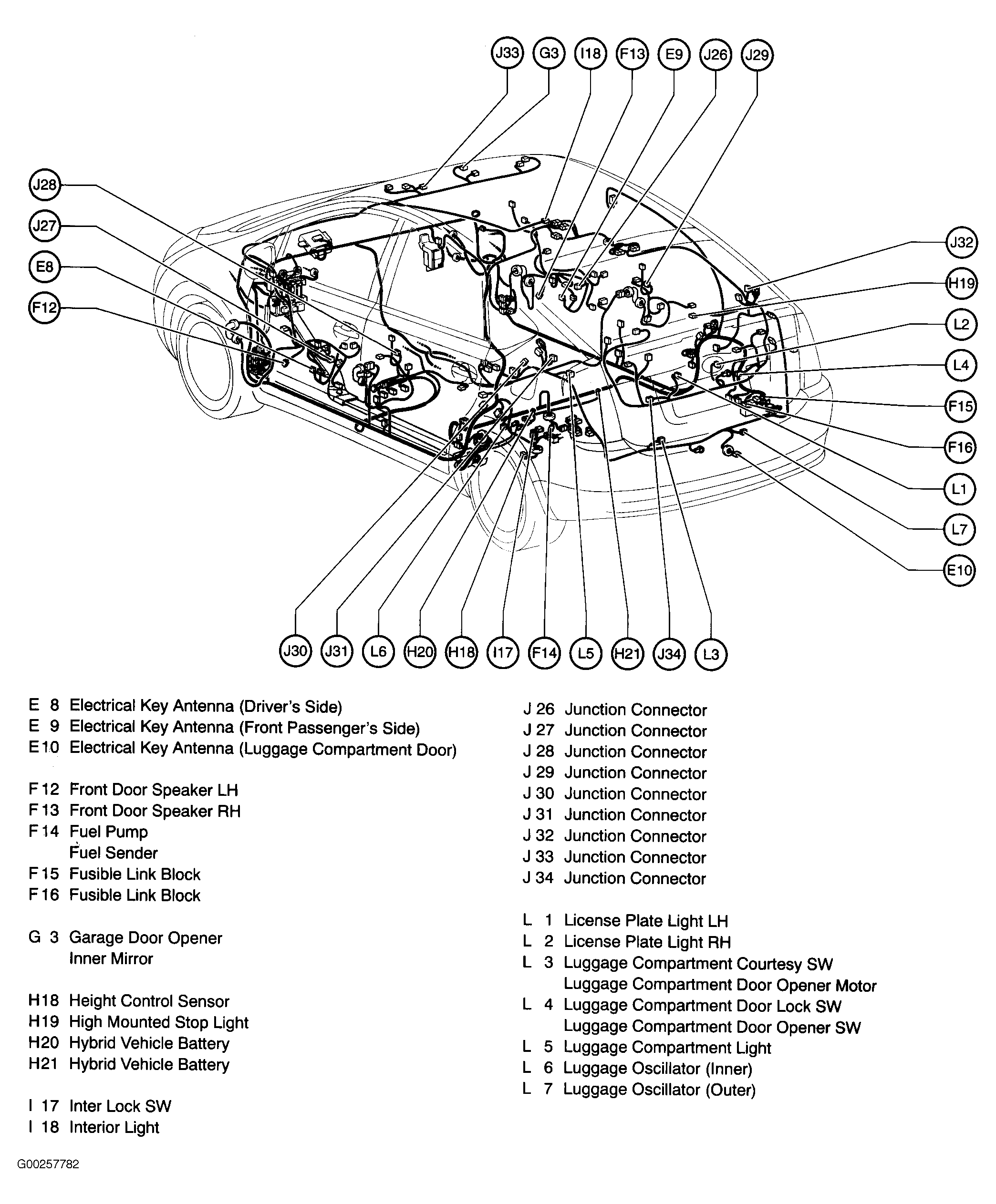

Fig 11: Vehicle Overview

G00257782

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

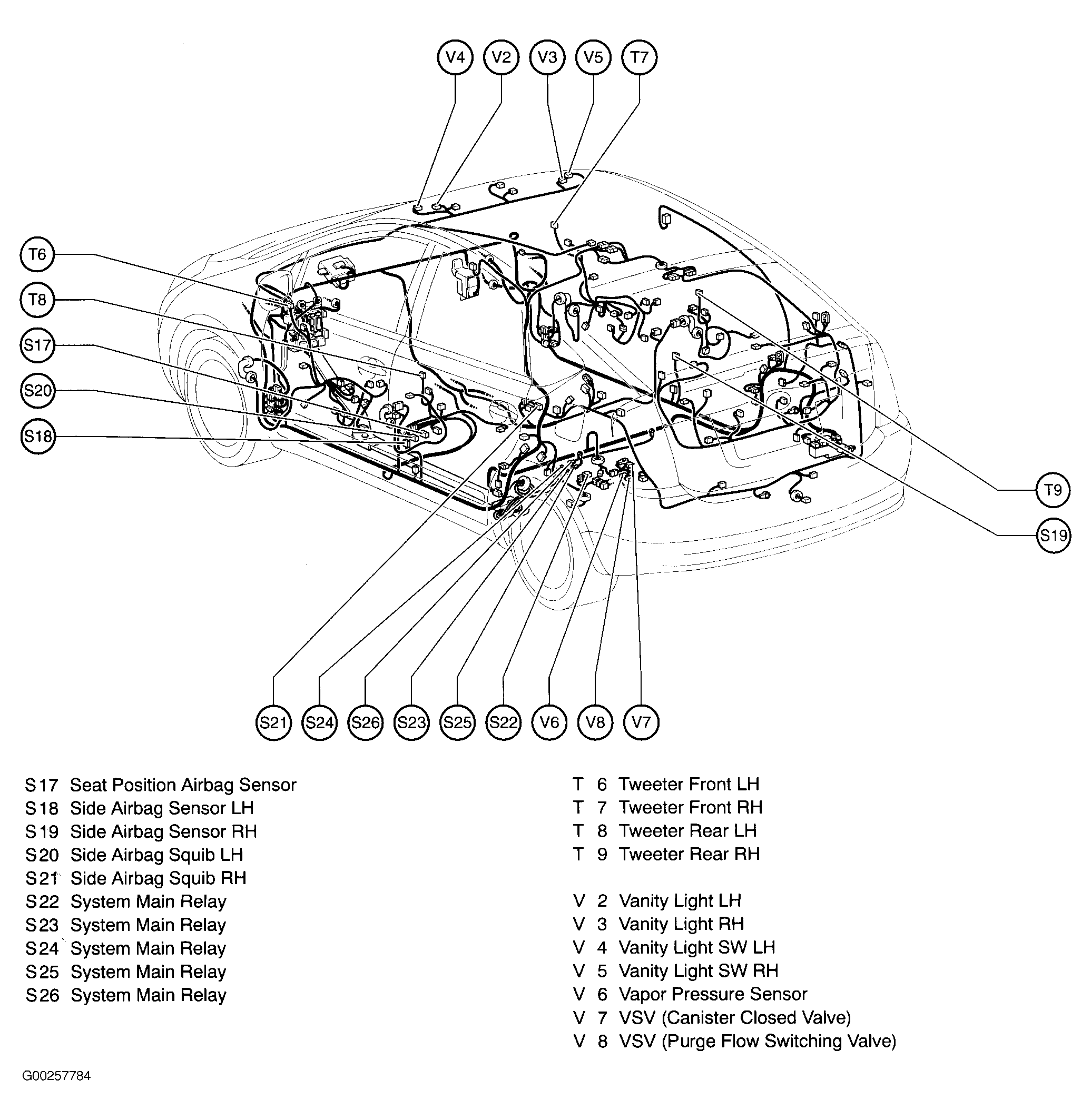

Fig 12: Vehicle Overview

G00257784

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: Dash

G00257786

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

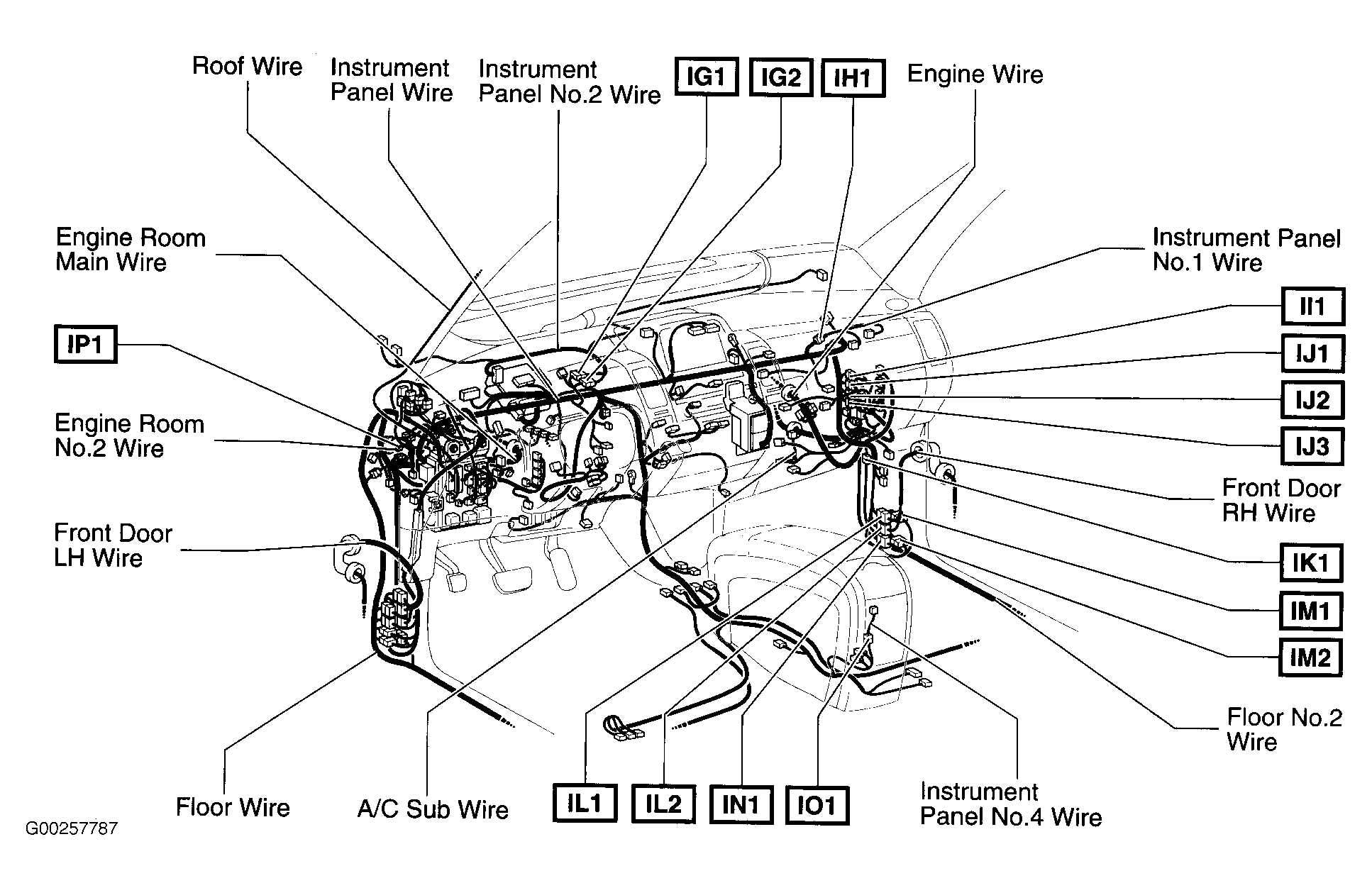

Fig 14: Dash

G00257787

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

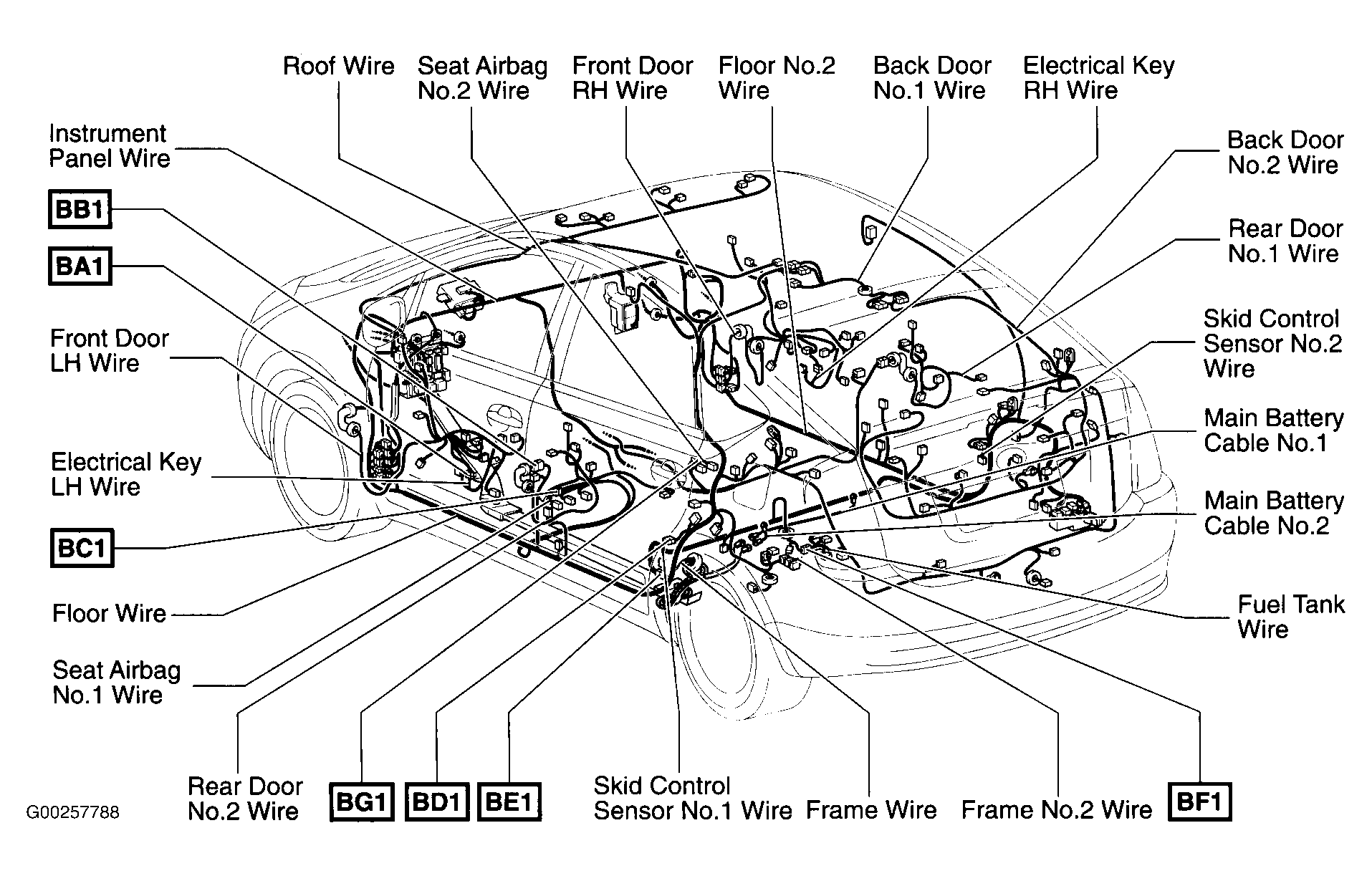

Fig 15: Vehicle Overview

G00257788

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 16: Vehicle Overview

G00257789

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

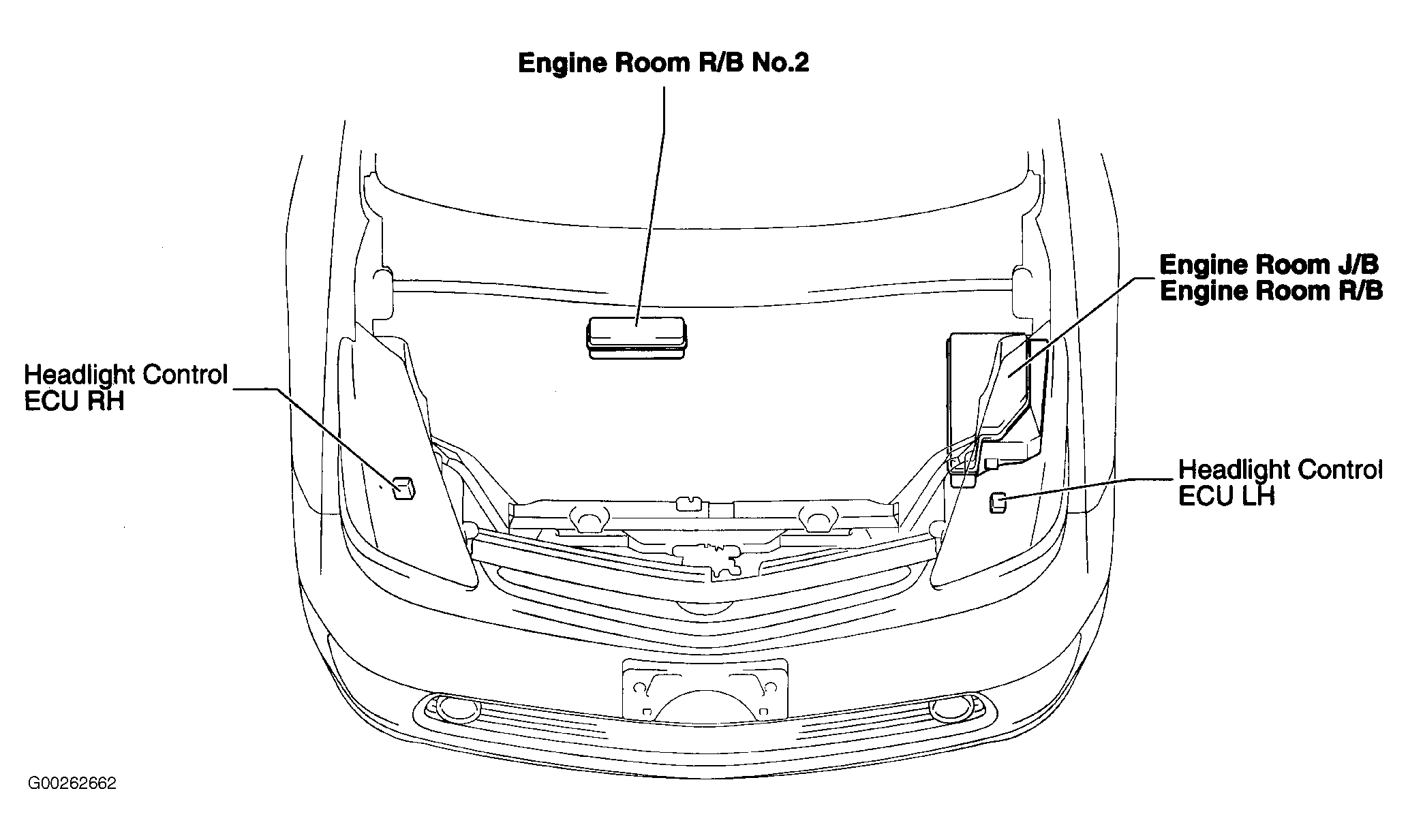

Fig 17: Engine Compartment

G00262662

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

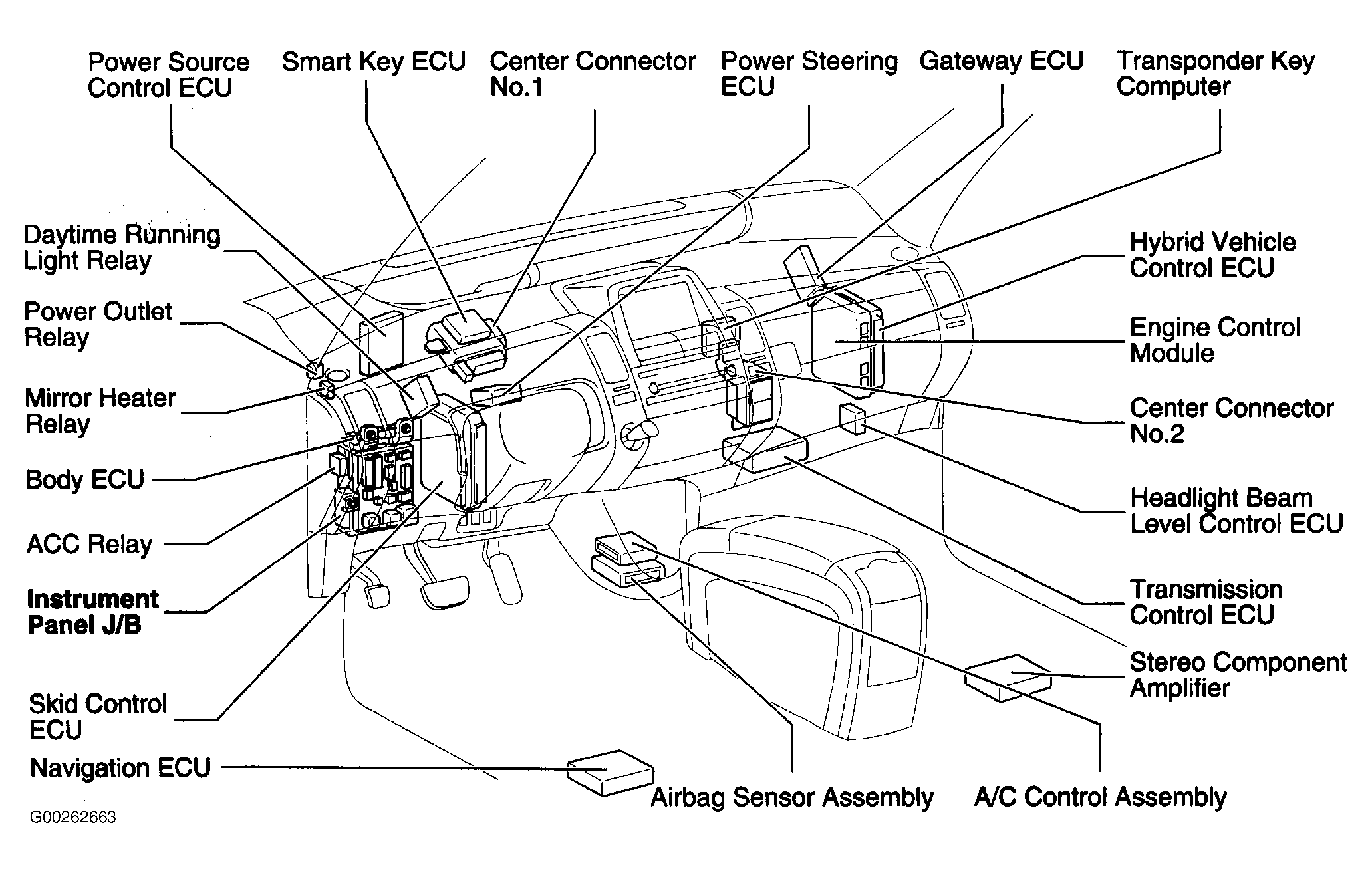

Fig 18: Dash

G00262663

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

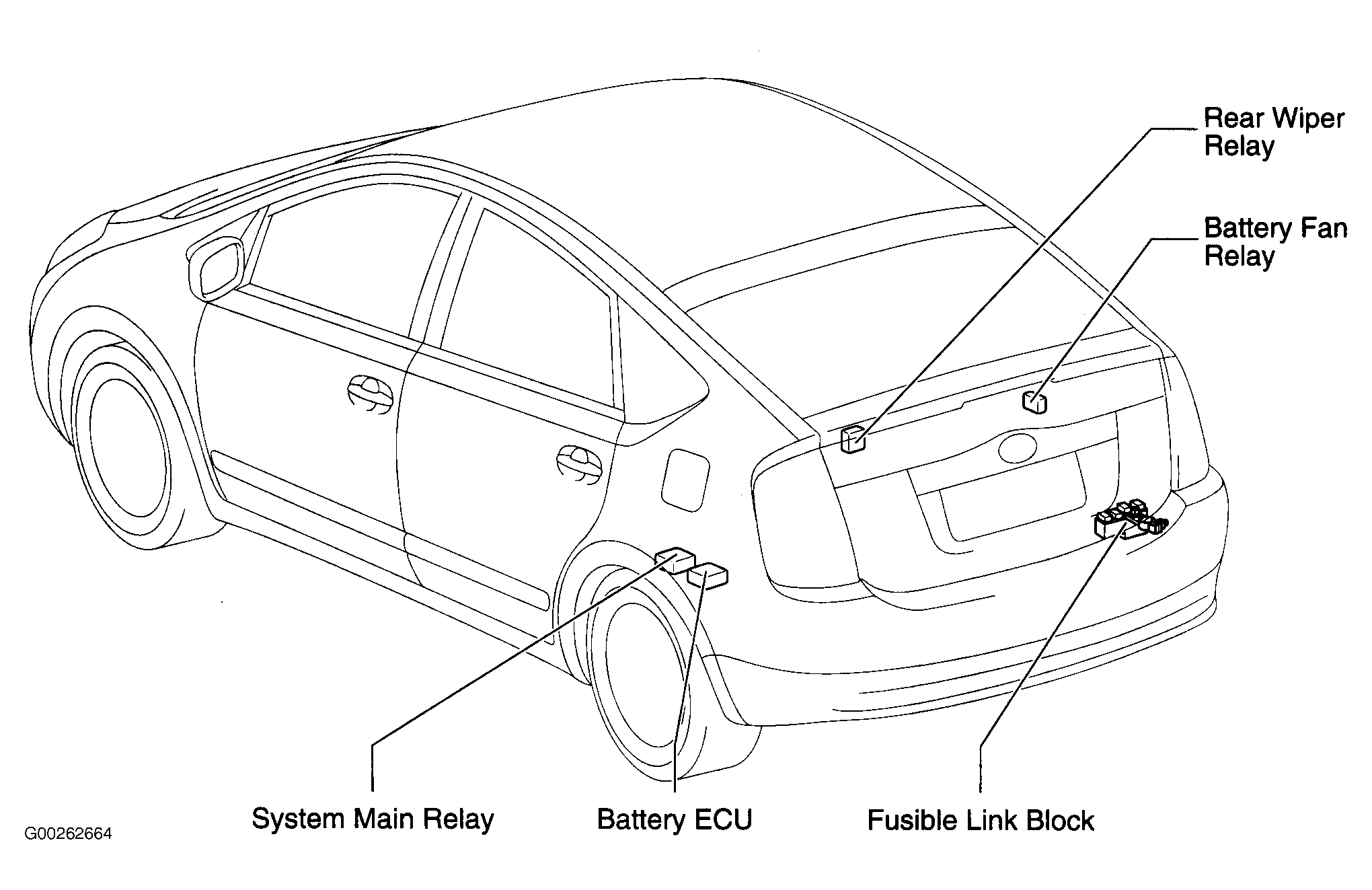

Fig 19: Rear Of Vehicle

G00262664

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

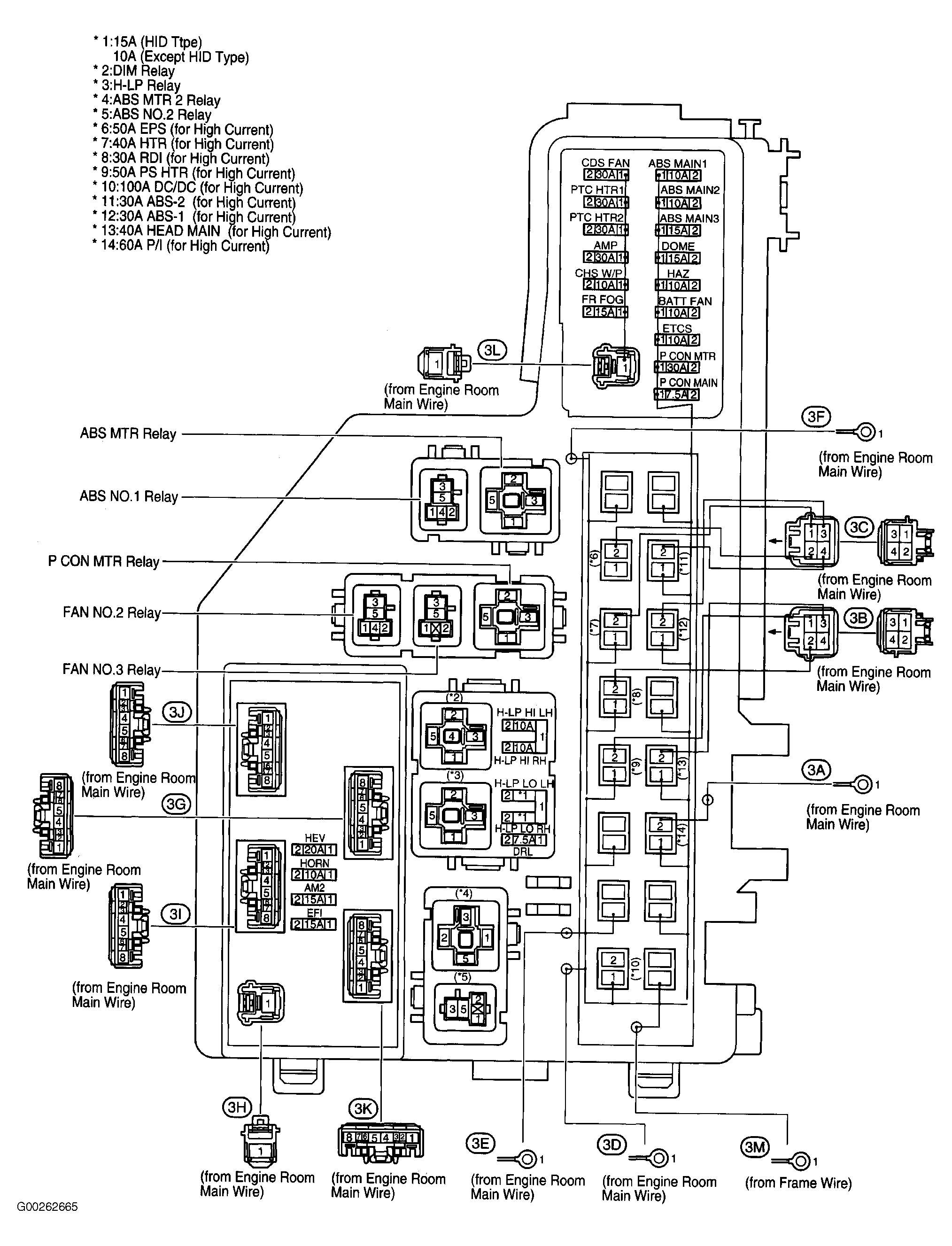

Fig 20: Engine Room J/B & R/B

G00262665

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

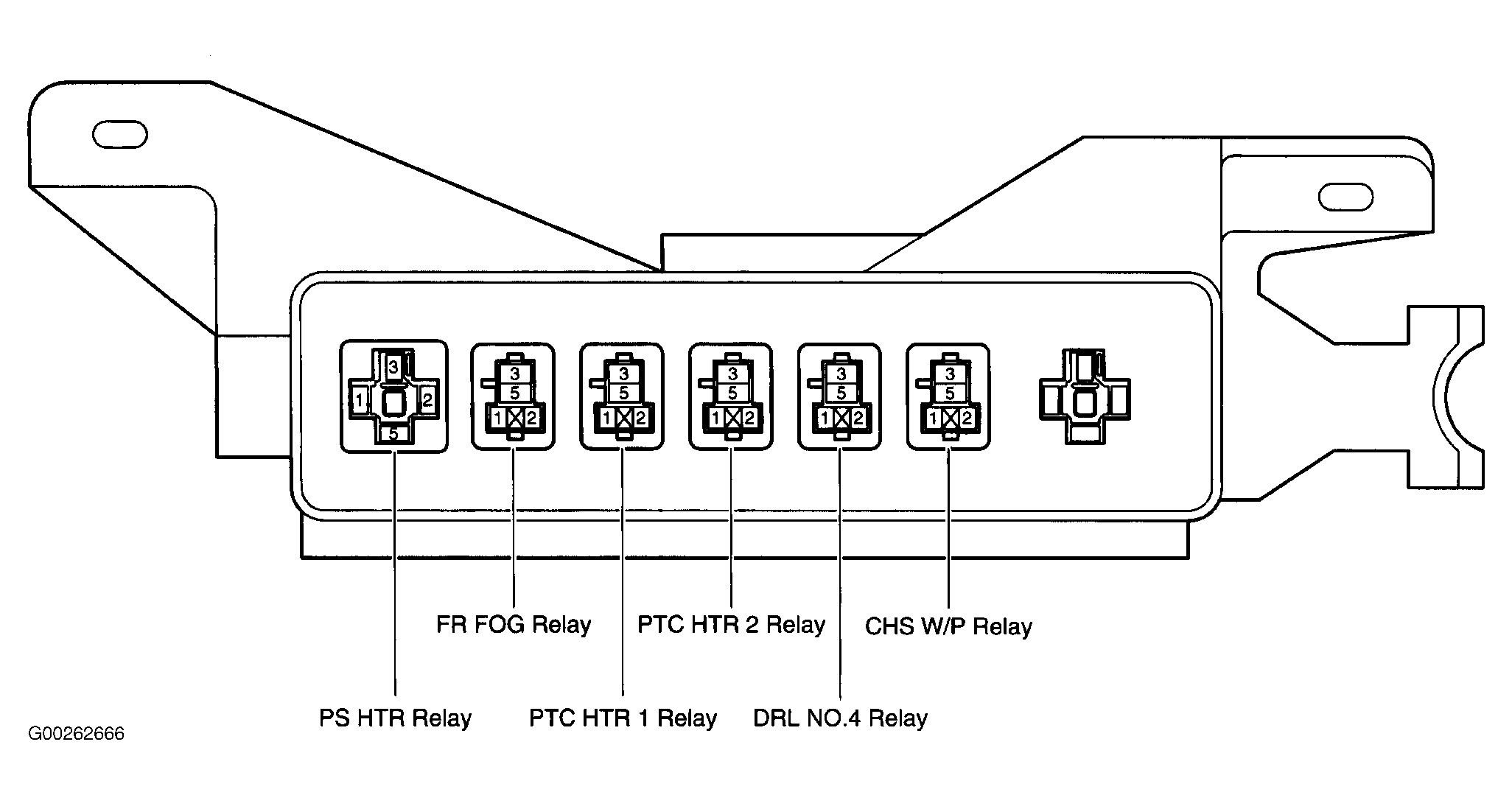

Fig 21: Engine Room R/B No. 2

G00262666

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 22: Driver Side J/B

G00262667

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

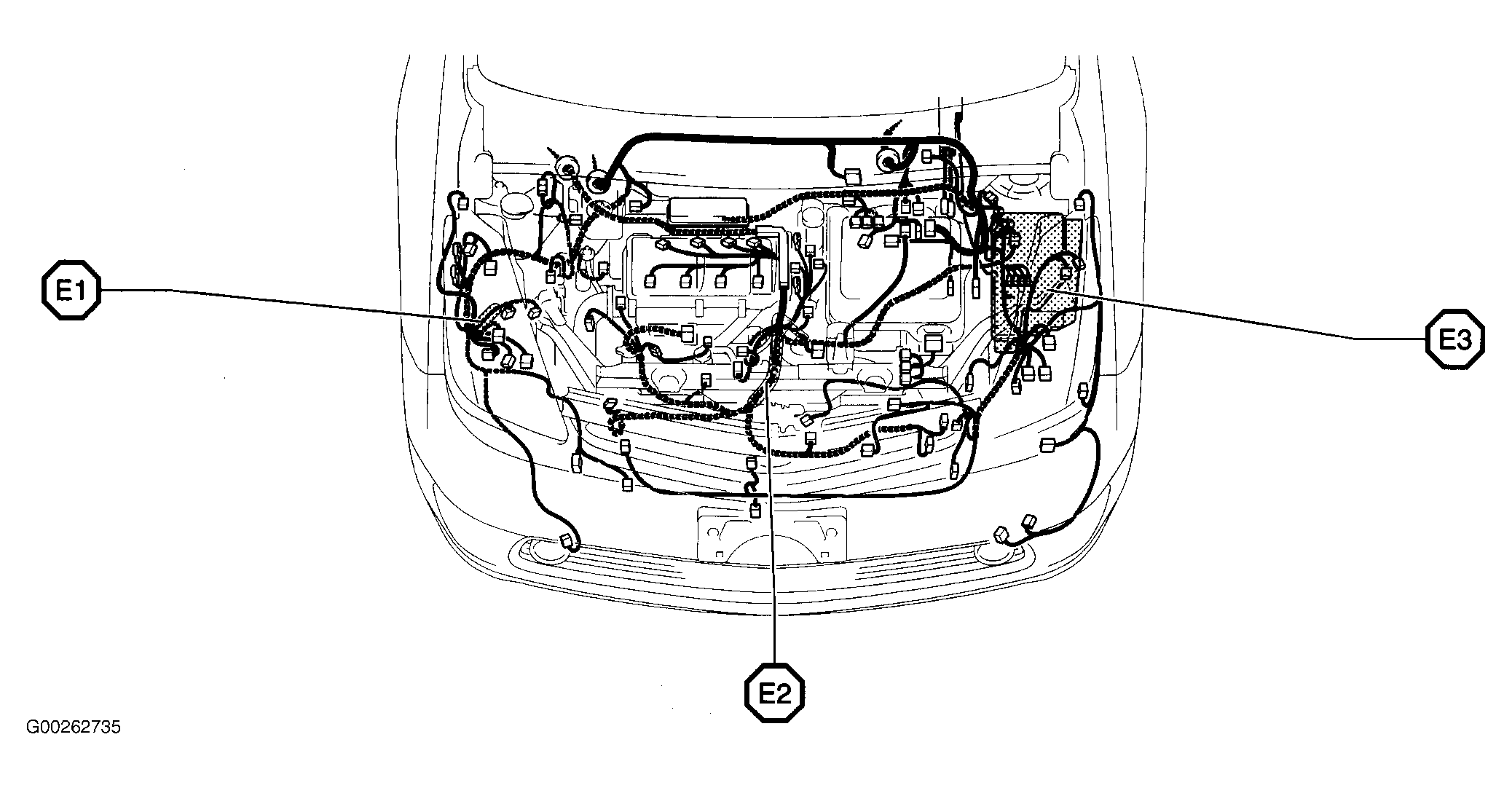

Fig 23: Engine Compartment

G00262735

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

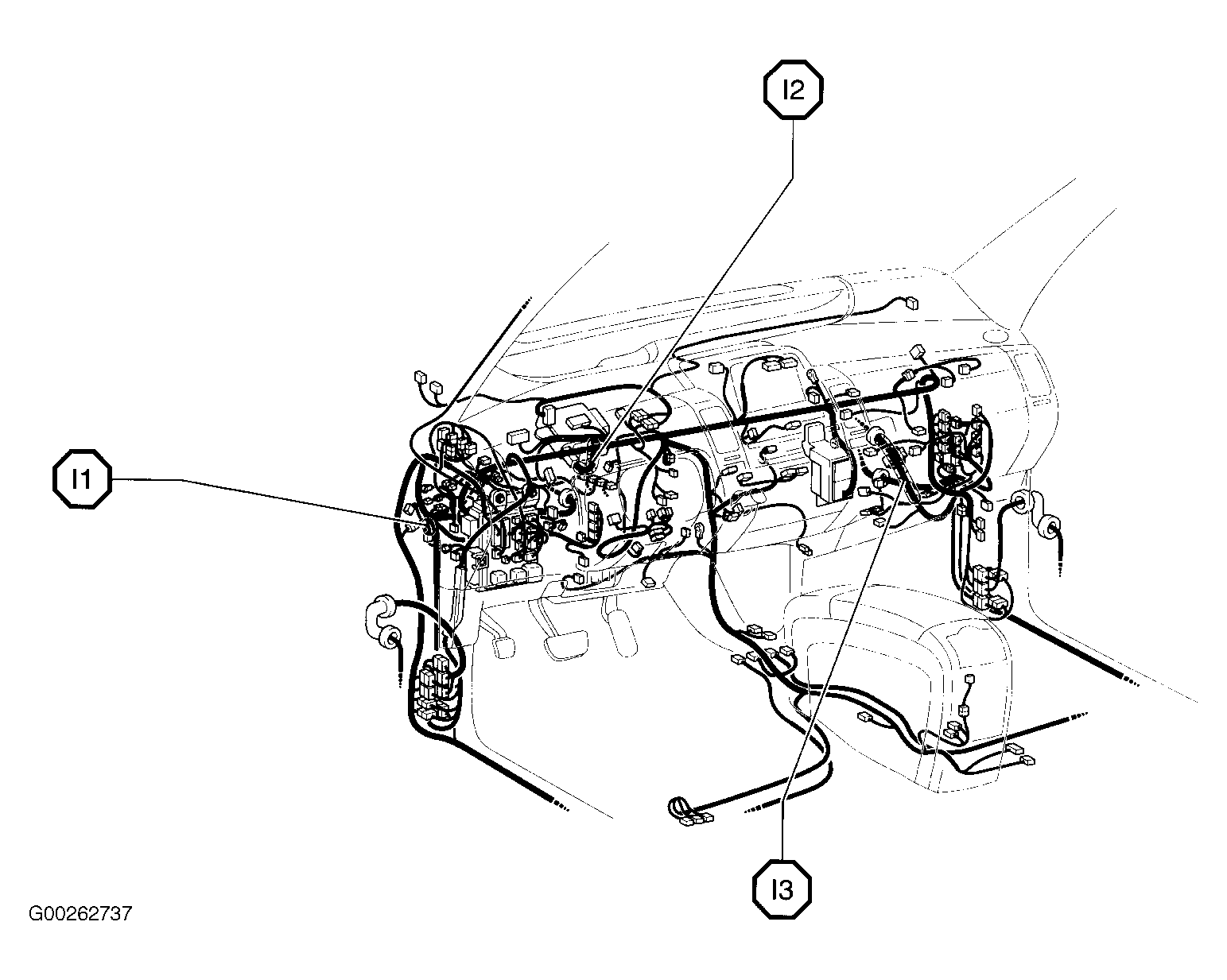

Fig 24: Dash

G00262737

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 25: Rear Of Vehicle

G00262738

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

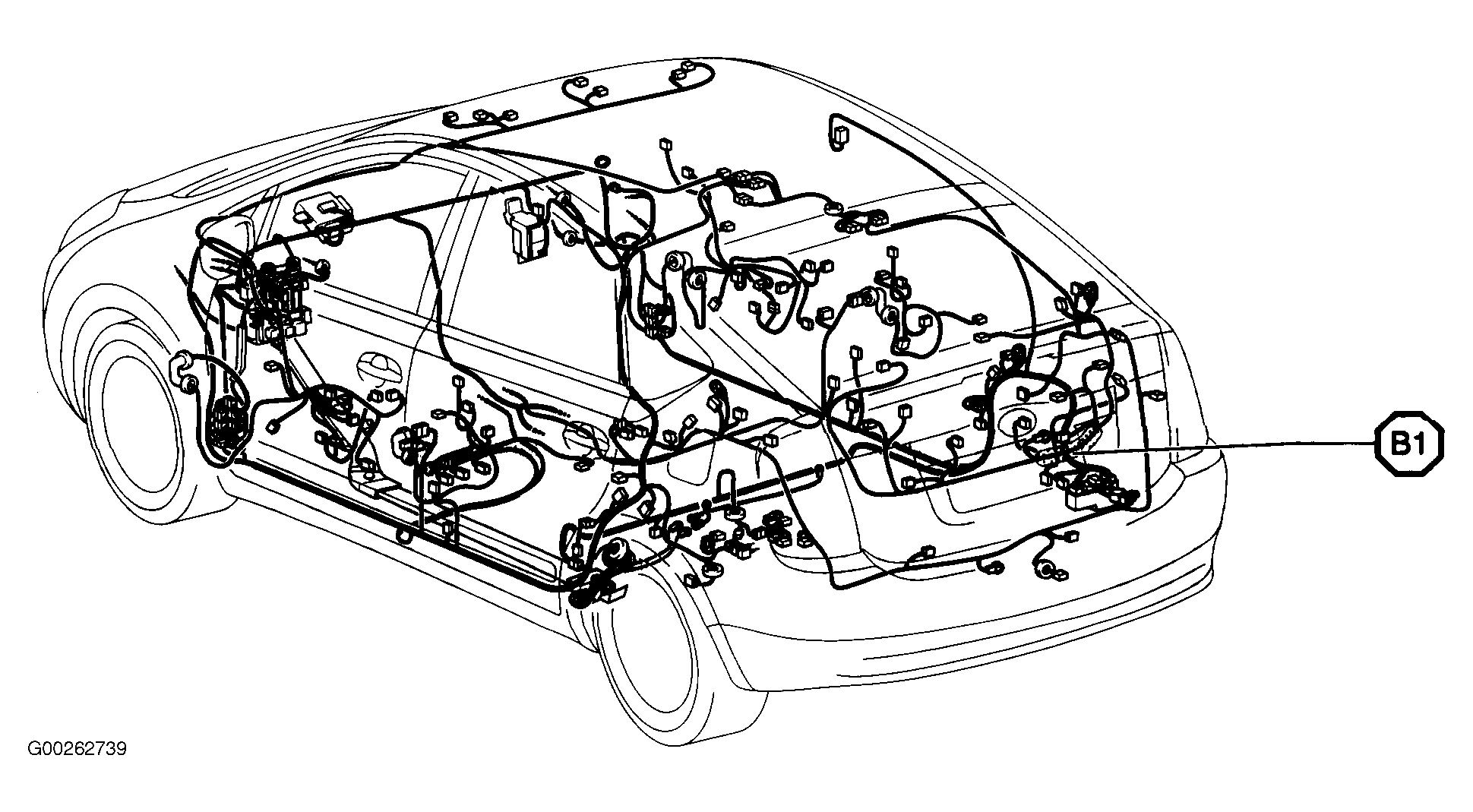

Fig 26: Rear Of Vehicle

G00262739

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
