Electrical Component Locator: Splices

SPLICES LOCATION

Component Location
B1 Right rear of vehicle. See Figure.

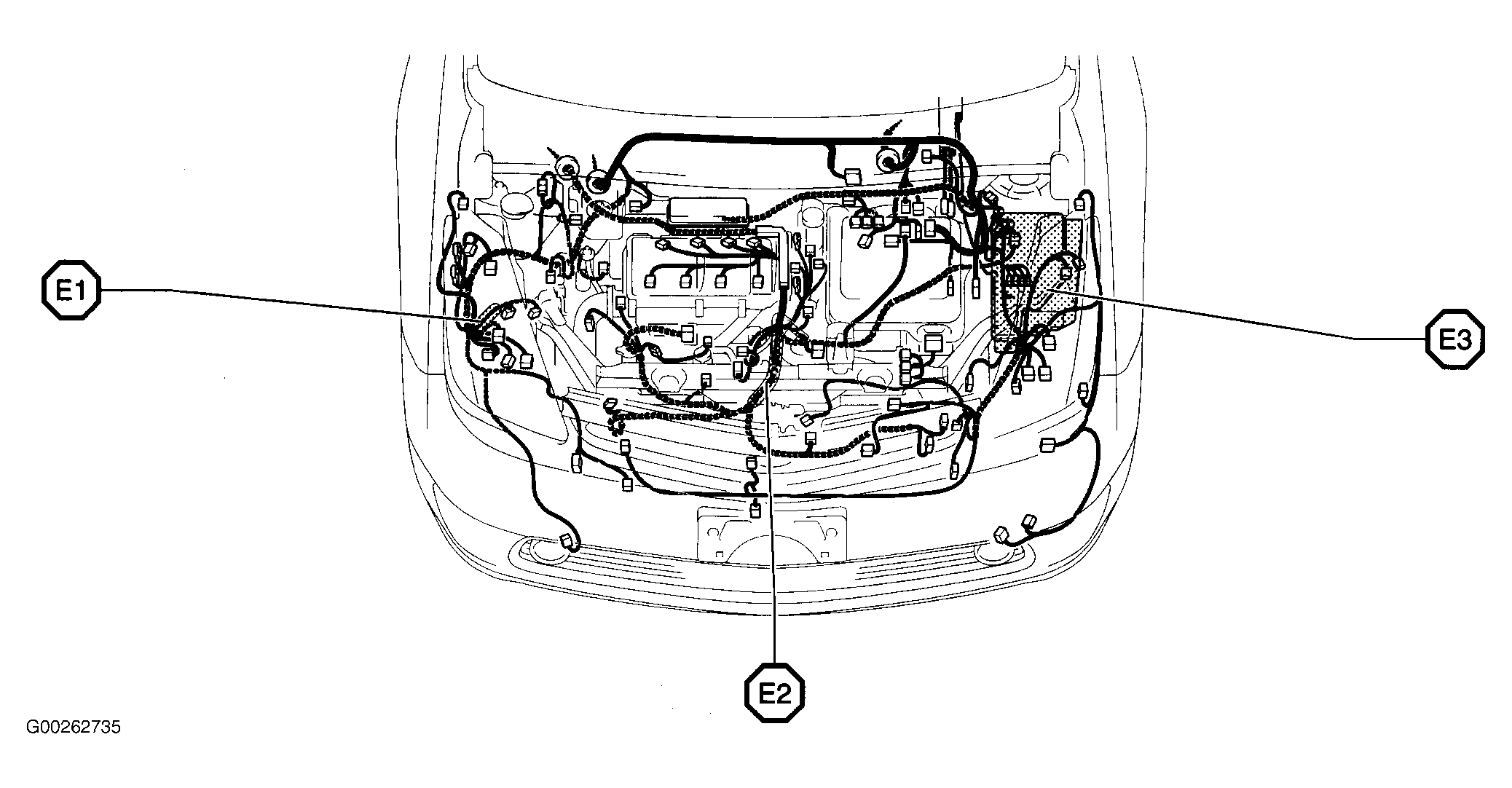

E1 Right side of engine compartment. See Figure.
E2 Front center of engine compartment. See Figure.
E3 Left side of engine compartment. See Figure.

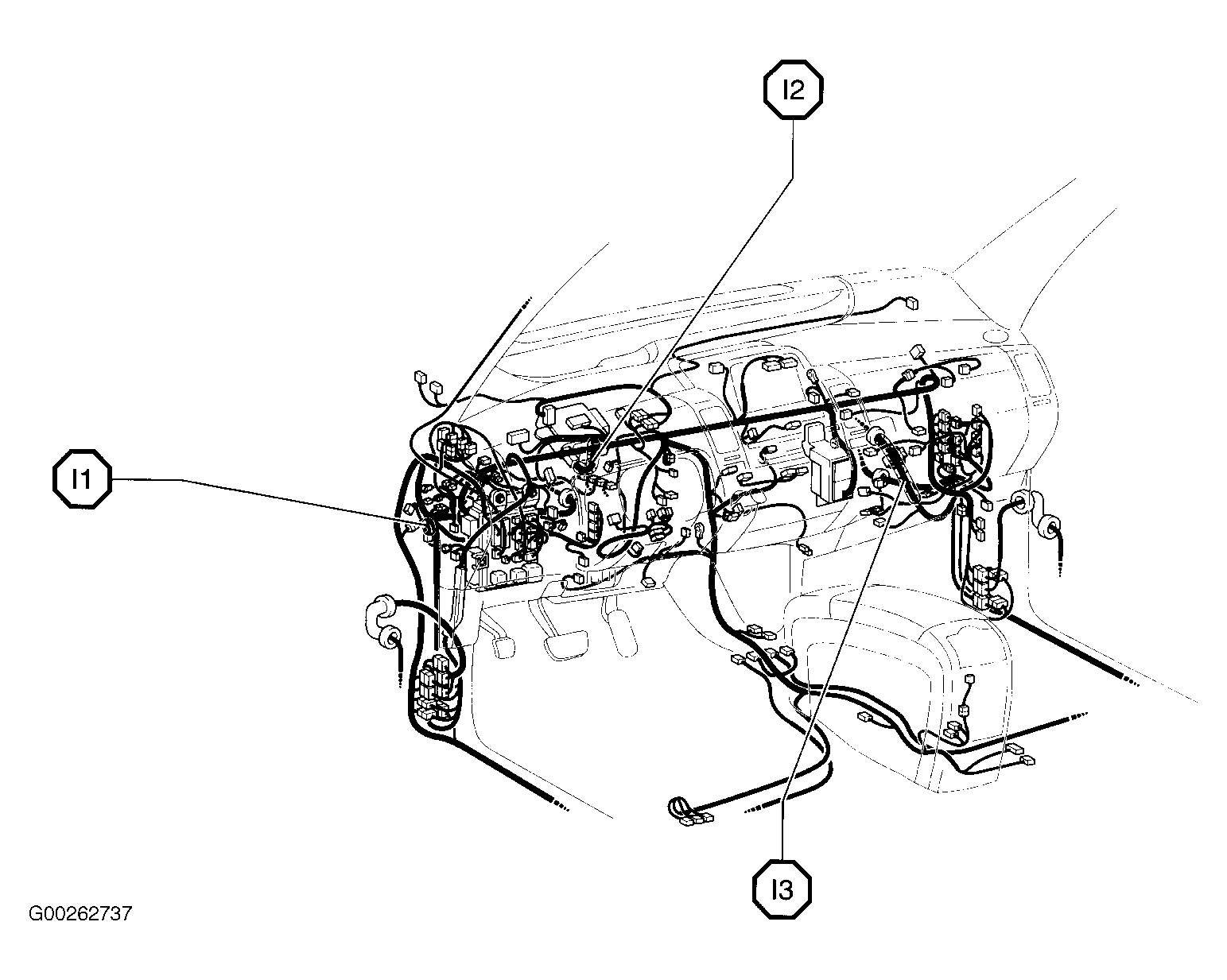

I1 In dash harness, behind left side of dash. See Figure.
I2 In dash harness, behind left side of dash. See Figure.
I3 In dash harness, right end of dash. See Figure.
