Fuel System: Location

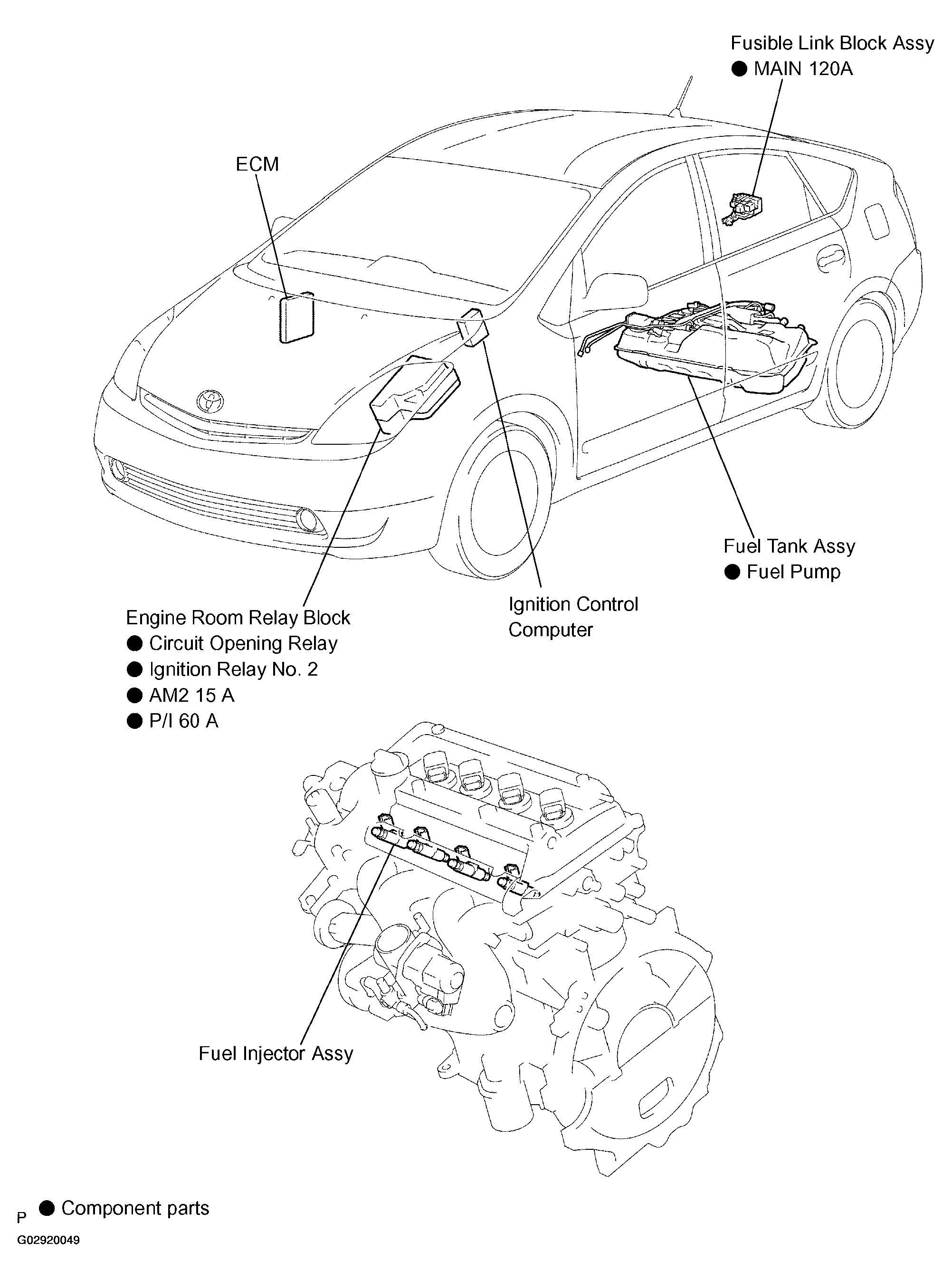

Fig 1: Fuel System Components Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
