Ignition System (1NZ-FXE): Location

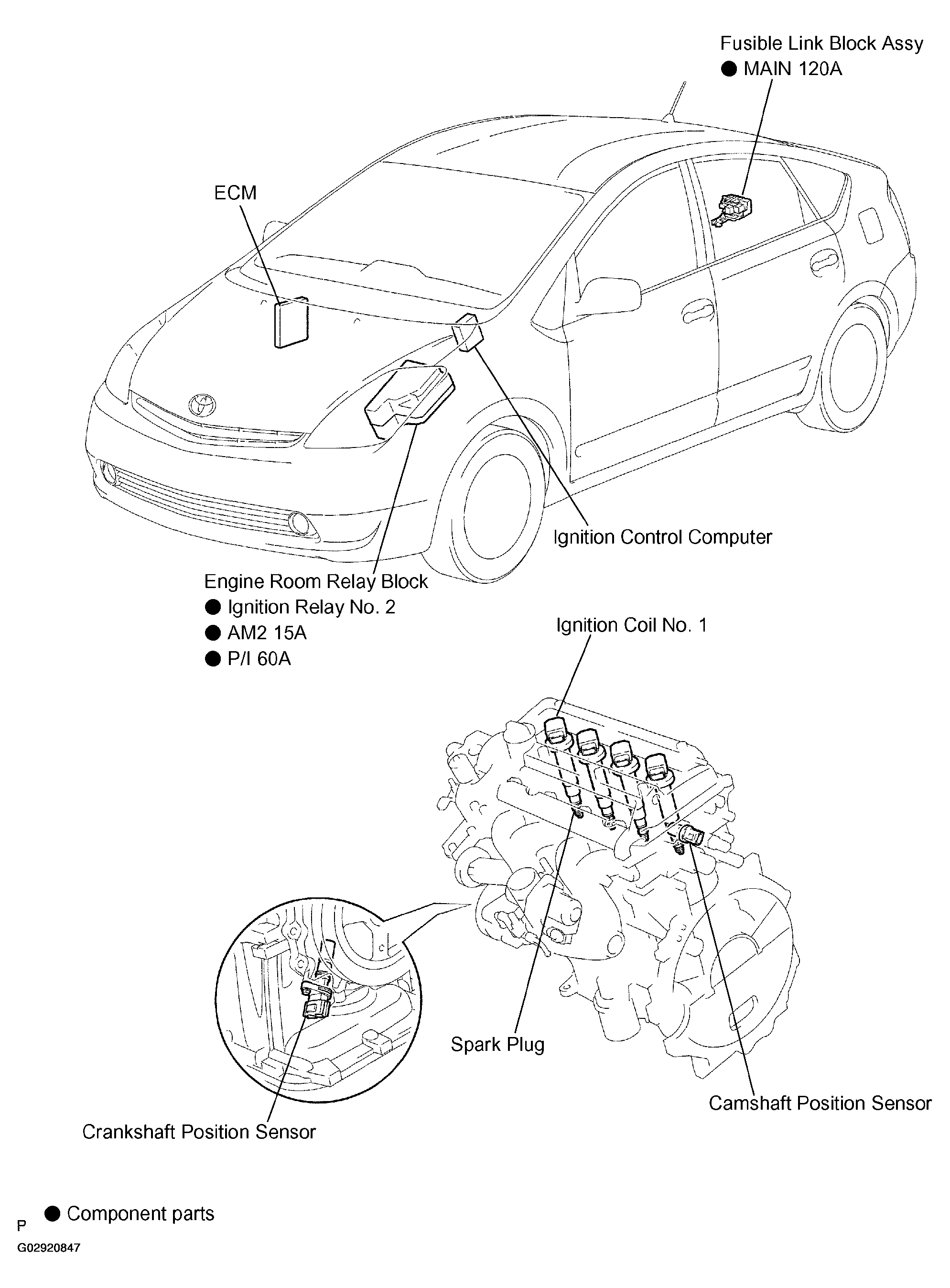

Fig 1: Identifying Ignition System Components Location
G02920847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
