Vehicle Identification And Serial Numbers

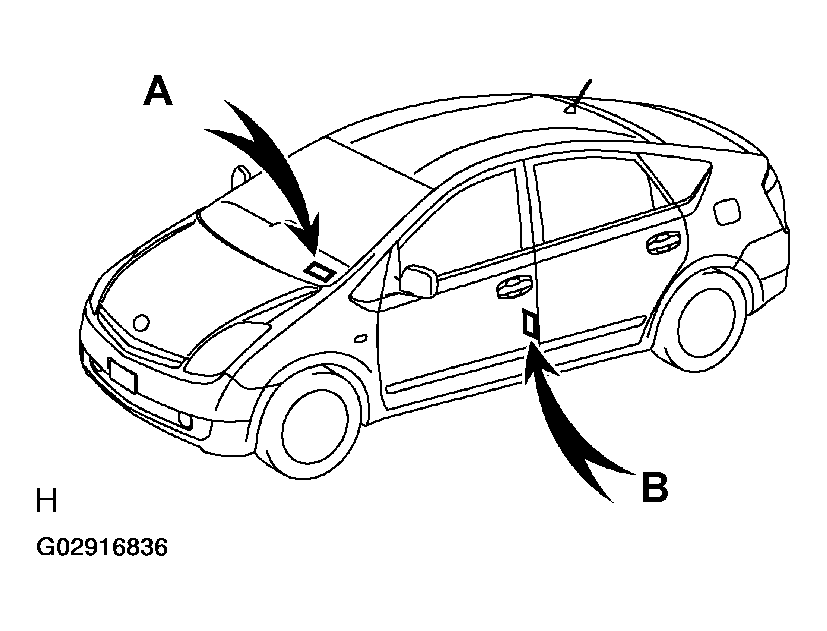

1. The vehicle identification number is stamped on the vehicle identification number plate and certification label, as shown in the illustration.

   A: Vehicle Identification Number Plate

   B: Certification Label

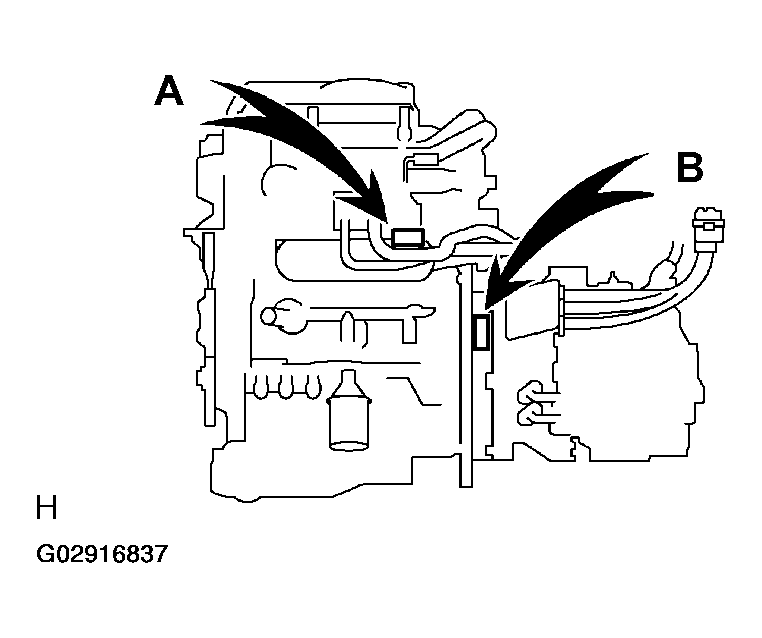

Fig 2: Locating Engine Serial And Motor Serial Number

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. The engine serial number is stamped on the engine block, as shown in the illustration.

   A: Engine Serial Number

2. The motor serial number is stamped on the motor as shown in the illustration.

B: Motor Serial Number
