Light Control: Notes

CUSTOMIZE PARAMETERS LIGHT CONTROL

DISPLAY (ITEM)

DEFAULT

CONTENTS

SETTING

SENSITIVITY

NORMAL

To adjust the sensitivity of the lighting illumination. Refer to the *1 illustration.

LIGHT2 / LIGHT1 / NORMAL / DARK1 / DARK2

DISP EX ON SEN

NORMAL

Changes the brightness when lowering lights such as the combination meter indicator lamp, A/C indicator lamp, and clock lamp. Refer to the illustration *2.

LIGHT2 / LIGHT1 / NORMAL / DARK1 / DARK2

DISP EX OFF SEN

NORMAL

Changes the brightness when lowering lights such as the combination meter indicator lamp, A/C indicator lamp, and clock. Refer to the illustration *3.

LIGHT2 / LIGHT1 / NORMAL / DARK1 / DARK2

DRL FUNCTION (⁽¹⁾)

ON/OFF of the DRL function.

ON / OFF

⁽¹⁾	w/ Daytime Running Light for U.S.A.

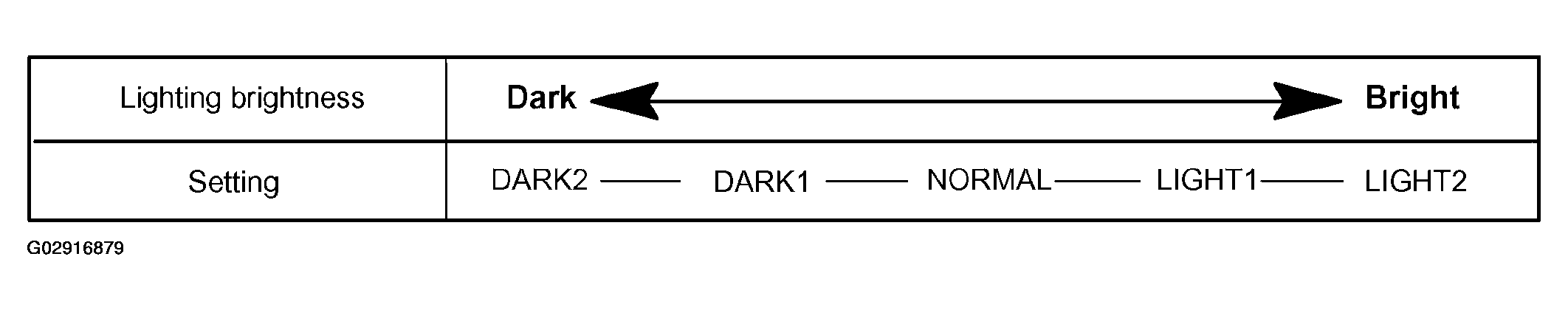

Illustration of *1

Fig 1: Adjusting Sensitivity Of Lighting Illumination

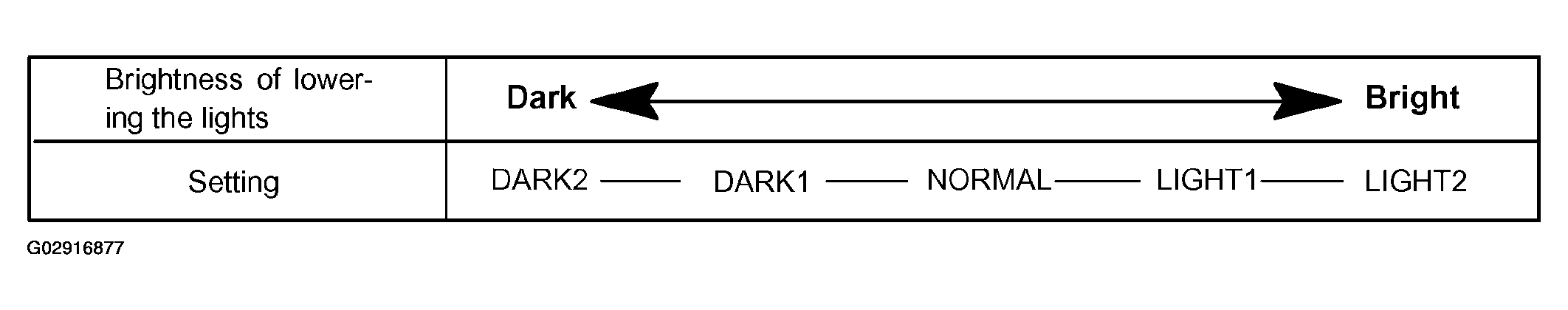

Illustration of *2

Fig 2: Changing Brightness - DISP EX ON SEN

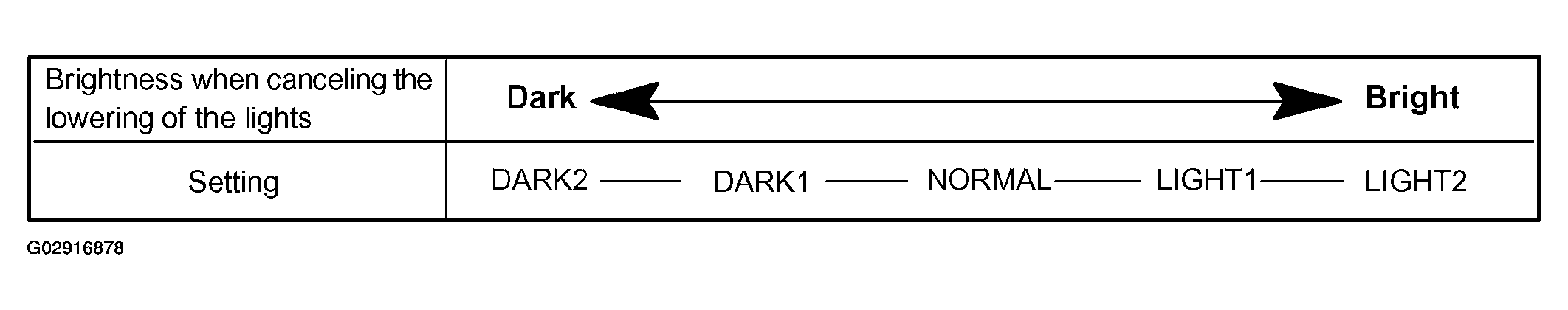

Illustration of *3

Fig 3: Changing Brightness - DISP EX OFF SEN
