Differential Case ASSY: Components

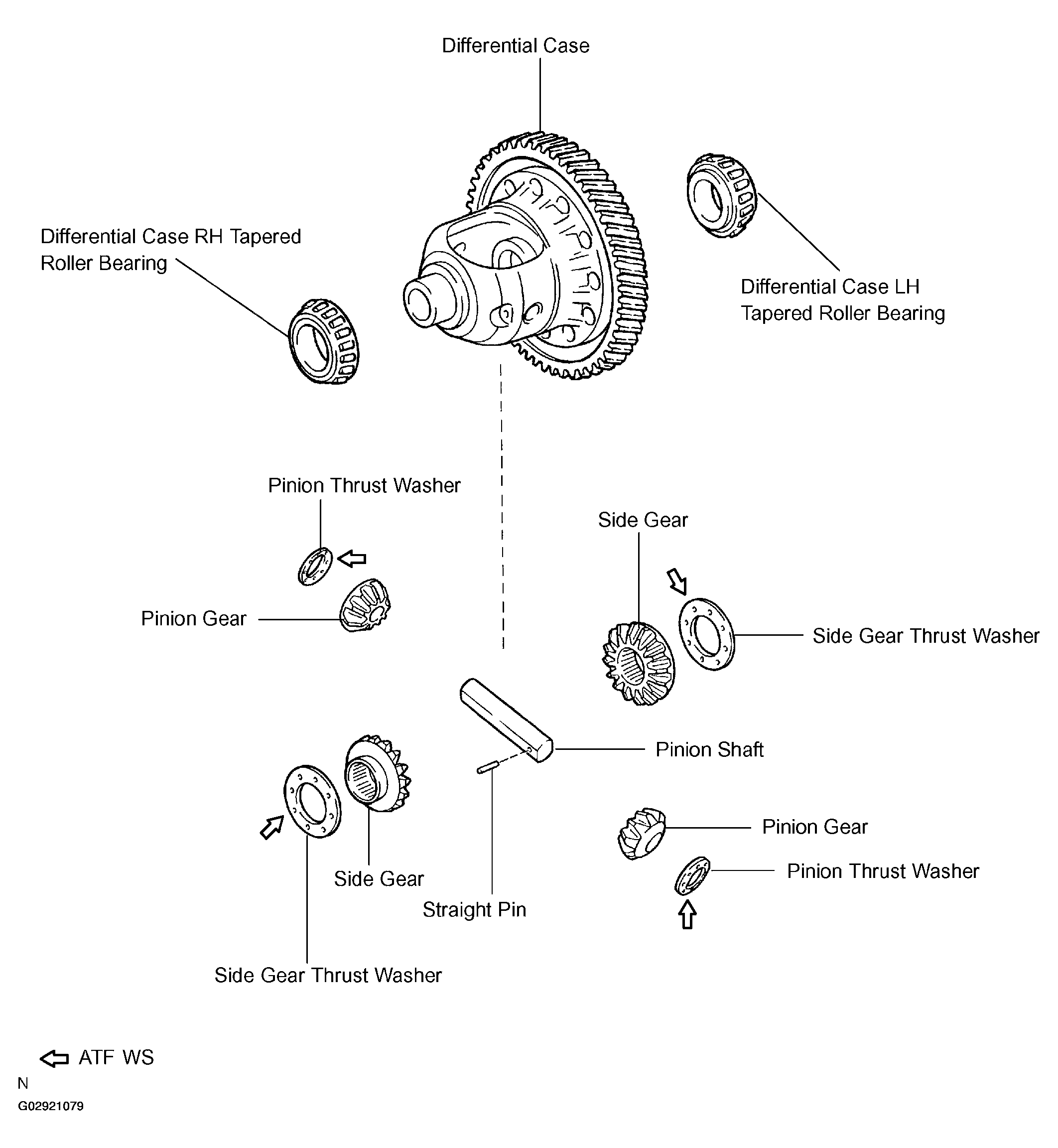

Fig 1: Exploded View Of Differential Case Assy Components
G02921079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
