Shift Lever ASSY: Overhaul

REMOVE INSTRUMENT PANEL REGISTER ASSY NO.1 (SEE INSTRUMENT PANEL SUB-ASSY )
REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSY LOWER (SEE INSTRUMENT PANEL SUB-ASSY )
REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSY UPPER (SEE INSTRUMENT PANEL SUB-ASSY )
REMOVE INSTRUMENT PANEL REGISTER ASSY NO.3 (SEE INSTRUMENT PANEL SUB-ASSY )
REMOVE SHIFT LEVER ASSY
1. Remove the 3 bolts.
2. Disconnect the 2 connectors and remove the shift lever assy.

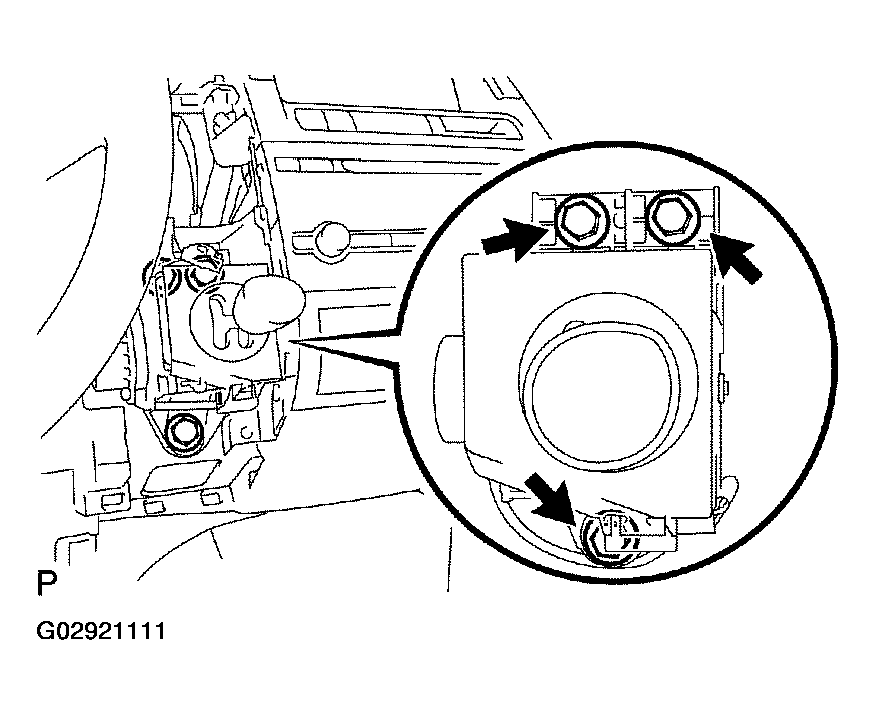

Fig 1: Locating Bolts Of Shift Lever Assy For Removal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE INDICATOR LAMP WIRE SUB-ASSY
1. Remove the position indicator lamp wire from the position indicator housing.

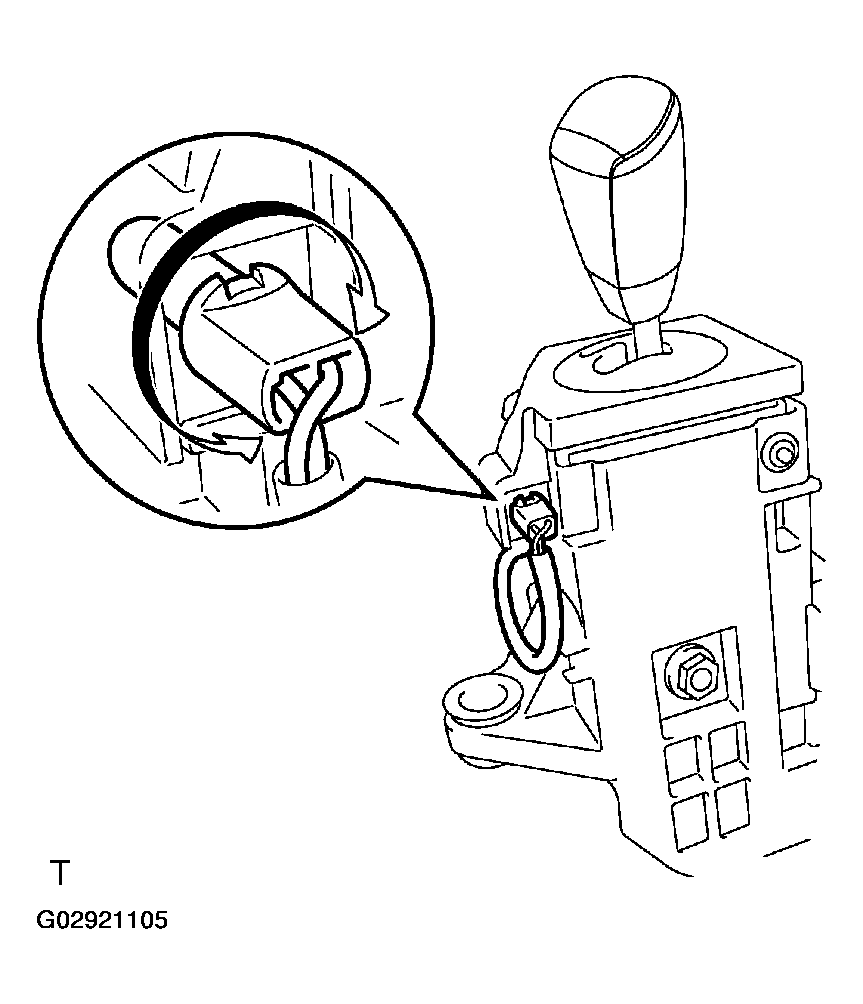

  Fig 2: Removing Position Indicator Lamp Wire From Position Indicator Housing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Separate the connector from the 3 clamps and remove the position indicator lamp wire.
3. Remove the cover.

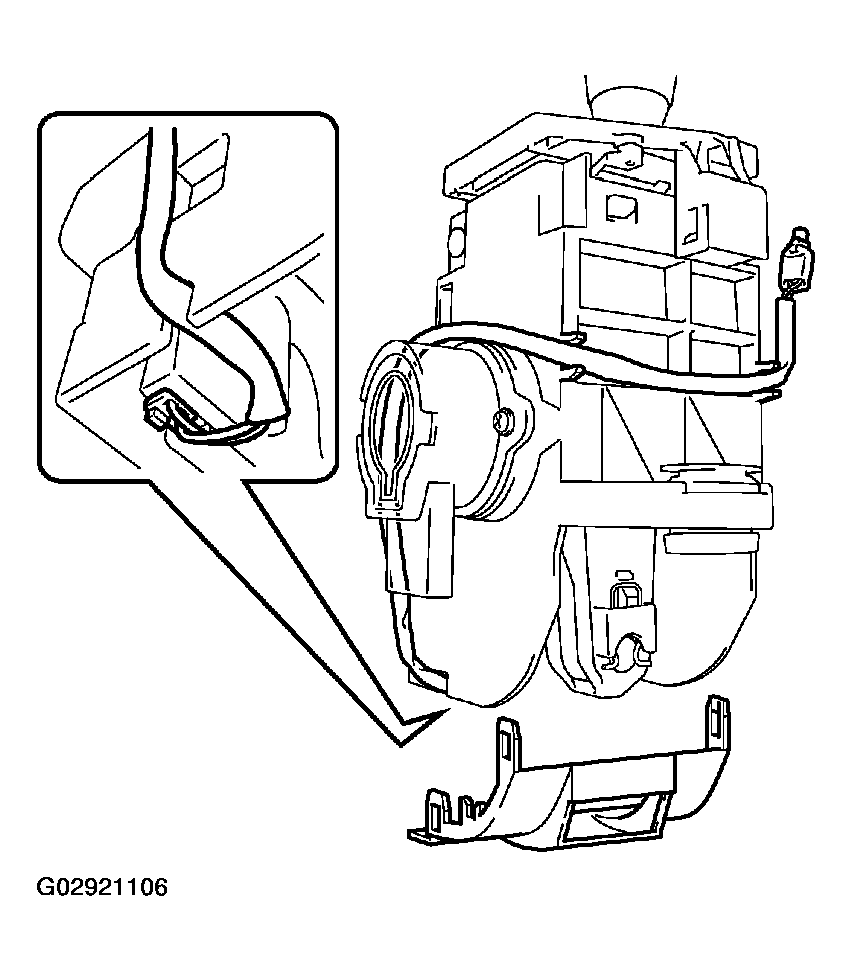

  Fig 3: Removing Cover And Position Indicator Lamp Wire
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the bulb and cap from the position indicator lamp wire.

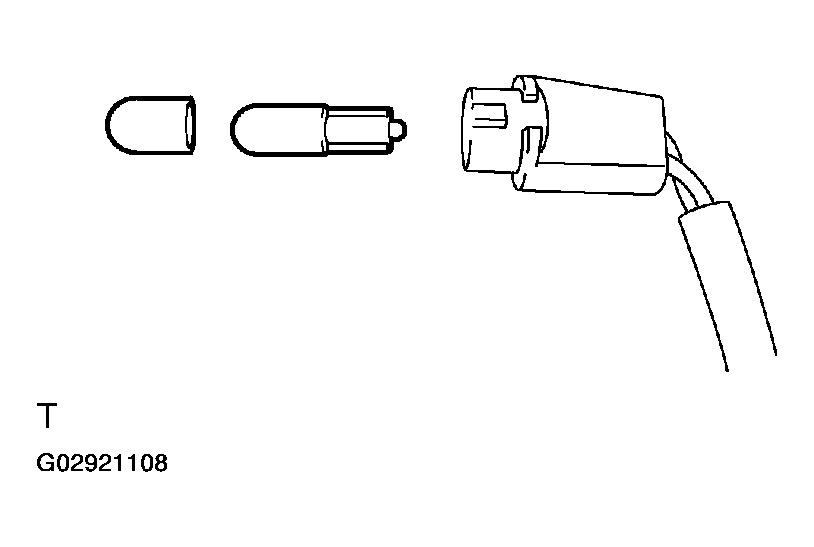

Fig 4: Removing Bulb And Cap From Position Indicator Lamp Wire
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INDICATOR LAMP WIRE SUB-ASSY
1. Install the bulb and cap to the position indicator lamp wire.

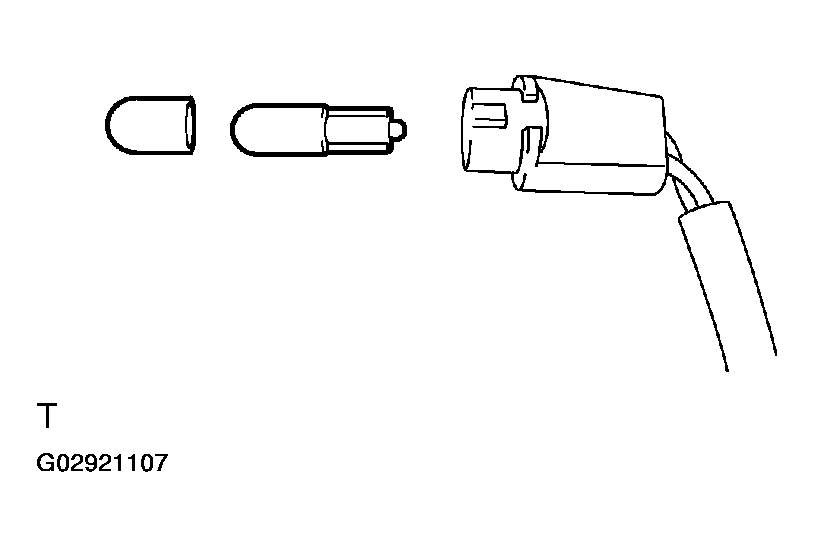

  Fig 5: Installing Bulb And Cap To Position Indicator Lamp Wire
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the connector and 3 clamps.
3. Install the cover.

  Fig 6: Installing Cover And Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the position indicator lamp wire to the position indicator housing.
NOTE:
- Securely attach by twisting to the right.
Fig 7: Installing Position Indicator Lamp Wire To Position Indicator Housing
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT LEVER ASSY
1. Install the 2 connectors to the shift lever assy.
2. Install the shift lever assy with the 3 bolts.
  1. Torque: 12 N.m (122 kgf.cm, 9 ft.lbf)
Fig 8: Locating Bolts Of Shift Lever Assy For Installation
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT SHIFT LEVER ASSY (SEE ON-VEHICLE INSPECTION )
