Ignition Switch & Key Unlock Warning System: Inspection
- INSPECT IGNITION SWITCH CONTINUITY IGNITION SWITCH CONTINUITY

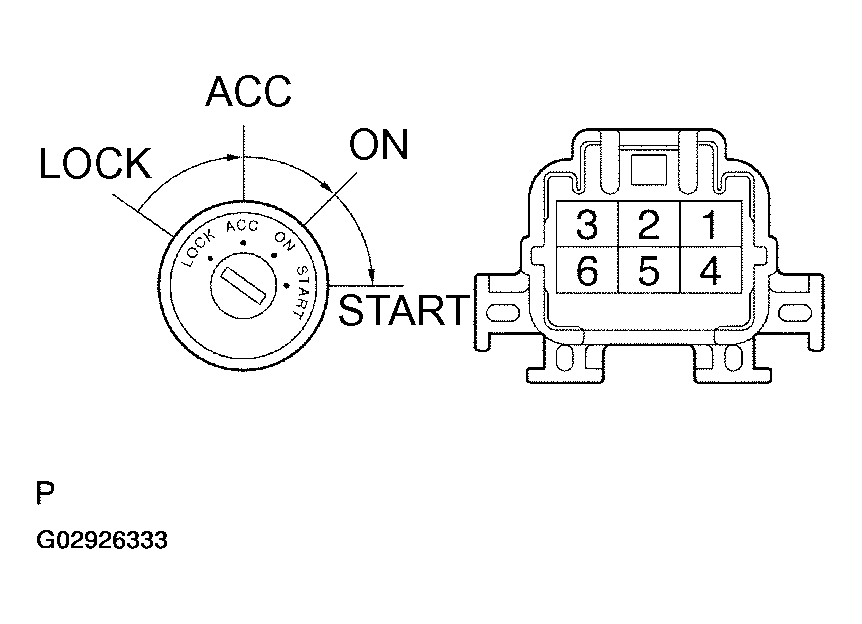

Switch Position Tester Connection Specified Condition ACC 1 - 3 Continuity ON 1 - 2 - 3
5 - 6Continuity START 1 - 2
4 - 5 - 6Continuity If the continuity is not as specified, replace the switch.
- INSPECT KEY UNLOCK WARNING SWITCH CONTINUITY
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

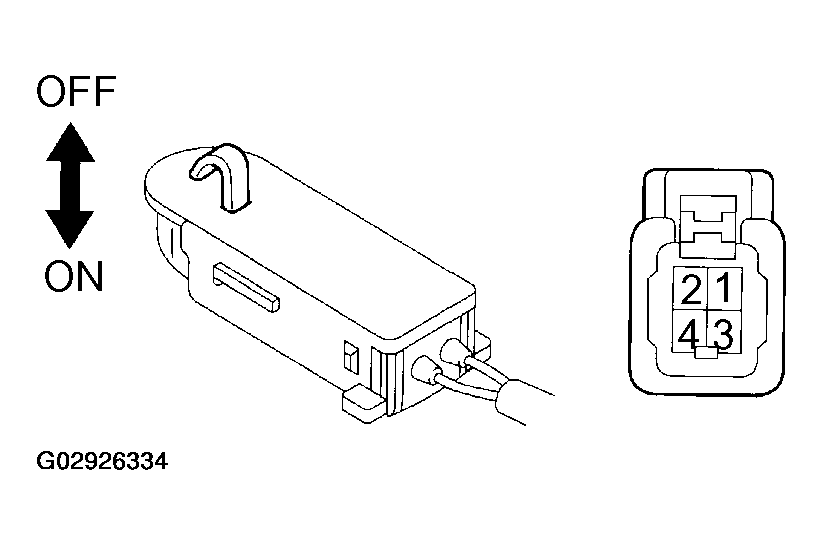

KEY UNLOCK WARNING SWITCH CONTINUITYSwitch Position Tester Connection Specified Condition OFF (Key removed) 1 - 2 No continuity ON (Key set) 1 - 2 Continuity If the continuity is not as specified, replace the switch.
- INSPECT KEY UNLOCK WARNING BUZZER

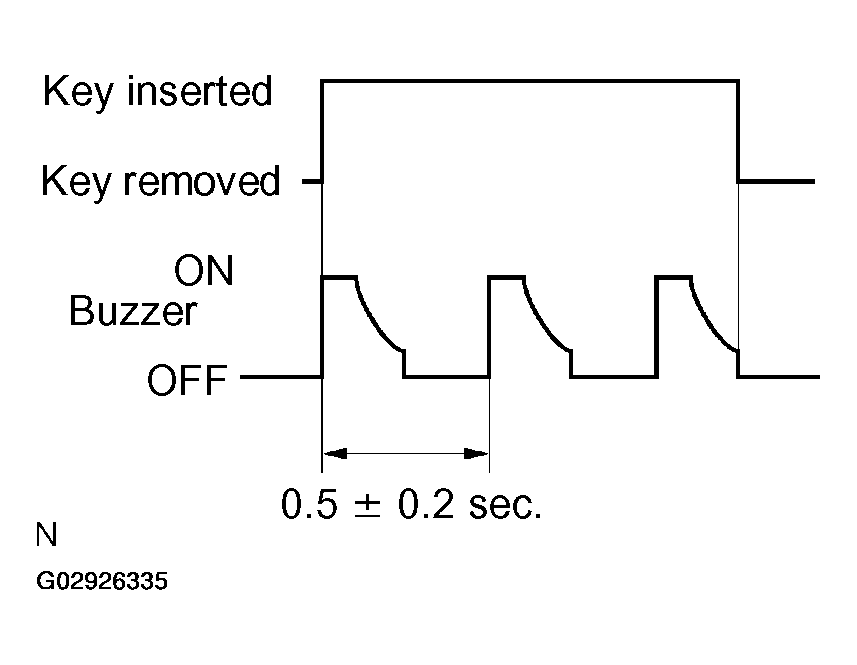

Check the buzzer sound when the driver's door is opened and the key is inserted.
If operation is not as specified, replace the combination meter (See REMOVAL ).
