Power Window Control System: Troubleshooting

MALFUNCTION SYMPTOMS

Malfunction Symptoms	Applicable Chart
Window does not move up and down with one-touch power window function (AUTO operation function).	1
During AUTO UP operation, window moves down.	2
Window does not move down even though something is caught between window and vehicle body.	3

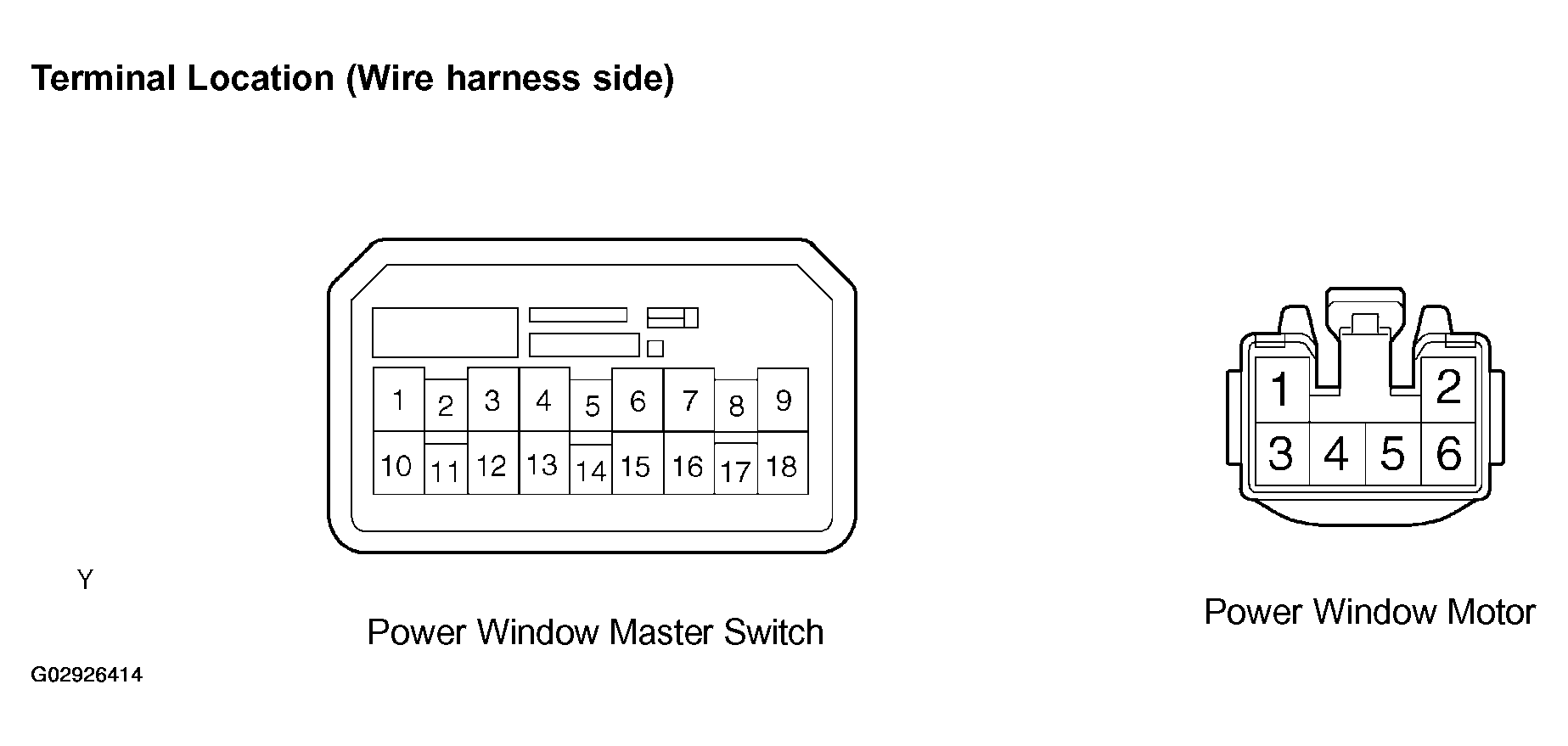

Fig 1: Locating Power Window Master Switch And Power Window Motor

Window does not move up and down with one-touch power window function.

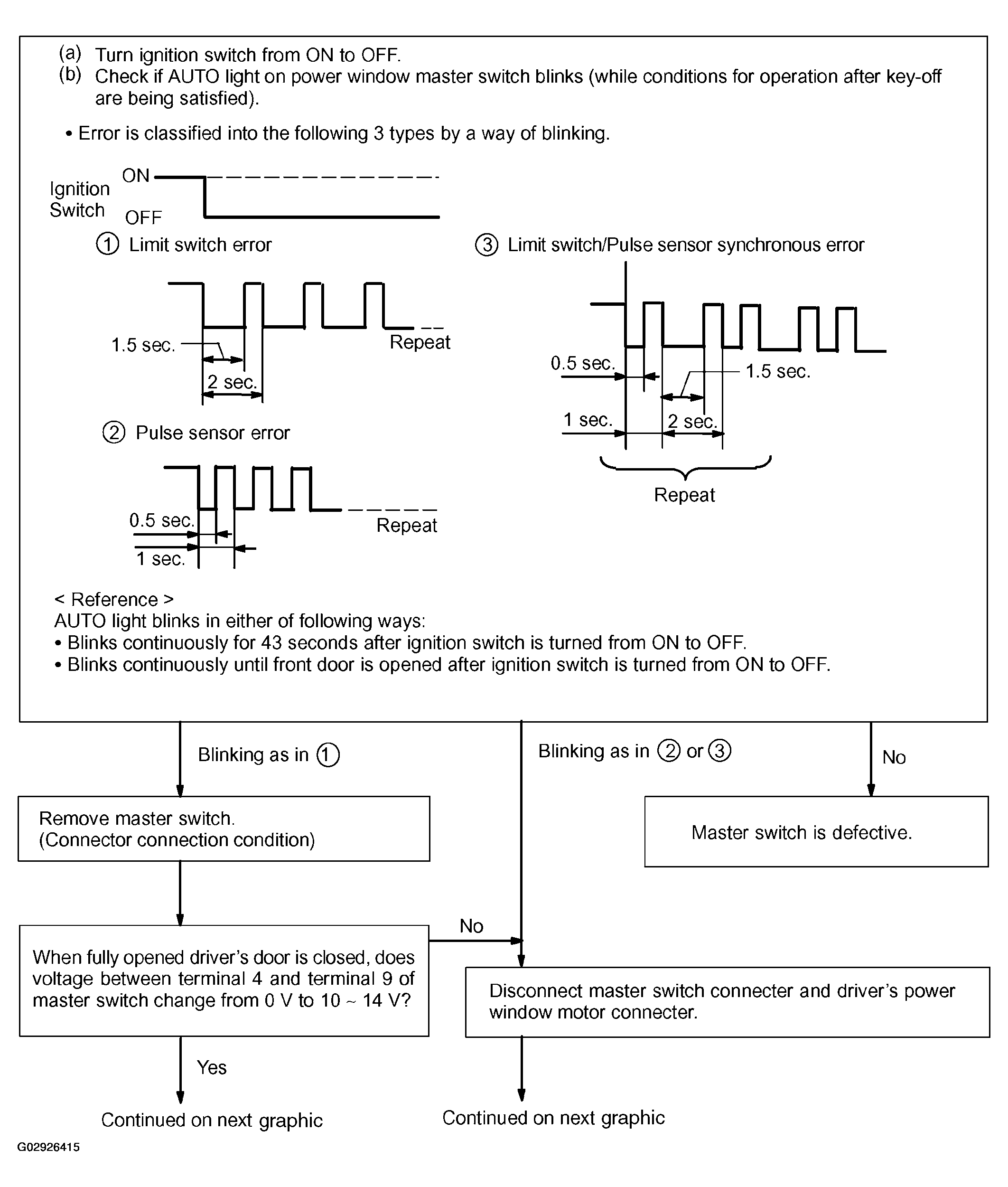

Fig 2: Window Does Not Move Up Or Down With One-Touch Power Window Function Flow Chart (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

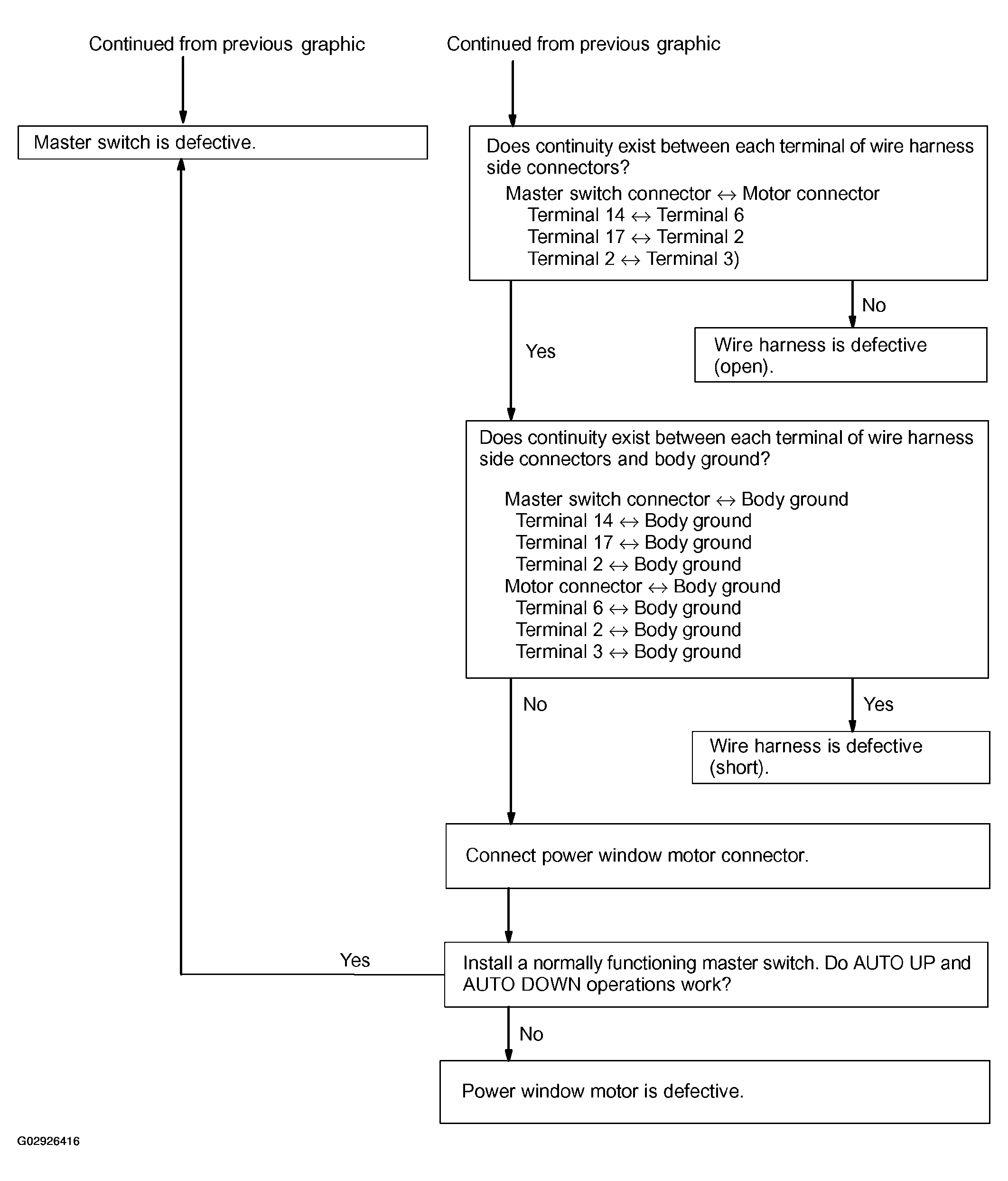

Fig 3: Window Does Not Move Up Or Down With One-Touch Power Window Function Flow Chart (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
During AUTO UP operation, window moves down.

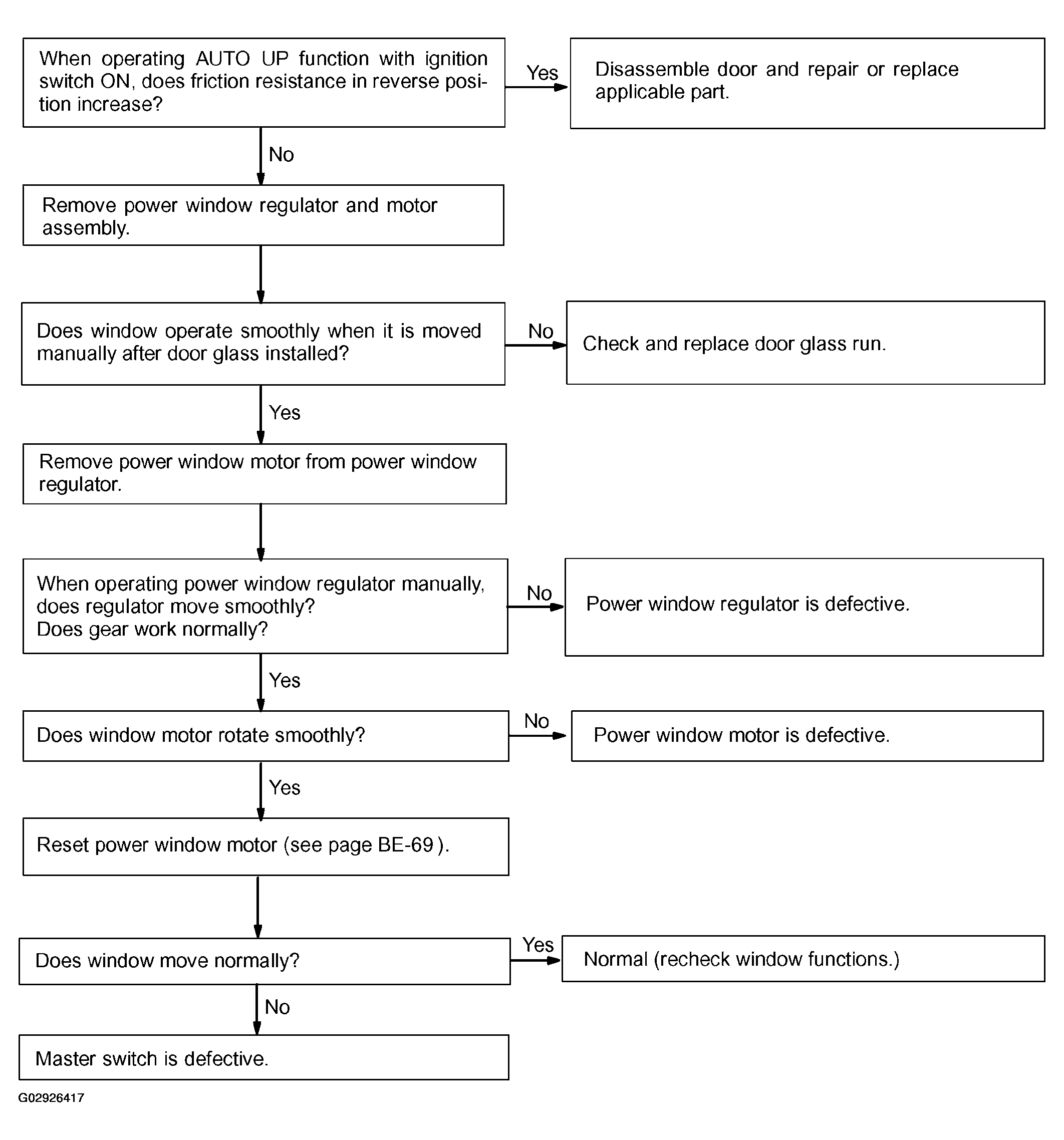

Fig 4: During Auto Up Operation, Window Moves Down Flow Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Window does not move down even though something is caught between window and vehicle body.

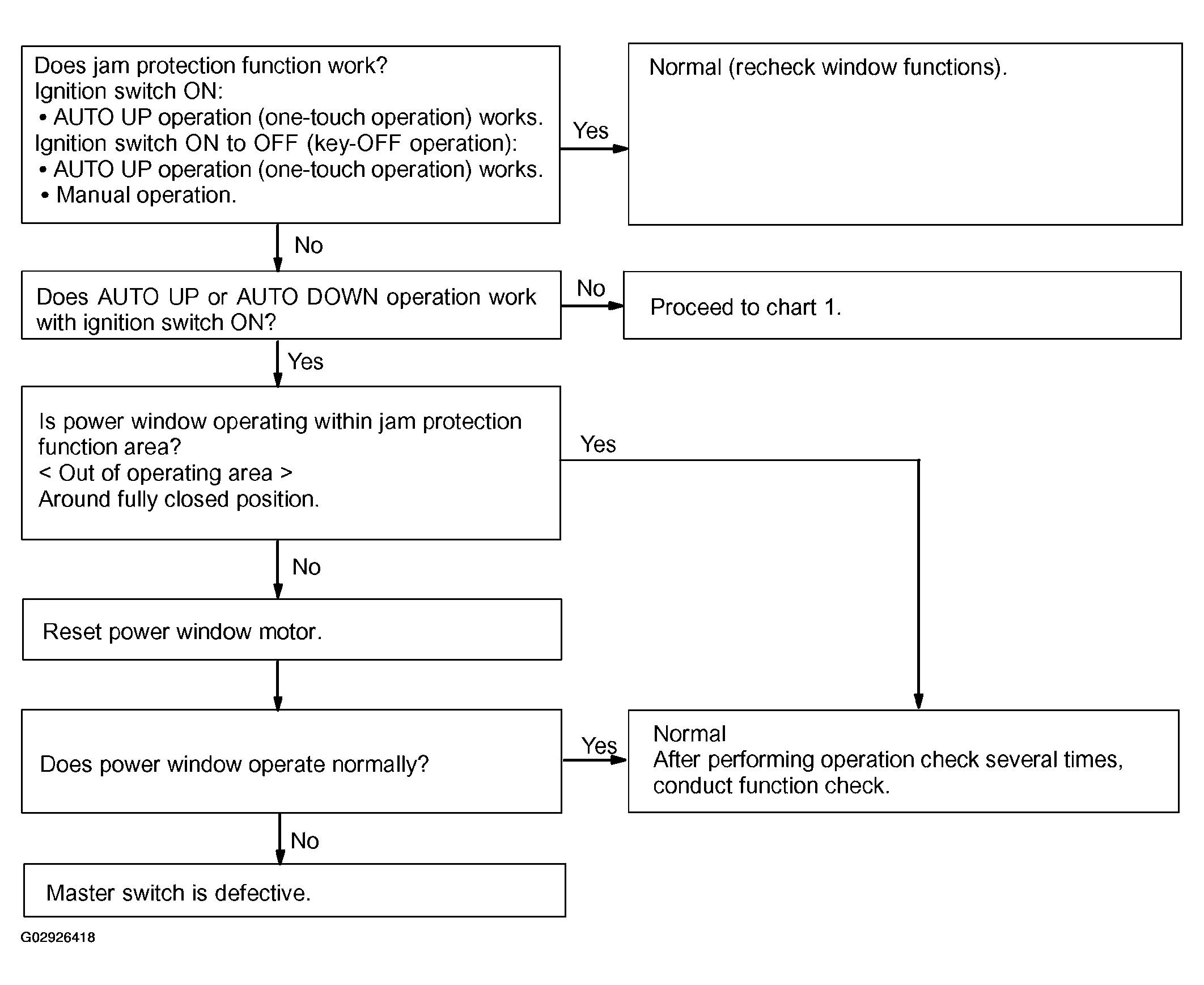

Fig 5: Window Does Not Move Down Even Though Something Is Caught Between Window & Vehicle Body Flow Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE: For chart 1, see Fig 2
