Front Brake Speed Sensor: Components

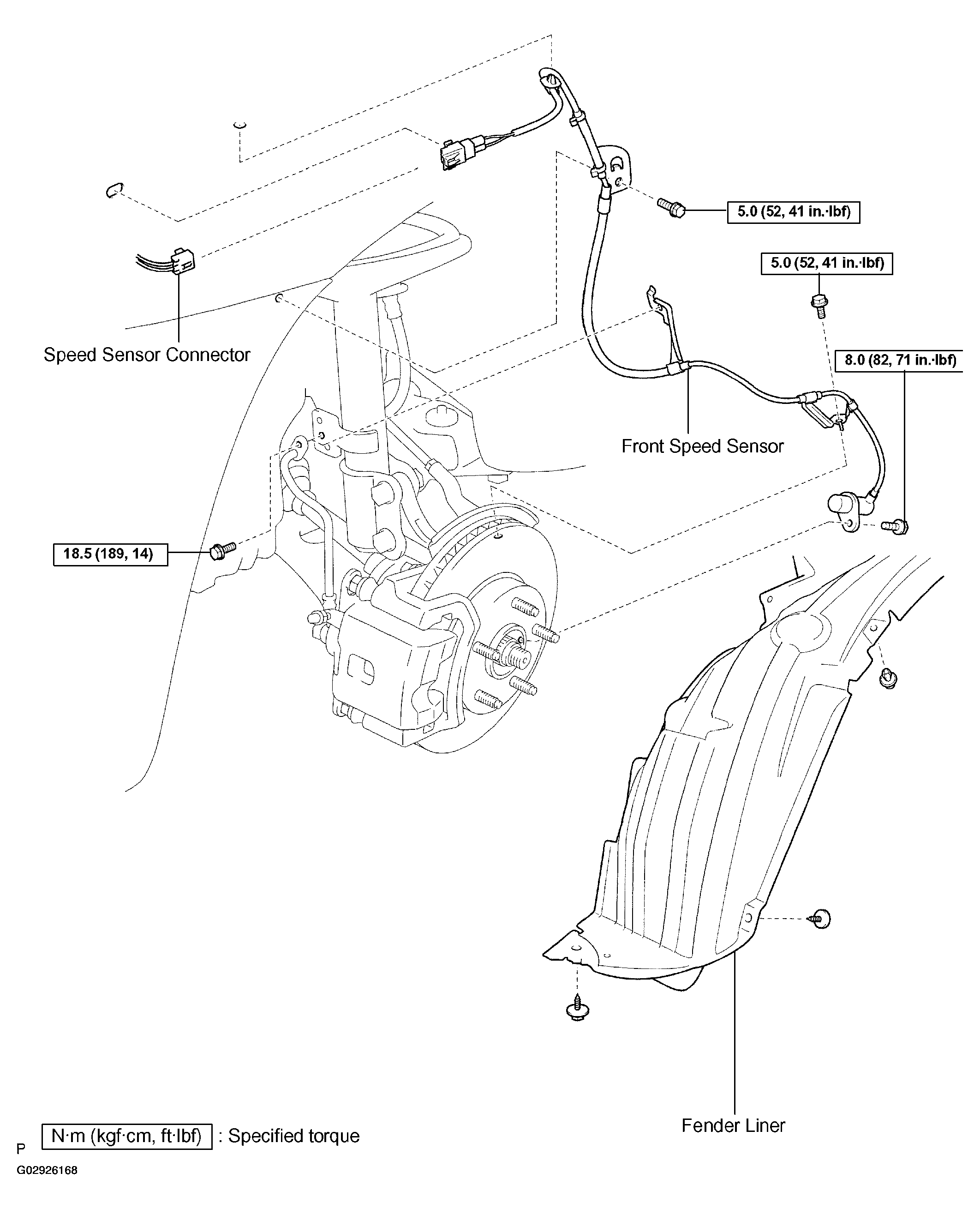

Fig 1: Locating Front Brake Speed Sensor Components
G02926168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
