Heated Oxygen Sensor: Inspection

INSPECT HEATER RESISTANCE OF OXYGEN SENSOR
1. Disconnect the sensor connector.
2. Using an ohmmeter, measure the resistance between terminals +B and HT.
  Resistance: 11 to 16 Ω at 20°C (68°F)

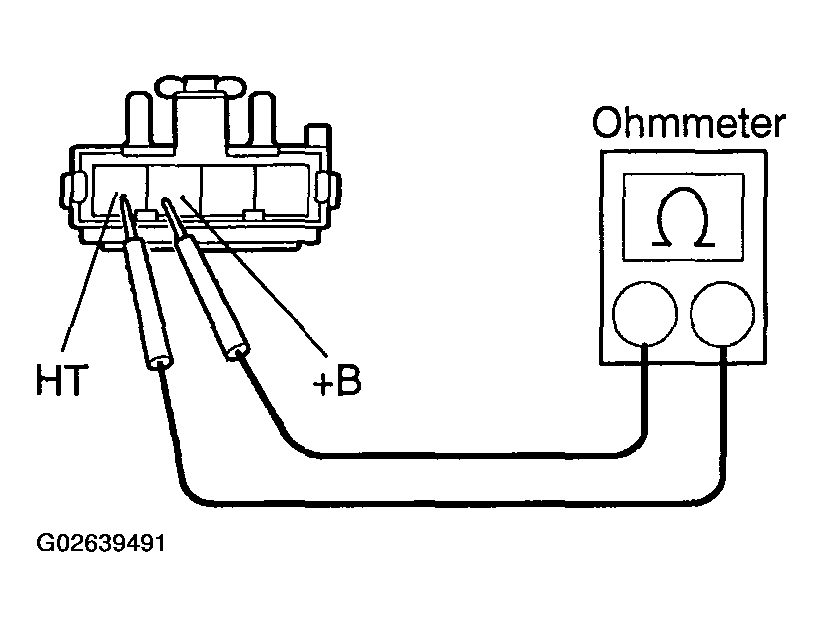

  Fig 1: Measuring Resistance Between Terminals +B And HT Using Ohmmeter
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the resistance is not as specified, replace the sensor.

  Torque: 44 N.m (450 kgf.cm, 32 ft.lbf)
3. Reconnect the sensor connector.
INSPECT OPERATION OF HEATED OXYGEN SENSOR (See DTC P0136: OXYGEN SENSOR CIRCUIT MALFUNCTION (BANK 1 SENSOR 2) )
