VSV For Pressure Switching Valve: Inspection

REMOVE VSV
INSPECT VSV
1. Inspect the VSV for open circuit.
  Using an ohmmeter, measure the resistance between the terminals.

  Resistance: 30 to 36 Ω at 20°C (68°F)

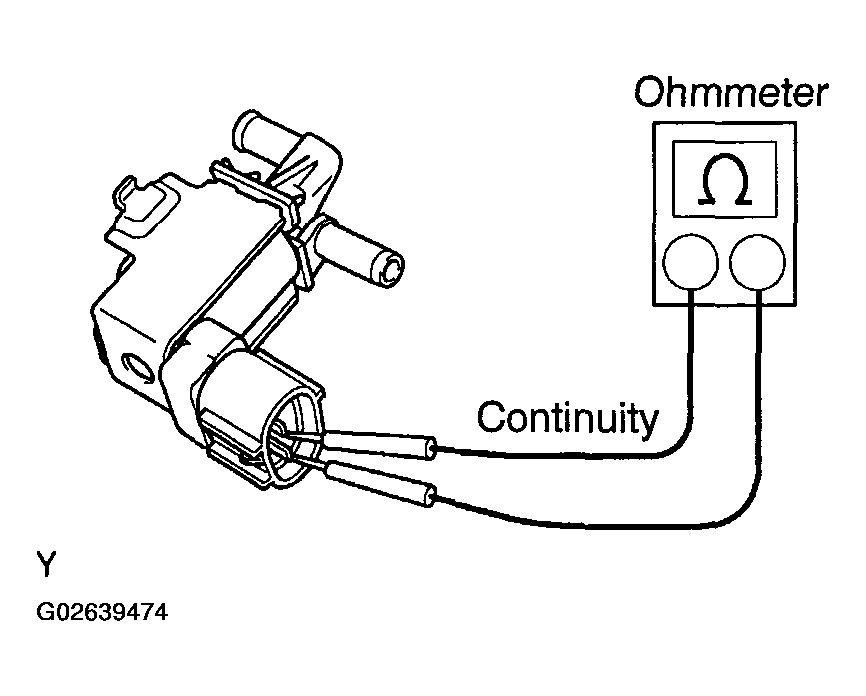

  Fig 1: Measuring Resistance Between Terminals Using Ohmmeter
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the result is not as specified, replace the VSV.
2. Inspect the VSV for ground.
  Using an ohmmeter, check that there is no continuity between each terminal and the VSV body.

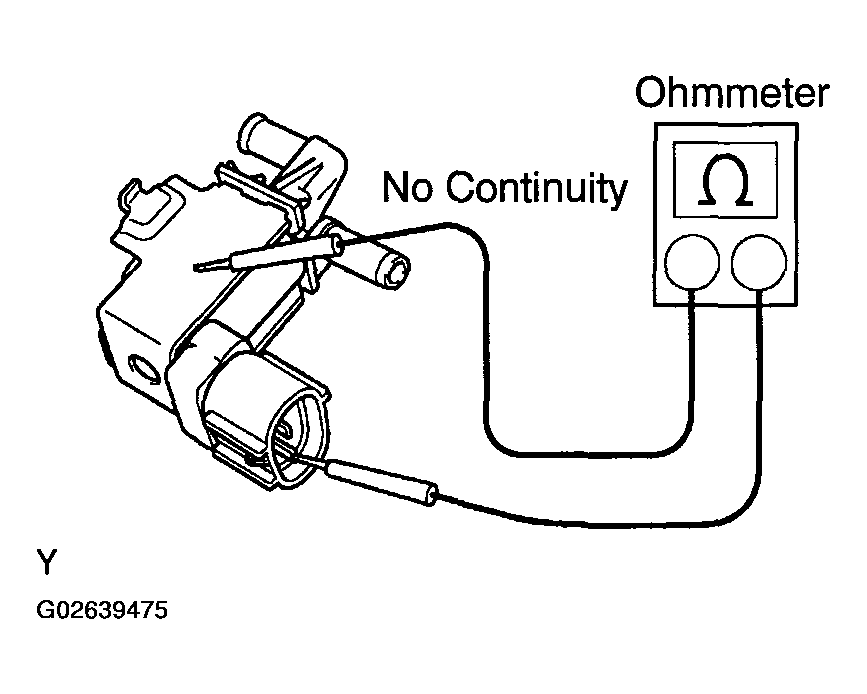

  Fig 2: Checking For No Continuity Between Each Terminal And VSV Body Using Ohmmeter
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the result is not as specified, replace the VSV.
3. Inspect the VSV operation.
  1. Check that air does not flow from ports E to F.

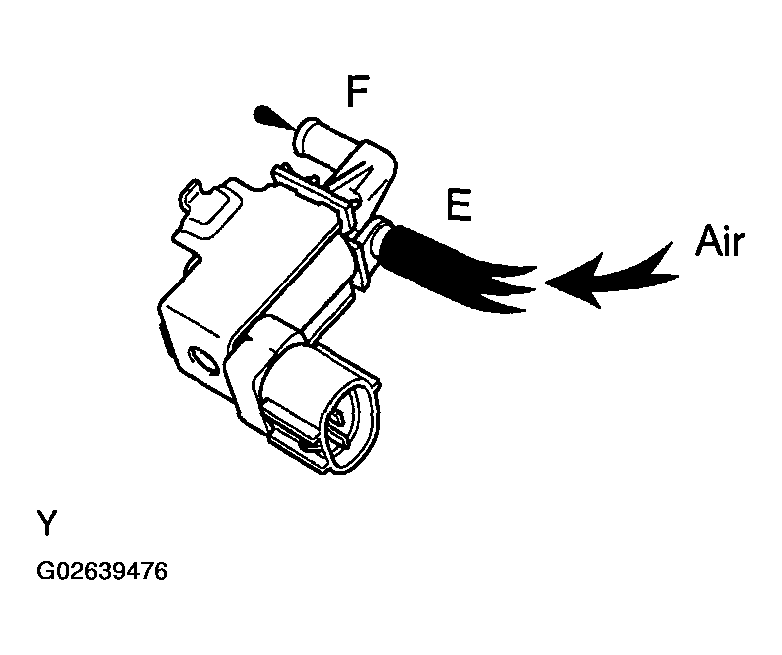

    Fig 3: Checking Air Does Not Flow From Ports E To F
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

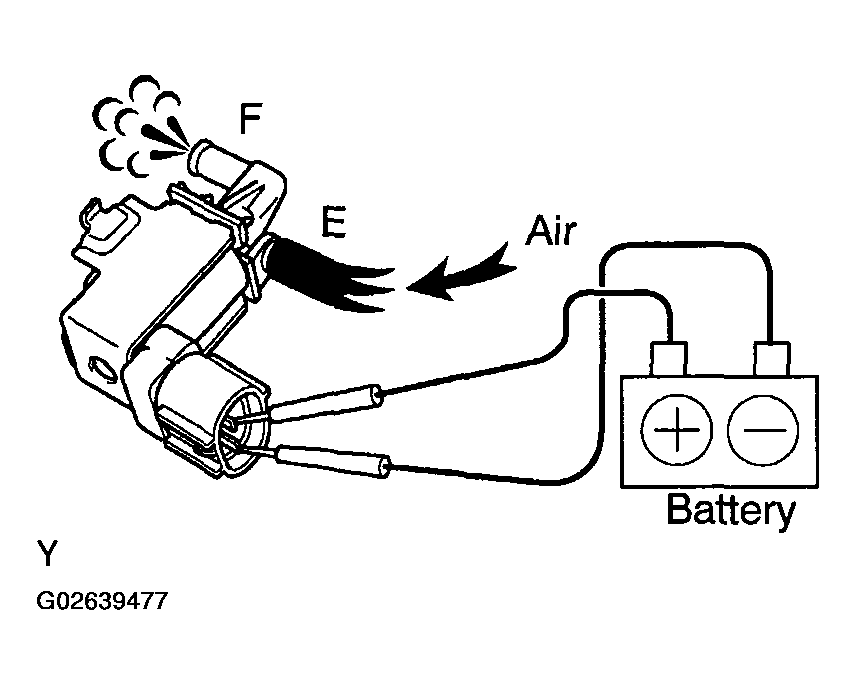

  2. Apply battery positive voltage to the terminals.
  3. Check that air flows from ports E to F.
  If the operation is not as specified, replace the VSV.
REINSTALL VSV
