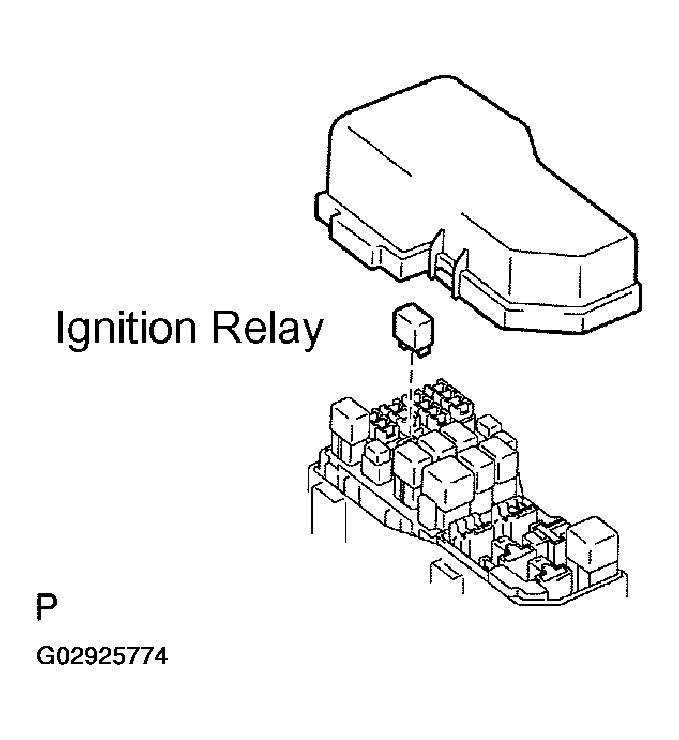

Check the resistance of the IG relay.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Standard:

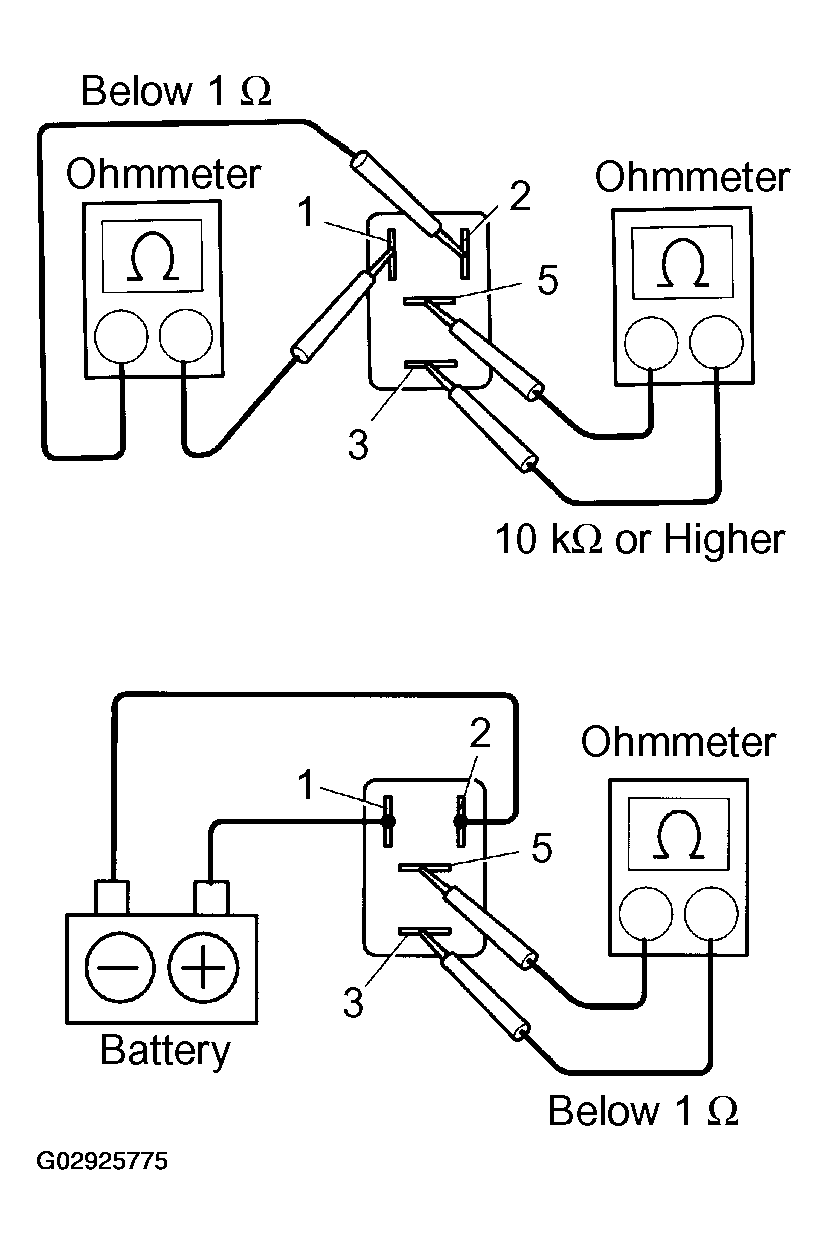

IG RELAY CONNECTOR TERMINALS SPECIFIED CONDITION
| Tester Condition |
Specified Condition |
| 3 - 5 |
10 kΩ or higher |
| 3 - 5 |
Below 1 Ω (when battery voltage is applied to terminals 1 and 2) |
If the result is not as specified, replace the relay.
