Hand-held tester:

  1. Connect hand-held tester and check operation of fuel pump.

    PREPARATION:

    1. Connect the hand-held tester to the DLC3.
    2. Turn ON the ignition switch. Push the hand-held tester main switch.
    3. Enter the following menus: DIAGNOSIS / ENHANCED OBD II / ACTIVE TEST / FUEL PUMP / SPD.

    CHECK:

    Check that operating noise is heard from the relay while operating it using the hand-held tester.

    OK:

    Operating noise can be heard from the relay.

    1. OK : Go to step   5 .
    2. NG : Go to next step.
  2. Check circuit opening relay (Marking: C/OPN).

    PREPARATION:

    Remove the circuit opening relay from the engine room J/B.

    CHECK:

    Measure the circuit opening relay.

    OK:

    EFI RELAY

    Tester Connection Specified Condition
    3 - 5 10 kΩ or higher
    3 - 5 Below 1 Ω (when battery voltage is applied to terminals 1 and 2)

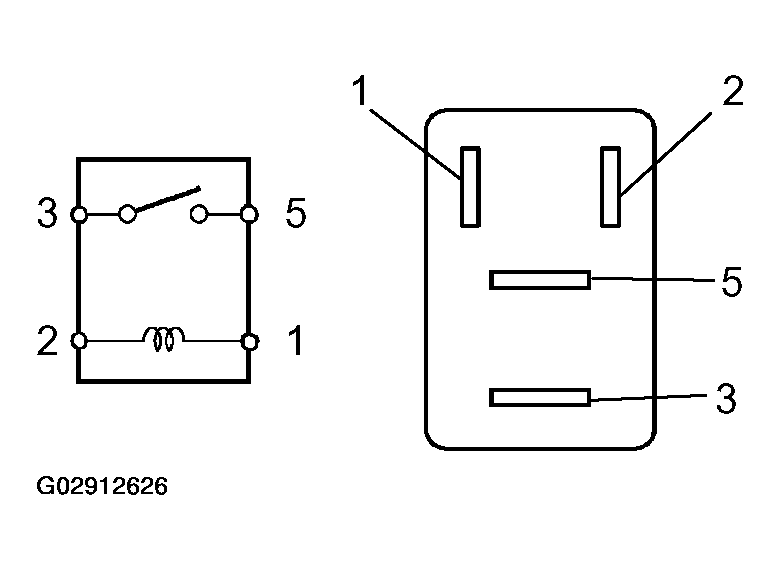

    Fig 1: Identifying C/OPN Relay
    G02912626Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG : Replace circuit opening relay.
    2. OK : Go to next step.
  3. Check voltage between terminal FC of ECM connector and body ground.

    PREPARATION:

    1. Remove the glove compartment (see COMPONENTS ).
    2. Turn the ignition switch ON.

    CHECK:

    Measure the voltage between terminal FC of the ECM connector and body ground.

    OK:

    Voltage: 9 to 14V

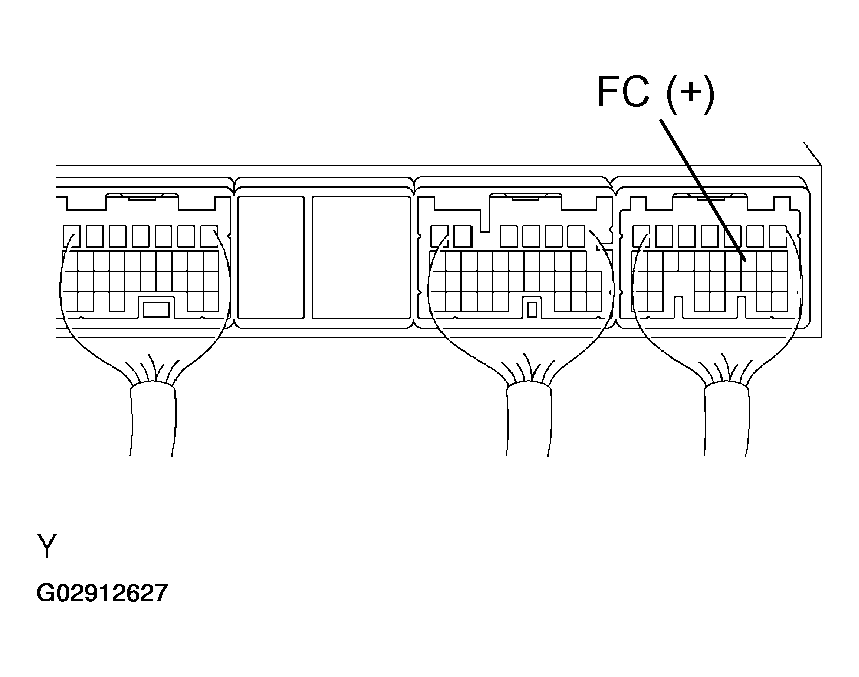

    Fig 2: Checking Voltage Between Body Ground And Terminal FC (+)
    G02912627Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. OK : Go to step   5 .
    2. NG : Go to next step.
  4. Check for open in wire harness between EFI main relay and circuit opening relay (Marking: C/OPN), and circuit opening relay and ECM (see  HOW TO USE THE DIAGNOSTIC CHART AND INSPECTION PROCEDURE  in INTRODUCTION article).
    1. NG : Repair or replace harness and connector.
    2. OK : Replace ECM (see  COMPONENTS  ).
  5. Check fuel pump (see Check fuel pressure (see  ON-VEHICLE INSPECTION  ).
    1. NG : Repair or replace fuel pump.
    2. OK : Go to next step.
  6. Check for open in wire harness between circuit opening relay (Marking: C/OPN) and fuel pump, and fuel pump and body ground (see  HOW TO USE THE DIAGNOSTIC CHART AND INSPECTION PROCEDURE  in INTRODUCTION article).
    1. NG : Repair or replace harness and connector.
    2. OK : Replace ECM (see  COMPONENTS  ).
