VSV For Evaporative Emission (EVAP): Components

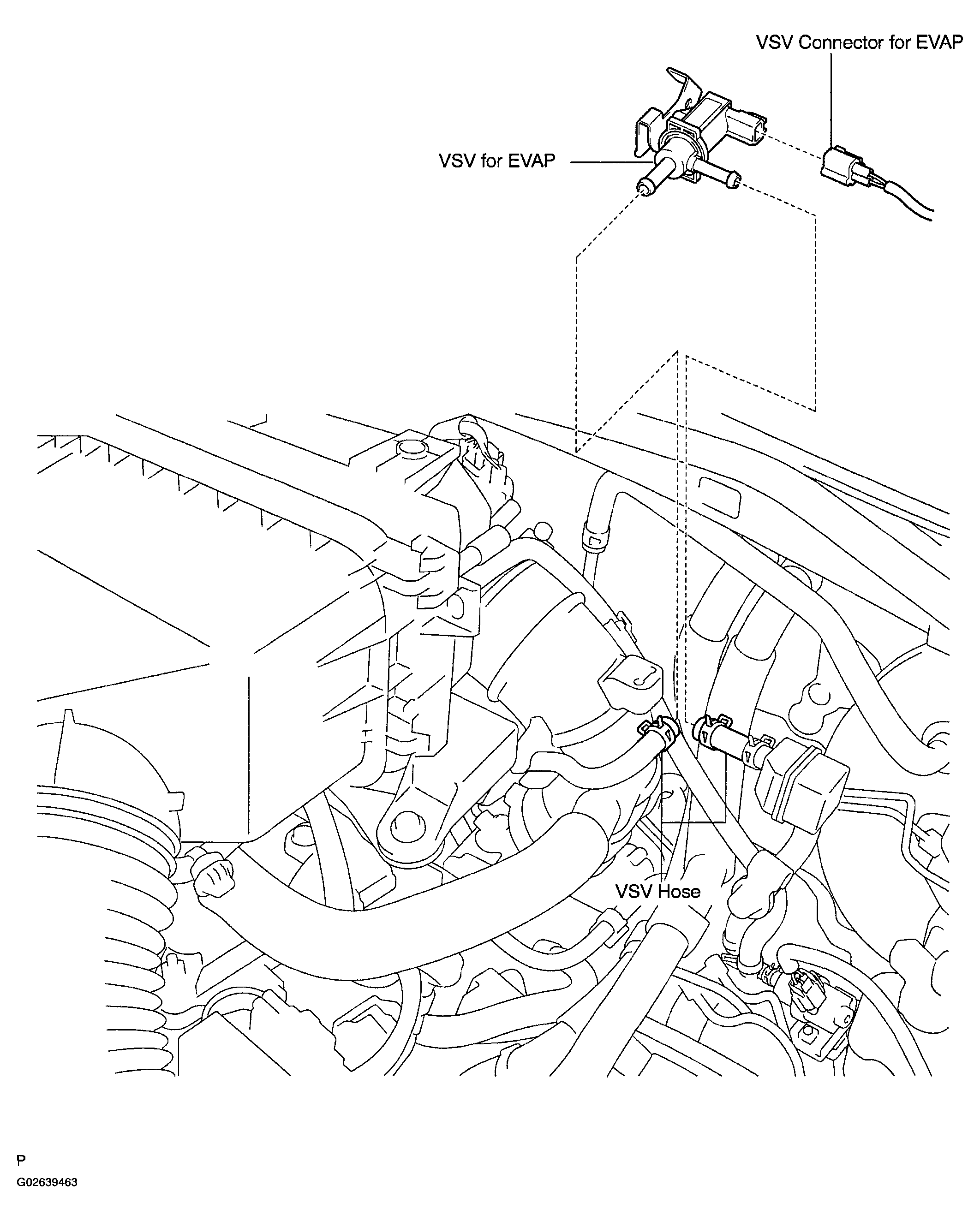

Fig 1: Identifying VSV For Evaporative Emission (EVAP) Components
G02639463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
