Power Mirror Control System: Inspection

INSPECT LEFT SIDE MIRROR SWITCH CONTINUITY

LEFT SIDE MIRROR SWITCH CONTINUITY

Switch Position	Tester Connection	Specified Condition
OFF	-	No continuity
UP	4 - 8 6 - 7	Continuity
DOWN	4 - 7 6 - 8	Continuity
LEFT	5 - 8 6 - 7	Continuity
RIGHT	5 - 7 6 - 8	Continuity

If the continuity is not as specified, replace the switch.

INSPECT RIGHT SIDE MIRROR SWITCH CONTINUITY

RIGHT SIDE MIRROR SWITCH CONTINUITY

Switch Position	Tester Connection	Specified Condition
OFF	-	No continuity
UP	3 - 8 6 - 7	Continuity
DOWN	3 - 7 6 - 8	Continuity
LEFT	2 - 8 6 - 7	Continuity
RIGHT	2 - 7 6 - 8	Continuity

If the continuity is not as specified, replace the switch.

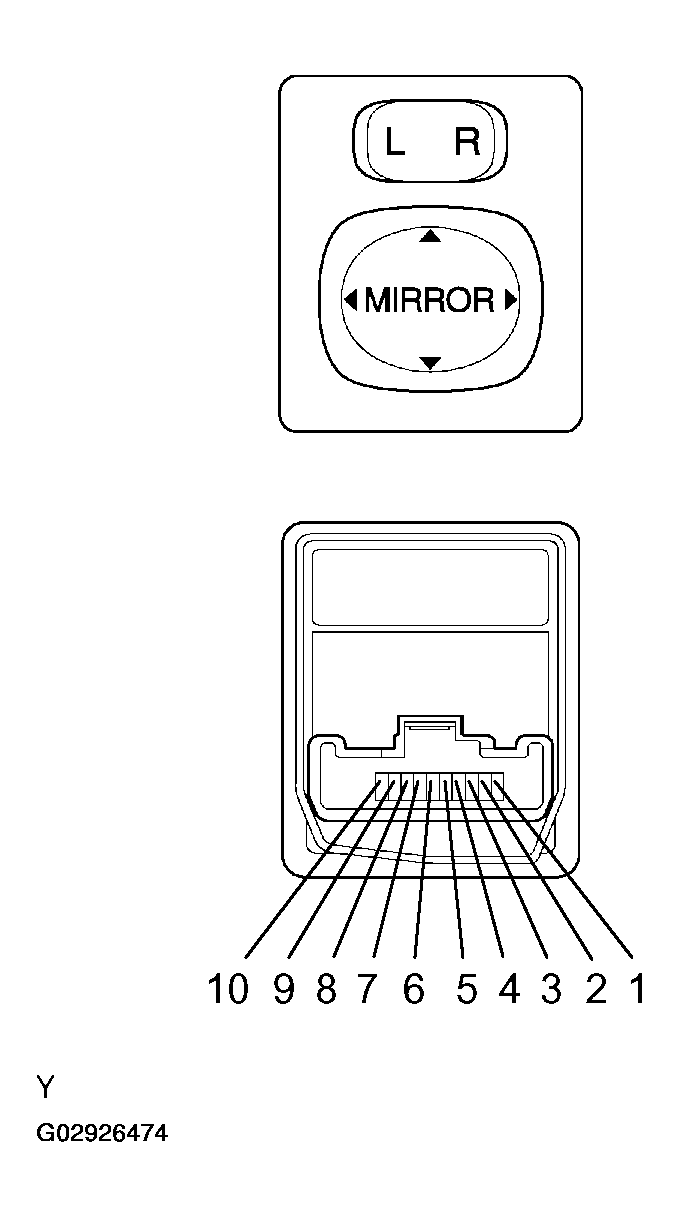

Fig 1: Identifying Side Mirror Switch

G02926474

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT MIRROR MOTOR OPERATION

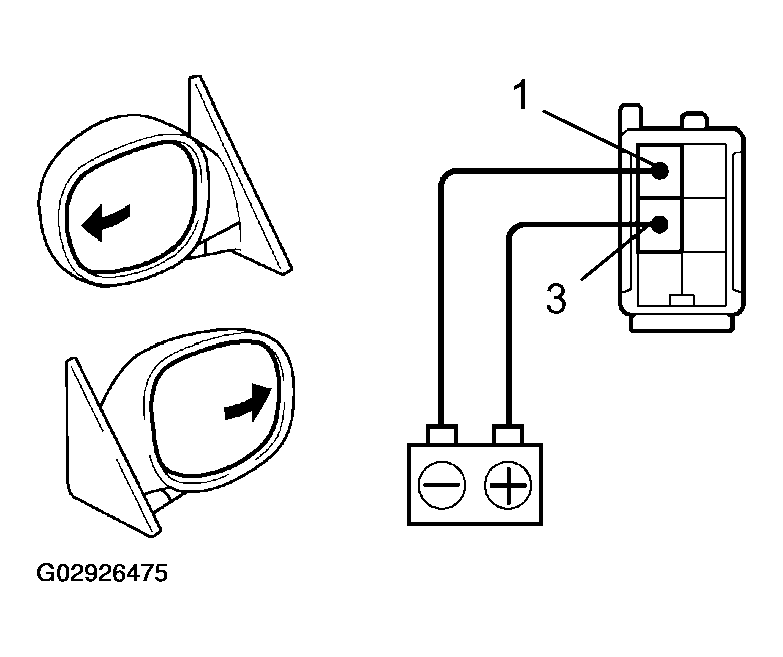

1. Connect the positive (+) lead from the battery to terminal 3 and the negative (-) lead to terminal 1. Check that the mirror angles outward, as shown in Fig 2.

  Fig 2: Checking Mirror Angles Outward
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

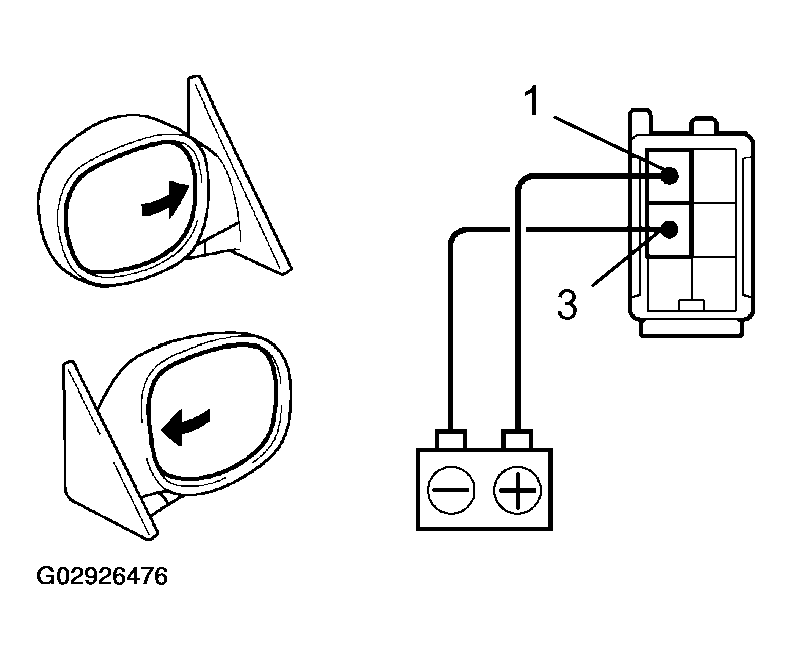

2. Reverse the polarity. Check if the mirror angles inward, as shown in Fig 3.

  Fig 3: Checking Mirror Angles Inward
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

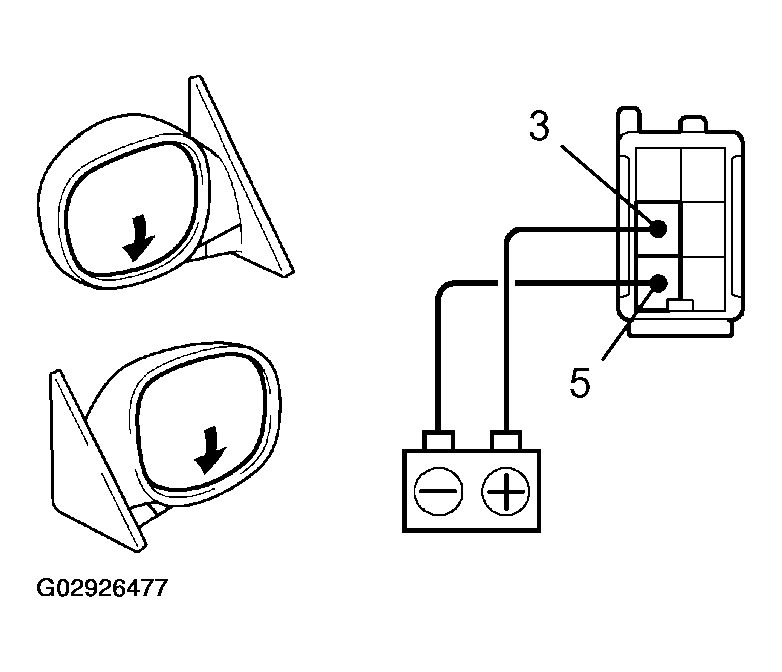

3. Connect the positive (+) lead from the battery to terminal 3 and the negative (-) lead to terminal 5. Check if the mirror angles downward, as shown in Fig 4.

  Fig 4: Checking Mirror Angles Downward
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

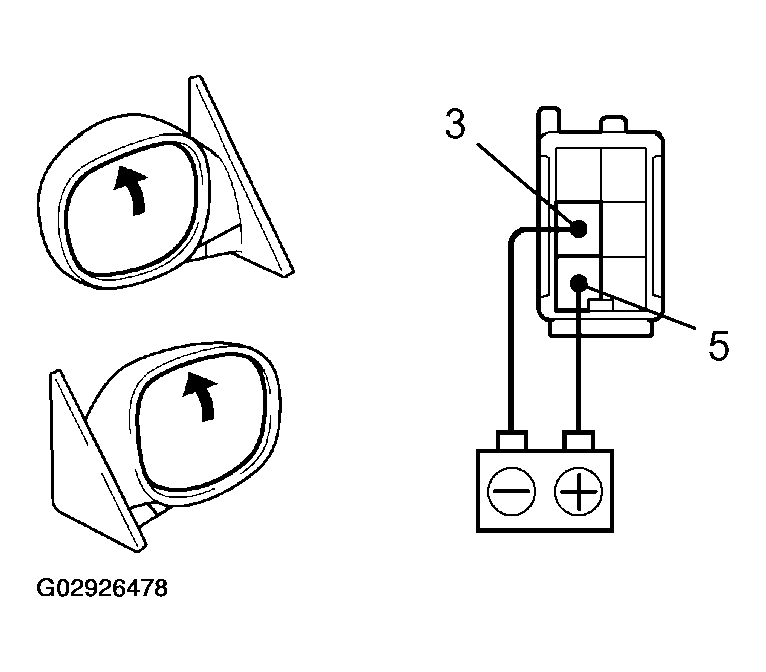

4. Reverse the polarity, and check that the mirror angles upward, as shown in Fig 5.

  Fig 5: Checking Mirror Angles Upward
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If operation is not as specified, replace the mirror assembly.
