Fuel Pressure Pulsation Damper: Replacement

  1. REMOVE AIR CLEANER HOSE
  2. DISCONNECT ACCELERATOR CABLE
  3. REMOVE FUEL PRESSURE PULSATION DAMPER
    1. Disconnect the fuel tube connector (metallic connector) (see SFI SYSTEM ).
      CAUTION:
      • Disconnect the fuel tube connector (metallic connector) after observing the precautions.
      • As there is retained pressure in the fuel pipe line, prevent it from splashing inside the engine compartment.
    2. Remove the 2 bolts and pulsation damper.
  4. REINSTALL FUEL PRESSURE PULSATION DAMPER
    1. Install the pulsation damper with the 2 bolts.

      Torque: 9 N.m (90 kgf.cm, 80 in.lbf)

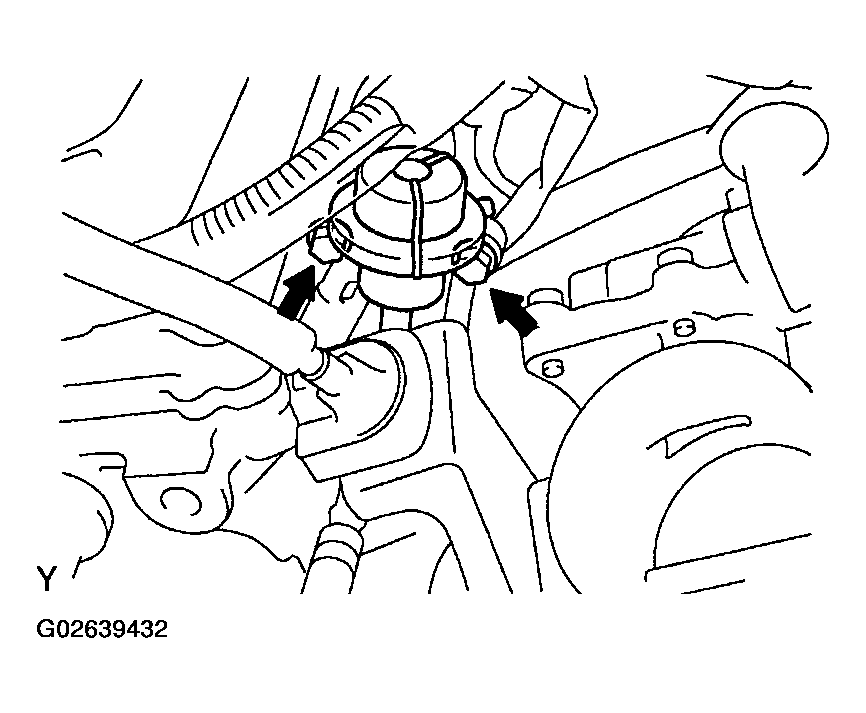

      2. Fig 1: Removing/Installing Bolts & Pulsation Damper
      G02639432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the fuel tube connector (metallic connector) (see SFI SYSTEM ).
  5. RECONNECT ACCELERATOR CABLE
  6. RECONNECT AIR CLEANER HOSE
