How To Proceed With Troubleshooting

Troubleshoot in accordance with the following procedure.

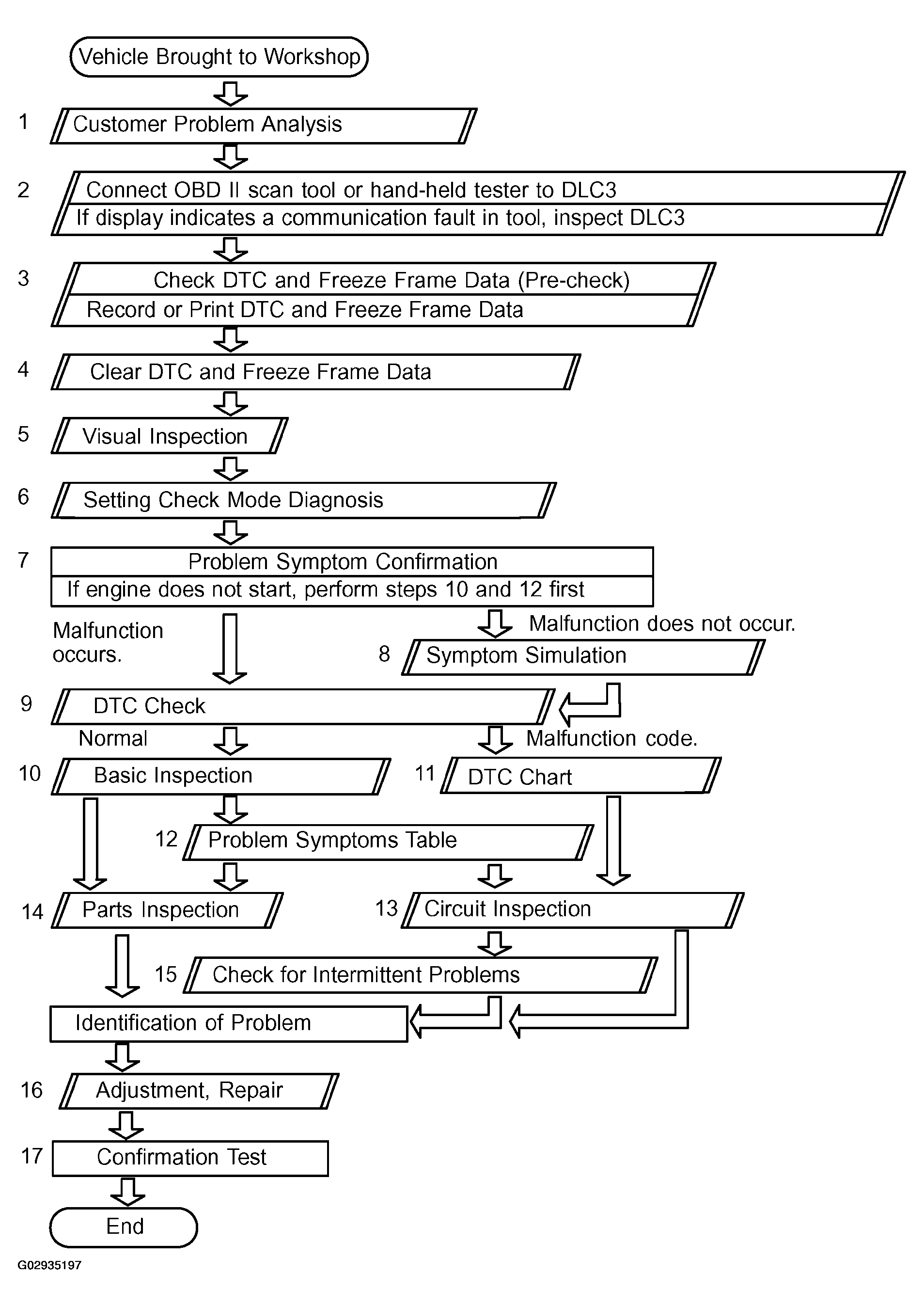

Fig 1: Troubleshooting Flowchart
G02935197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
