Automatic Transmission Shift Lever Assembly: Overhaul

  1. DISCONNECT BATTERY NEGATIVE TERMINAL
  2. REMOVE FRONT DOOR SCUFF PLATE LH (See  INSTRUMENT PANEL/METER  )
  3. REMOVE FRONT DOOR SCUFF PLATE RH (See  INSTRUMENT PANEL/METER  )
  4. REMOVE COWL SIDE TRIM BOARD LH (See  INSTRUMENT PANEL/METER  )
  5. REMOVE COWL SIDE TRIM BOARD RH (See  INSTRUMENT PANEL/METER  )
  6. REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSY LOWER LH (See  INSTRUMENT PANEL/METER  )
  7. REMOVE GLOVE COMPARTMENT DOOR STOPPER SUB-ASSY (See  INSTRUMENT PANEL/METER  )
  8. REMOVE GLOVE COMPARTMENT DOOR ASSY (See  INSTRUMENT PANEL/METER  )
  9. REMOVE FLOOR CARPET COVER CENTER LH (See  INSTRUMENT PANEL/METER  )
  10. REMOVE FLOOR CARPET COVER CENTER RH (See  INSTRUMENT PANEL/METER  )
  11. REMOVE INSTRUMENT CLUSTER FINISH PANEL CENTER NO. 1 (See  INSTRUMENT PANEL/METER  )
  12. REMOVE INSTRUMENT CLUSTER FINISH PANEL CENTER NO. 2 (See  INSTRUMENT PANEL/METER  )
  13. REMOVE SHIFT LEVER KNOB SUB-ASSY
    1. Remove the floor shift lever knob sub-assy.
    Fig 1: Removing Floor Shift Lever Knob Sub-Assembly
    G03062932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE POSITION INDICATOR HOUSING ASSY
    1. Using a screwdriver, remove the position indicator housing assy from the instrument cluster finish panel assy center.
    Fig 2: Removing Position Indicator Housing Assembly
    G03062933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSY CENTER (See  INSTRUMENT PANEL/METER  )
  16. REMOVE SHIFT LEVER CAP
    1. Using a small screwdriver, remove the shift lever cap from the position indicator housing assy.
    Fig 3: Removing Shift Lever Cap
    G03062934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY LOWER CENTER (See  INSTRUMENT PANEL/METER  )
  18. DISCONNECT TRANSMISSION CONTROL CABLE ASSY
    1. Using a screwdriver, disconnect the cable end from the shift lever assy.
    2. Using a small screwdriver, disconnect the cable outer of transmission control cable assy from the shift lever assy.

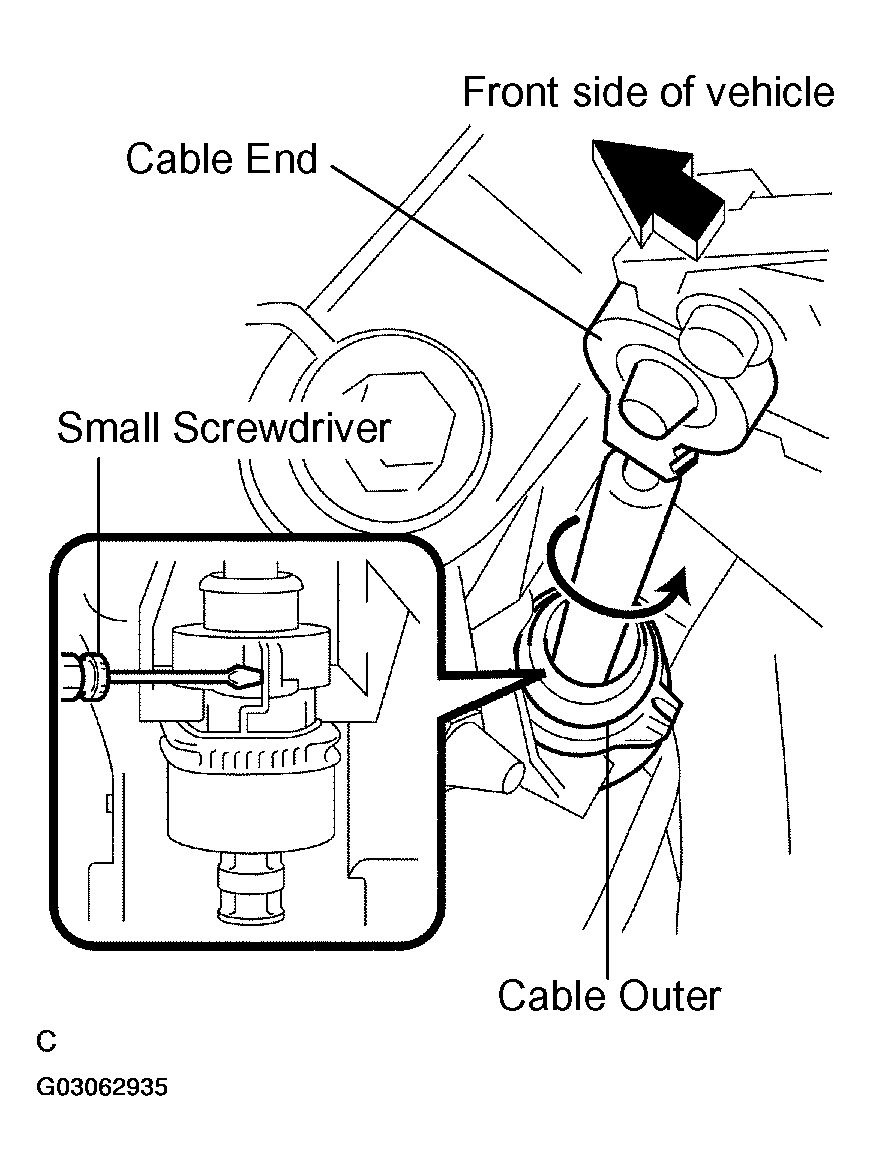

    Fig 4: Disconnecting Transmission Control Cable Assembly
    G03062935Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE SHIFT LEVER ASSY
    1. Disconnect the 2 connectors.
    2. Remove the 4 bolts and disconnect the shift lever assy from the vehicle.

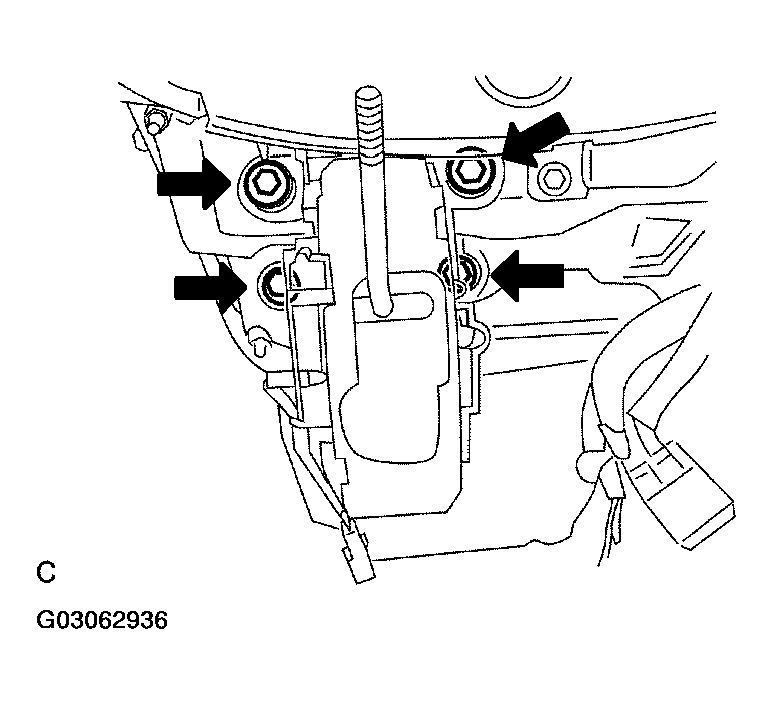

    Fig 5: Removing Shift Lever Assembly
    G03062936Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE INDICATOR LAMP WIRE SUB-ASSY
    1. Remove the indicator lamp wire sub assy from the position indicator light guide.

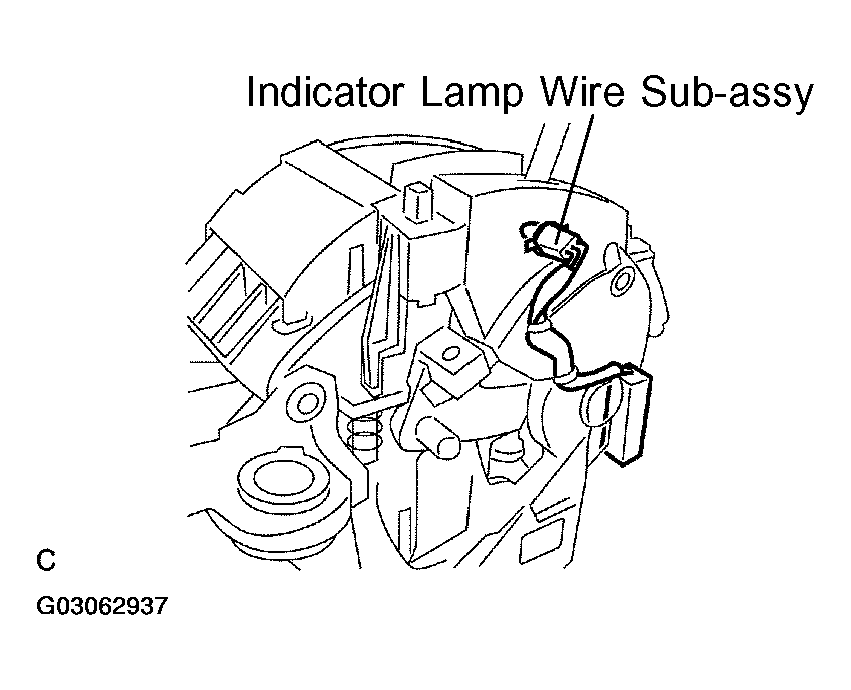

    Fig 6: Removing Indicator Lamp Wire Sub-Assembly
    G03062937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE POSITION INDICATOR LAMP BULB
    1. Remove the shift position indicator lamp bulb from the indicator lamp wire sub-assy.
  22. REMOVE POSITION INDICATOR SLIDE COVER
    1. Remove the shift lever slide cover guide from the shift lever assy.

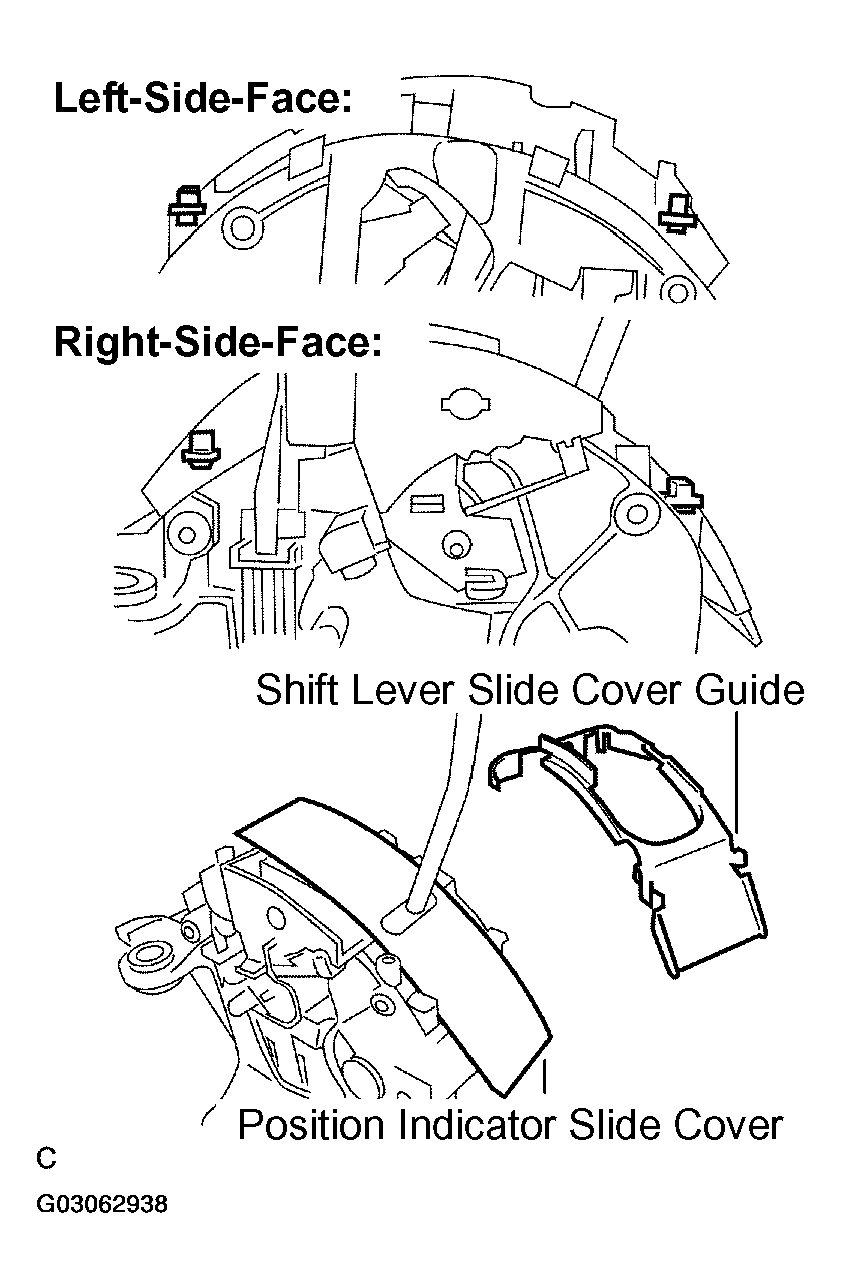

      Fig 7: Removing Shift Lever Slide Cover Guide From Shift Lever Assembly
      G03062938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the position indicator slide cover from the shift lever assy.
    Fig 8: Removing Position Indicator Slide Cover From Shift Lever Assembly
    G03062939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE POSITION INDICATOR SLIDE COVER
    1. Remove the position indicator slide cover No. 2 from the position indicator slide cover.
    Fig 9: Removing Position Indicator Slide Cover No. 2
    G03062940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. INSTALL POSITION INDICATOR SLIDE COVER
    1. Install the position indicator slide cover No. 2 to the position indicator slide cover.
    Fig 10: Installing Position Indicator Slide Cover No. 2
    G03062941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. INSTALL POSITION INDICATOR SLIDE COVER
    1. Install the position indicator slide cover to the shift lever assy.
    2. Install the shift lever slide cover guide to the shift lever assy.
    Fig 11: Installing Position Indicator Slide Cover
    G03062942Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. INSTALL POSITION INDICATOR LAMP BULB
    1. Install the shift position indicator lamp bulb to the indicator lamp wire sub-assy.
  27. INSTALL INDICATOR LAMP WIRE SUB-ASSY
    1. Install the indicator lamp wire sub-assy to the shift lever assy.
    Fig 12: Installing Indicator Lamp Wire Sub-Assembly
    G03062943Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. INSTALL SHIFT LEVER ASSY
    1. Install shift lever assy to the vehicle with the 4 bolts.

      Torque: 21 N.m (214 kgf.cm, 12.6 ft.lbf)

      NOTE: Into datum hole of shift lever into datum pin of instrument lower.
    2. Connect the 2 connectors to the shift lever assy.

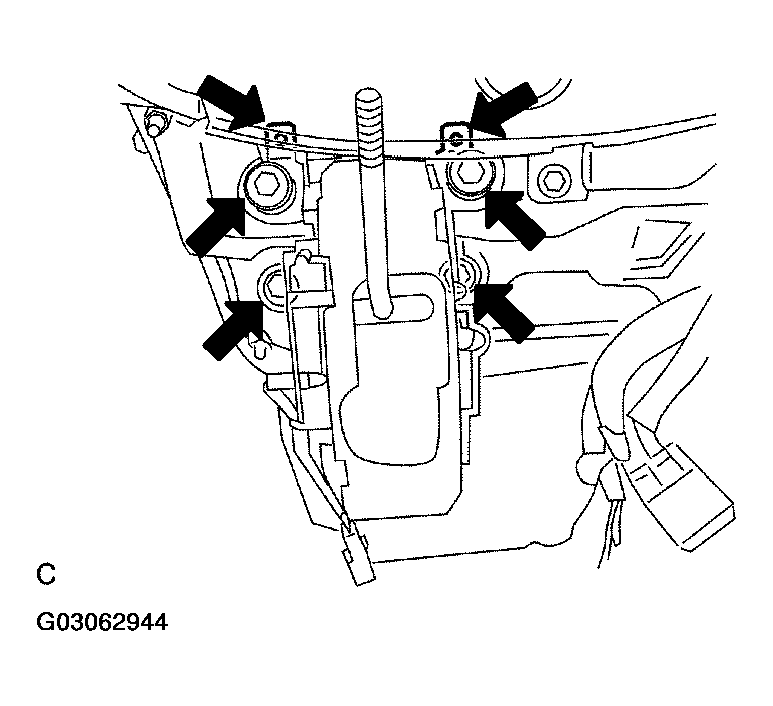

    Fig 13: Installing Shift Lever Assembly
    G03062944Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. CONNECT TRANSMISSION CONTROL CABLE ASSY
    1. Install the cable outer to the shift lever plate.
      Fig 14: Installing Cable Outer To Shift Lever Plate
      G03062945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. When installing the transmission control cable assy on the shift lever plate, place the projection of the shift cable downward to fit in the groove of the shift lever plate (Leftside figure in Fig 15).

      Confirm that the spring in the shift cable outer has moved to the position (Rightside figure in Fig 15) shown in the illustration.

      Confirm that the shift cable is installed on the shift lever plate properly.

    NOTE:
    • To prevent torsion of the inner cable, the projection on the eye end should face rear.
    • Push the cable end to the bottom of the pin.

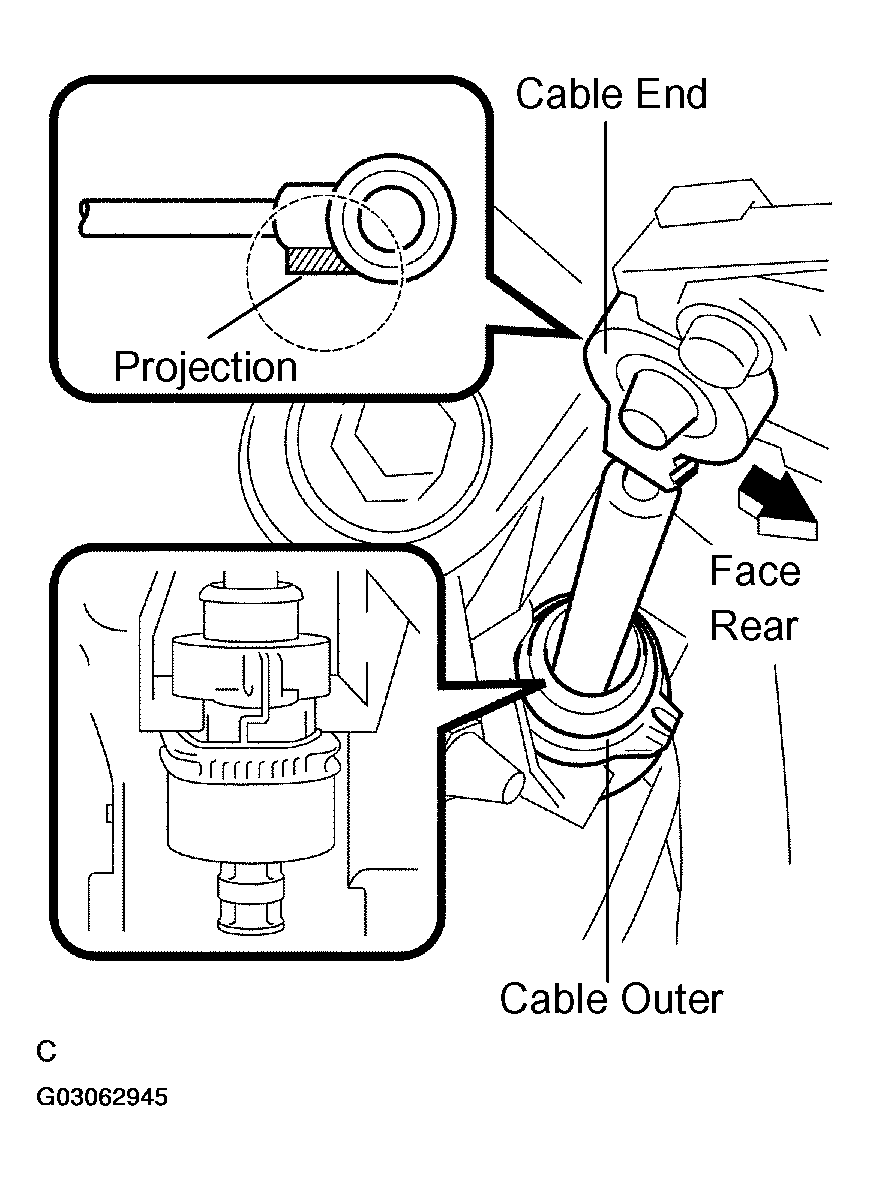

    Fig 15: Identifying Correct Position Of Spring
    G03062946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY LOWER CENTER
  31. INSTALL SHIFT LEVER CAP
    1. Install the shift lever cap to the floor shift position indicator housing assy.
    Fig 16: Installing Shift Lever Cap
    G03062947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. INSTALL POSITION INDICATOR HOUSING ASSY
    1. Install the position indicator housing assy to the instrument cluster finish panel assy center.
    Fig 17: Installing Position Indicator Housing Assembly
    G03062948Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. INSTALL SHIFT LEVER KNOB SUB-ASSY
    1. Install the shift lever knob sub-assy.
    Fig 18: Installing Shift Lever Knob Sub-Assembly
    G03062949Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. ADJUST SHIFT LEVER POSITION (See  ADJUSTMENT  )
  35. INSPECT SHIFT LEVER POSITION (See  ADJUSTMENT  )
  36. INSPECT CHECK KEY INTERLOCK OPERATION (See  ON-VEHICLE INSPECTION  )
  37. INSPECT CHECK SHIFT LOCK OPERATION (See  ON-VEHICLE INSPECTION  )
  38. INSPECT CHECK SHIFT LOCK RELEASE BUTTON OPERATION (See  ON-VEHICLE INSPECTION  )
