Engine Control Module (ECM): Components

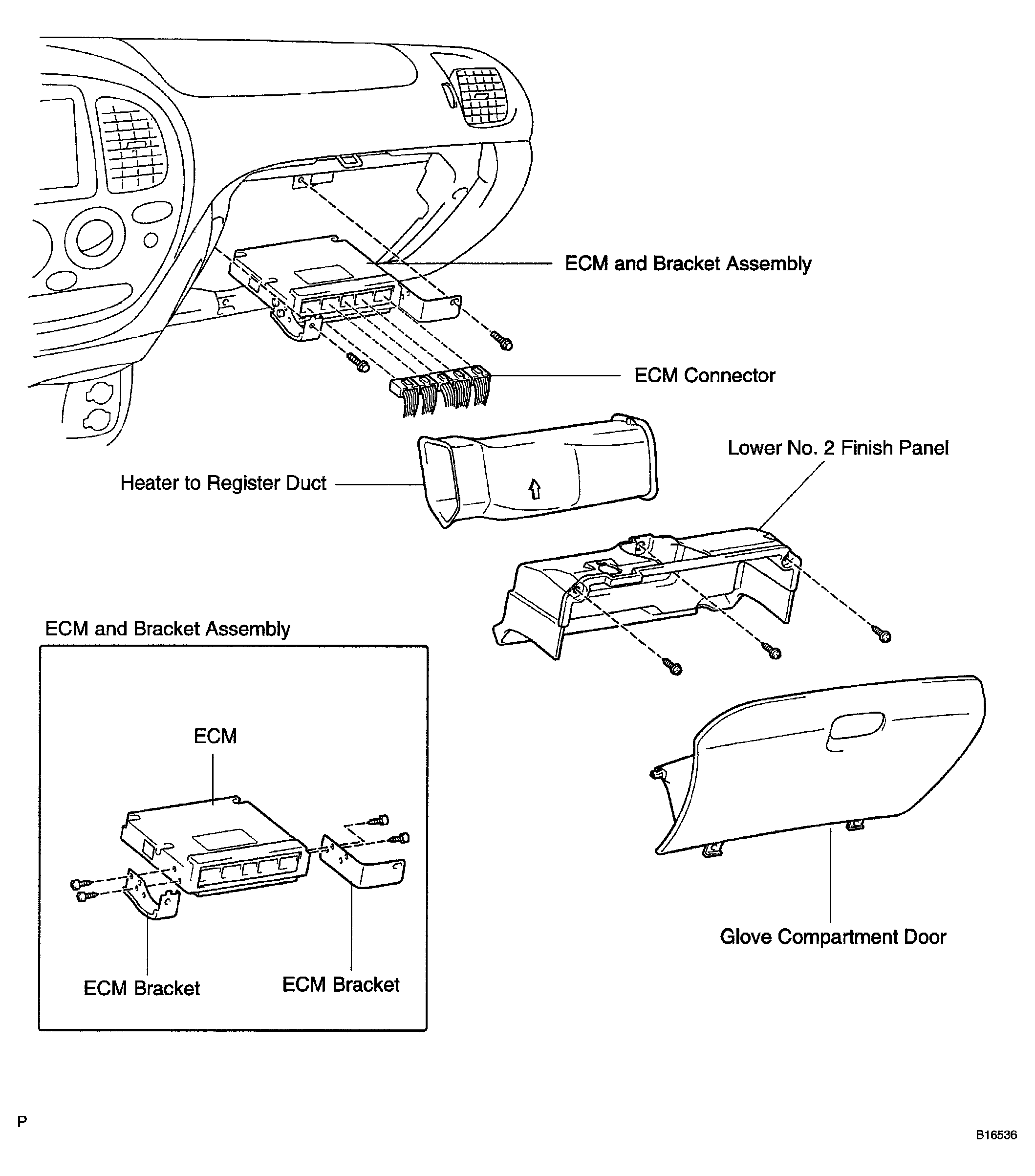

Fig 1: Identifying Engine Control Module (ECM) Components
G04208023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
