Fuel Pump: Installation

INSTALL FUEL PUMP FILTER TO FUEL PUMP
Using a small screwdriver, push in the clip.

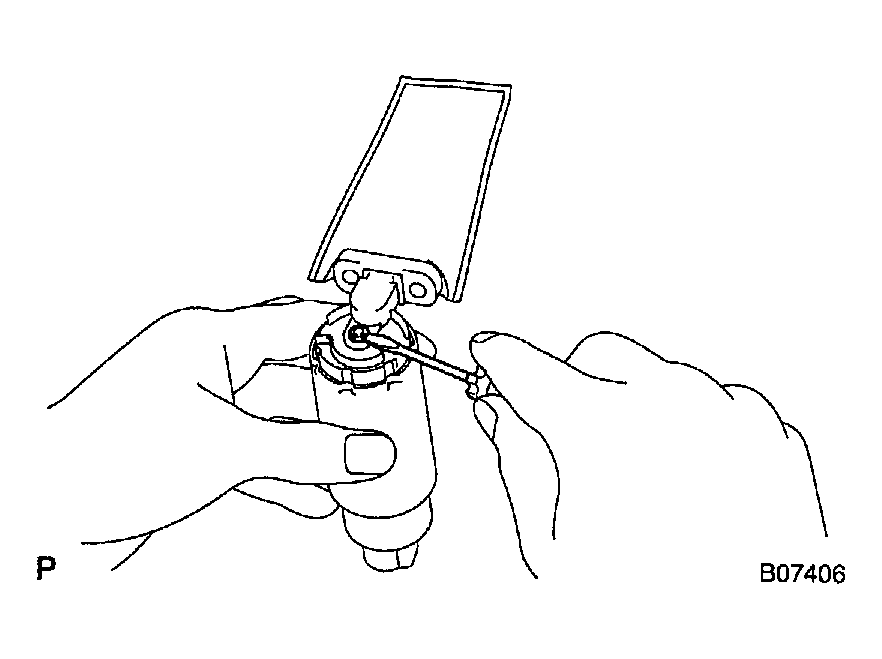

Fig 1: Installing Clip
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FUEL PUMP TO SUCTION PLATE
1. Install the rubber cushion to the fuel pump.
2. Connect the fuel hose to the outlet port of the fuel pump.
3. Install the fuel pump by pushing the lower side of the fuel pump.
4. Connect the lead wire connector to the fuel pump.

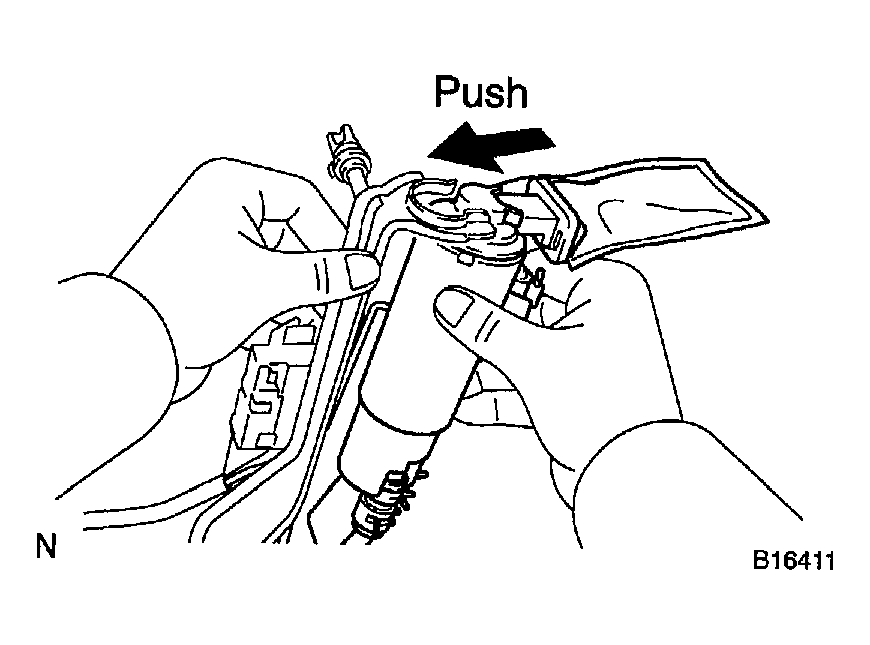

Fig 2: Installing Fuel Pump
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FUEL PUMP, SENDER GAUGE AND SUCTION PLATE ASSEMBLY TO FUEL TANK
1. Install a new gasket to the suction plate.
2. Insert the fuel pump, sender gauge and suction plate assembly into the fuel tank.
3. Install the suction plate with the 8 bolts.
  Torque: 3.5 N.m (35 kgf.cm, 31 in.-lbf)

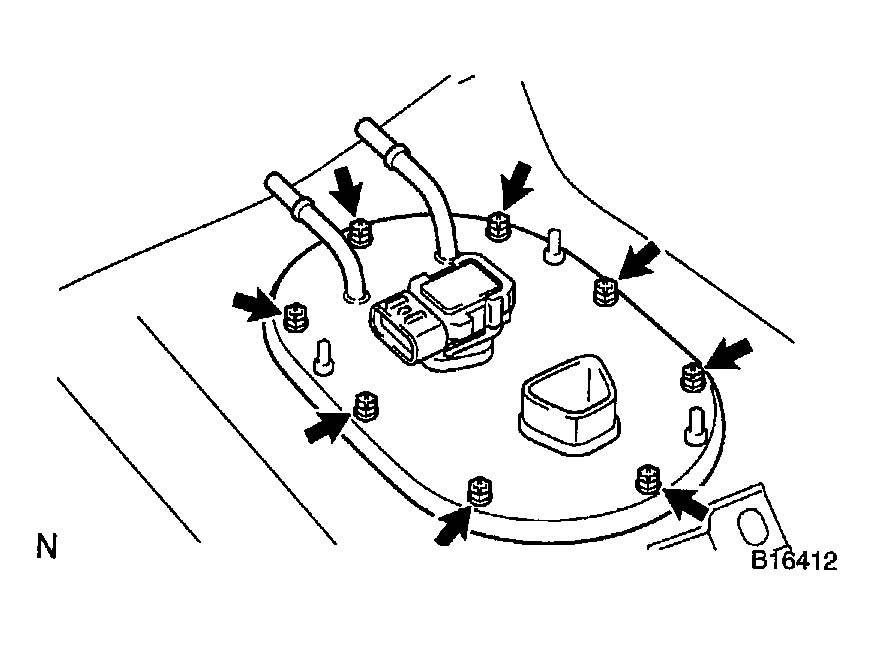

Fig 3: Installing Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT FUEL MAIN TUBE AND RETURN TUBE TO SUCTION PLATE (See PRECAUTION )
CONNECT FUEL PUMP & SENDER GAUGE CONNECTOR
INSTALL FUEL TANK (See FUEL TANK AND LINE )
CHECK FOR FUEL LEAKS (See PRECAUTION )

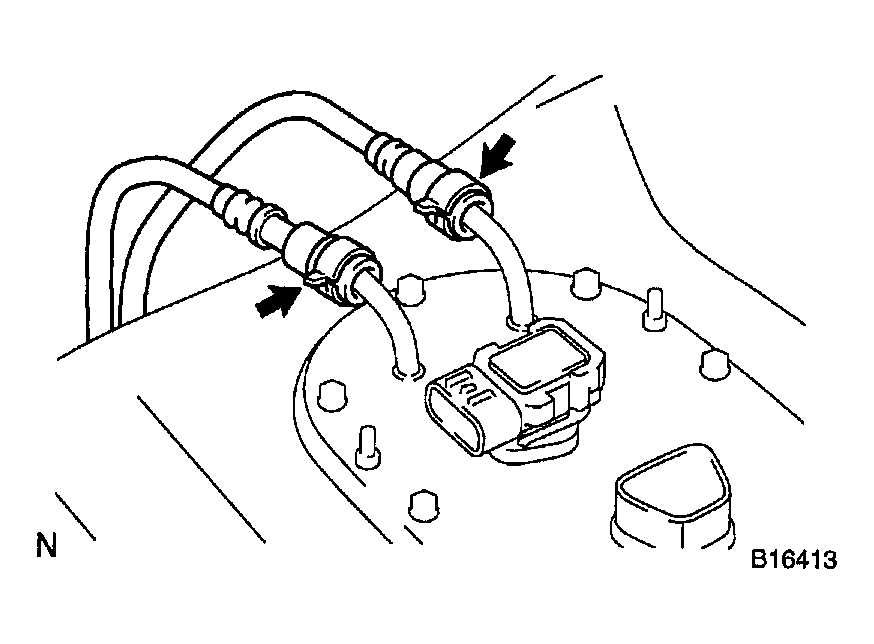

Fig 4: Connecting Fuel Main Tube And Return Tube To Suction Plate
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
