Vehicle Identification And Engine Serial Number

  1. VEHICLE IDENTIFICATION NUMBER

    The vehicle identification number is stamped on the vehicle identification number plate and certification label.

    1. Vehicle Identification Number Plate
    2. Certification Label

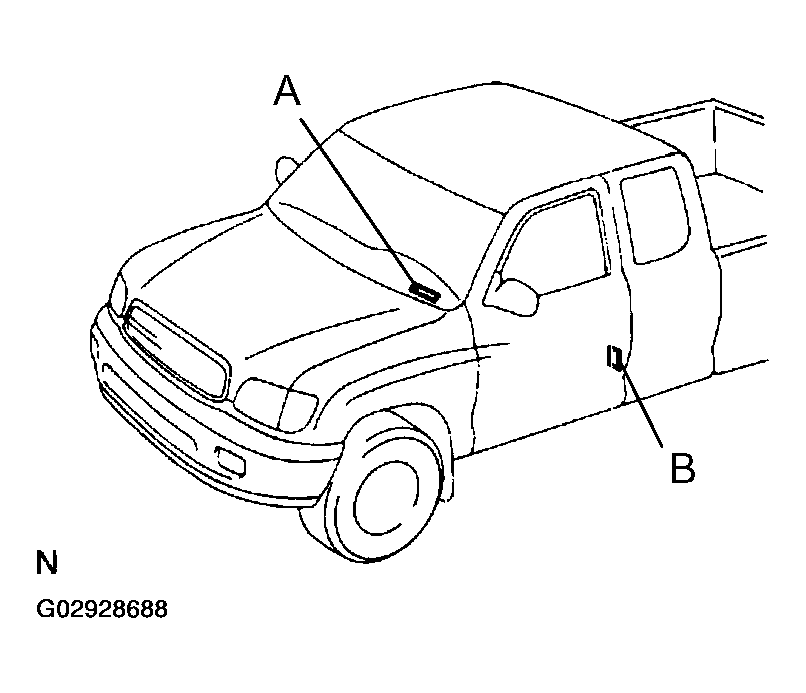

    Fig 1: Identifying Vehicle Number
    G02928688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. ENGINE SERIAL NUMBER

    The engine serial number is stamped on the engine block, as shown in the illustration.

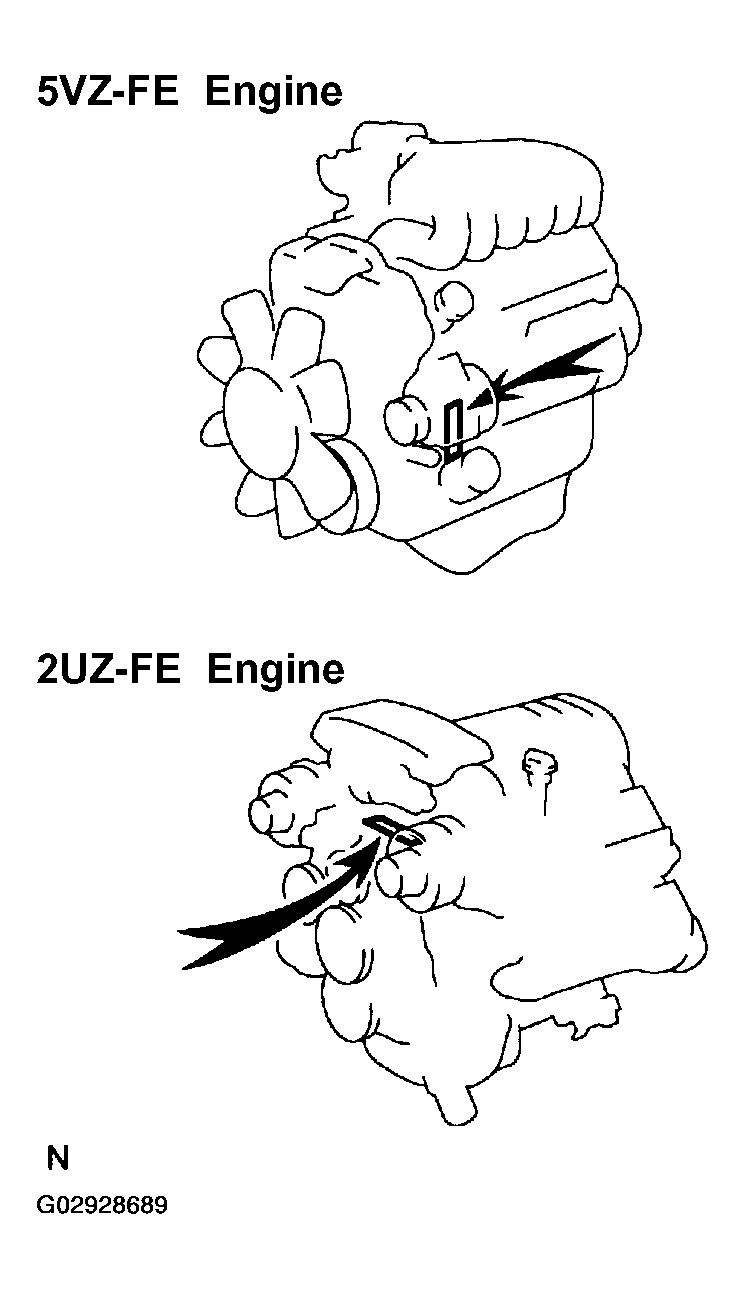

    Fig 2: Locating Engine Serial Number
    G02928689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
