Inspection Procedure
- CHECK MULTIPLEX NETWORK MASTER SWITCH ASSY

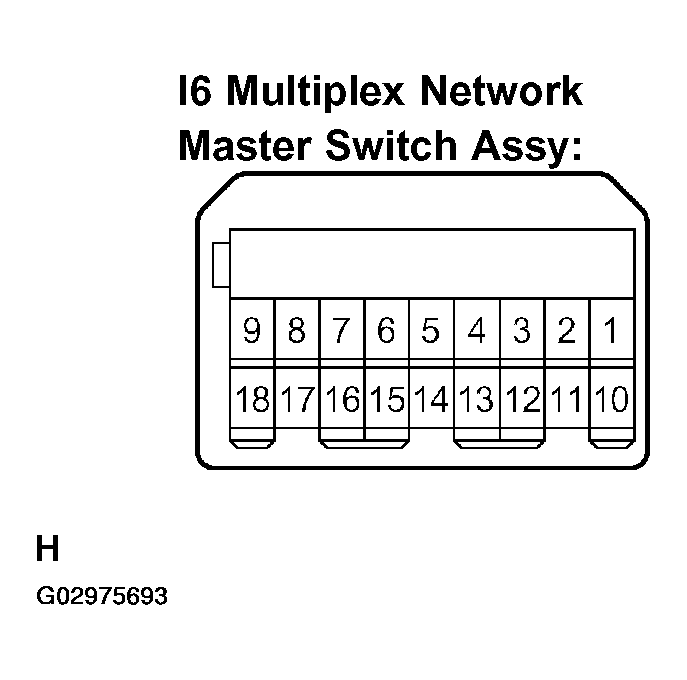

- Remove the multiplex network master switch with connector still connected.
- Measure the voltage of the wire harness side connector.
Standard:
SPECIFIED CONDITIONSwitch Condition Tester Connection Specified Condition I6-15 - Body ground Window lock switch is OFF --> ON 0 V --> 2 V or less
- NG: REPLACE MULTIPLEX NETWORK MASTER SWITCH ASSY
- OK: Go to next step.
- CHECK WIRE HARNESS (MULTIPLEX NETWORK MASTER SWITCH ASSY - MULTIPLEX NETWORK SWITCH ASSY)

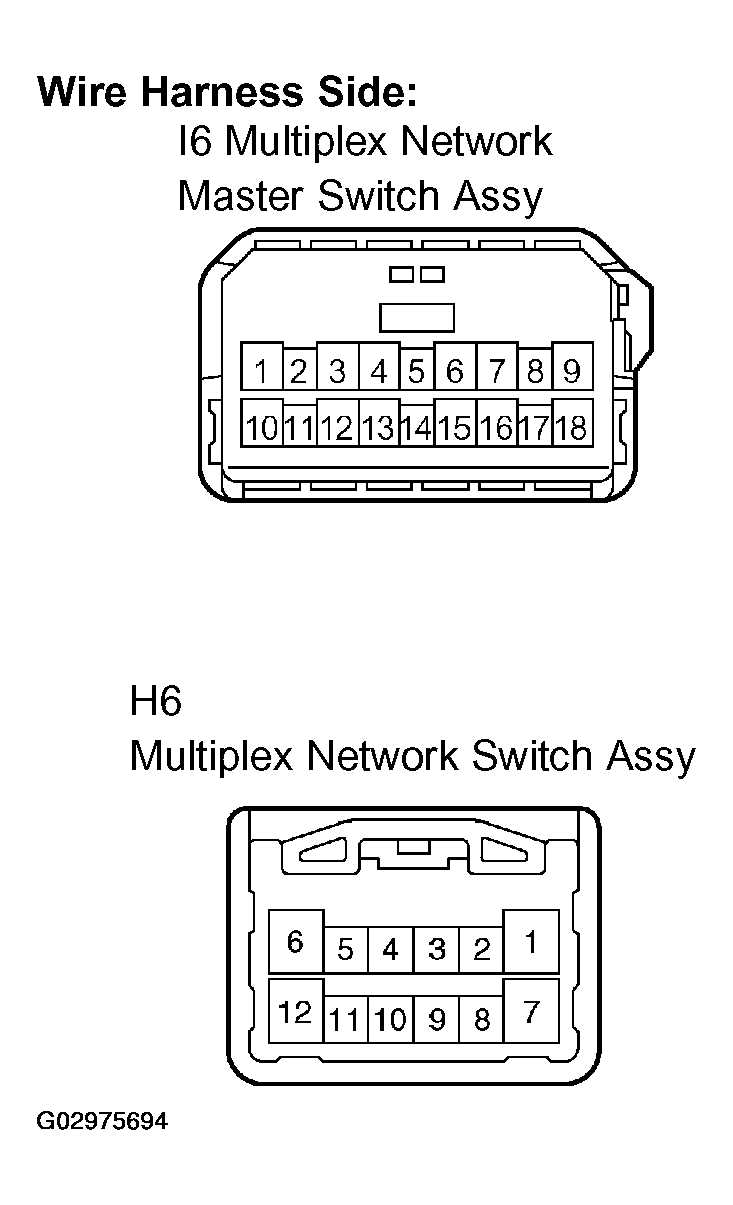

- Disconnect the I6 and H6 connectors.
- Measure the resistance of the wire harness side connector.
Standard:
SPECIFIED CONDITIONSwitch Condition Tester Connection Specified Condition I6-15 - H6-11 Always Below 1 Ω I6-15 - Body ground Always 10 kΩ or higher
- NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
- OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE (See PROBLEM SYMPTOMS TABLE )
