Engine Mechanical: Preparation: SST

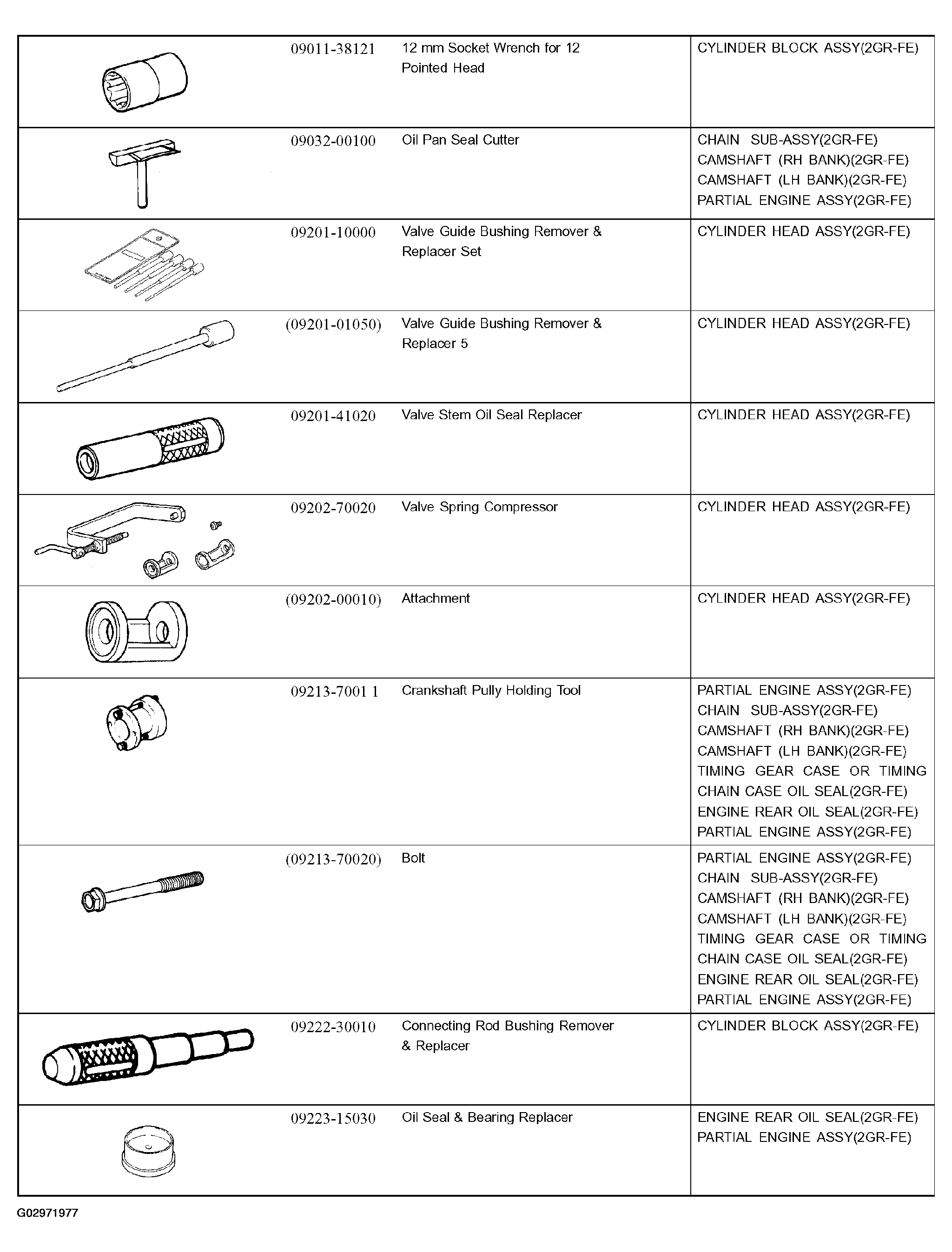

Fig 1: Identifying SST Tool (1 Of 3)
G02971977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

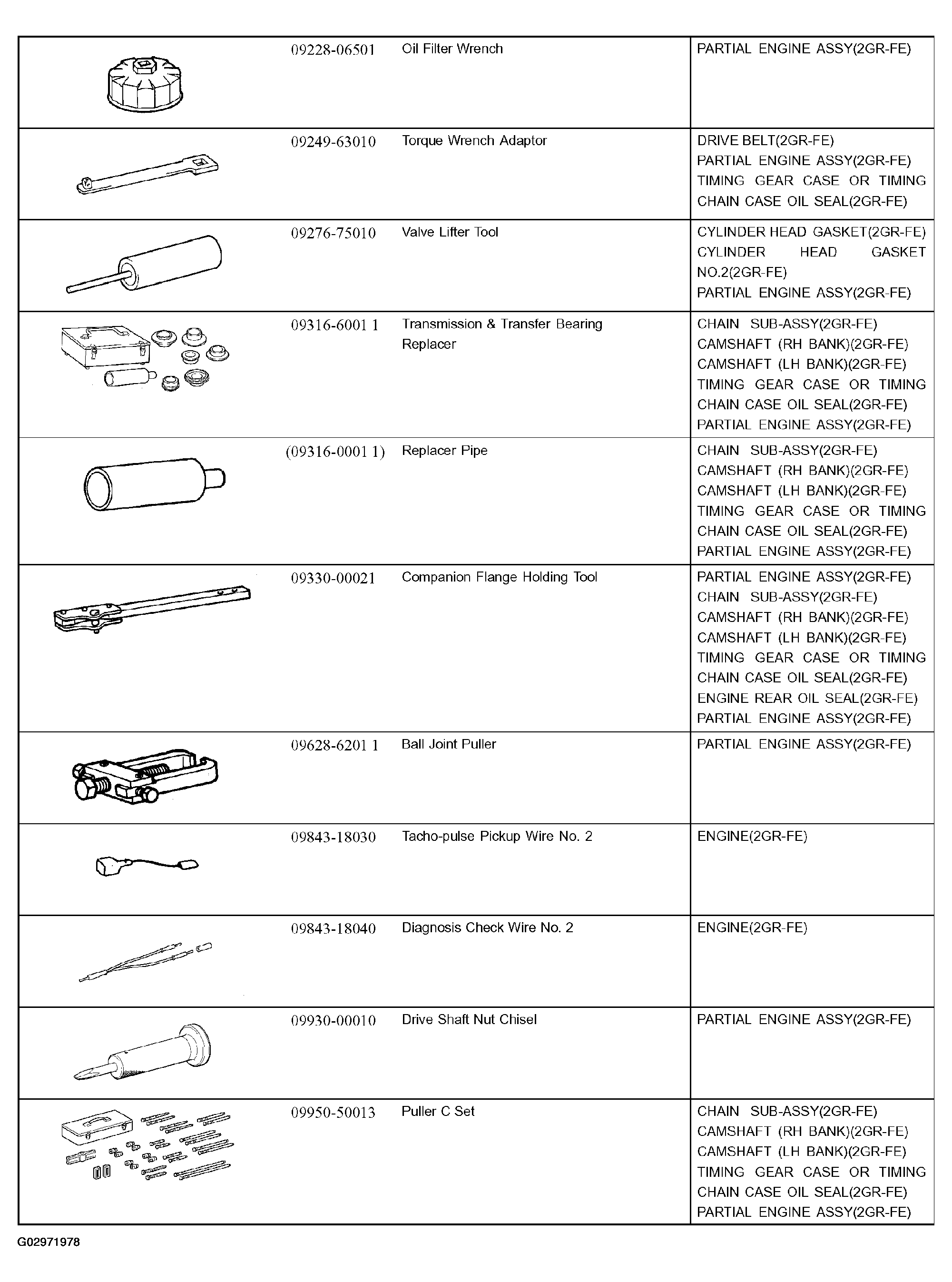

Fig 2: Identifying SST Tool (2 Of 3)
G02971978Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

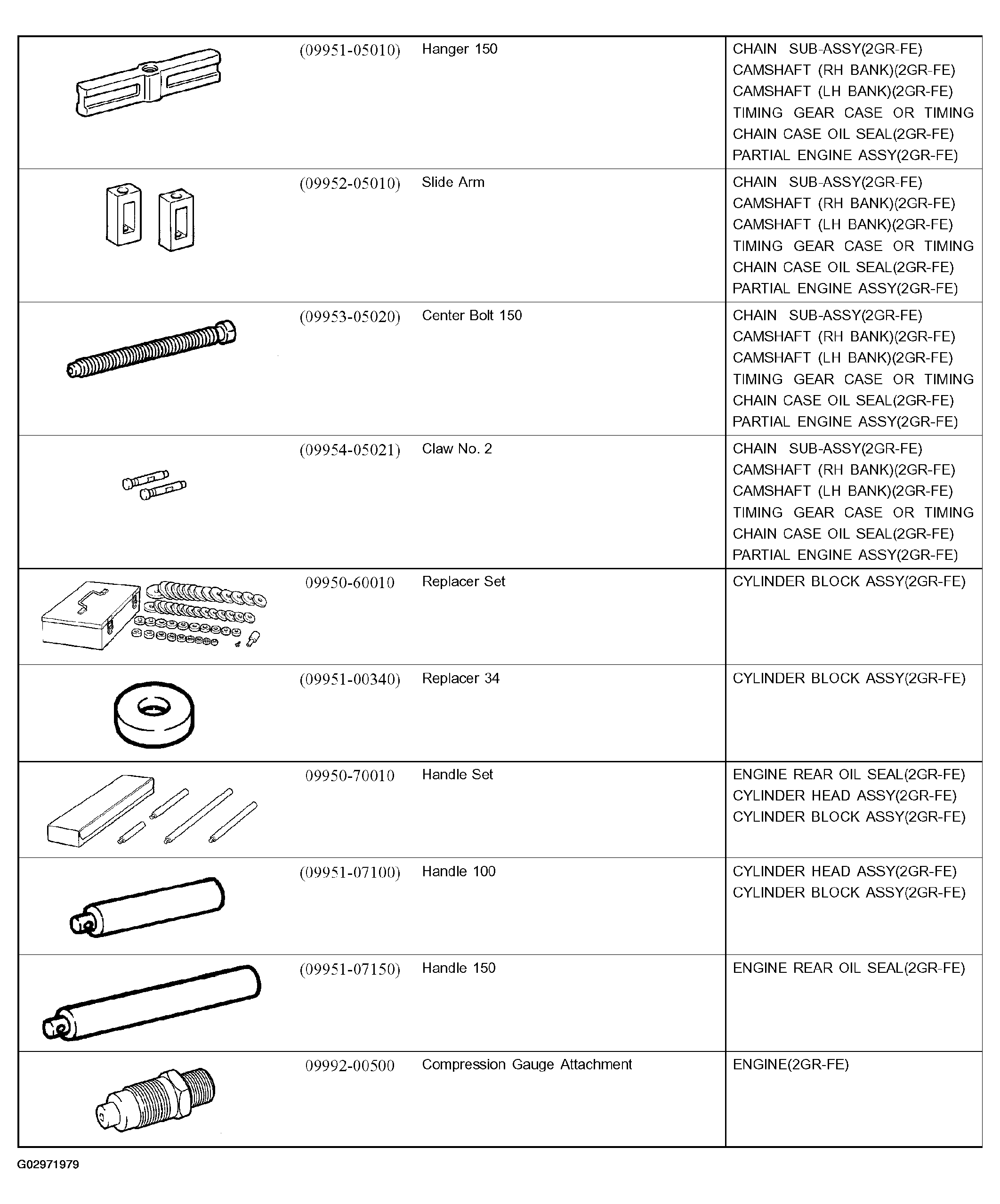

Fig 3: Identifying SST Tool (3 Of 3)
G02971979Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

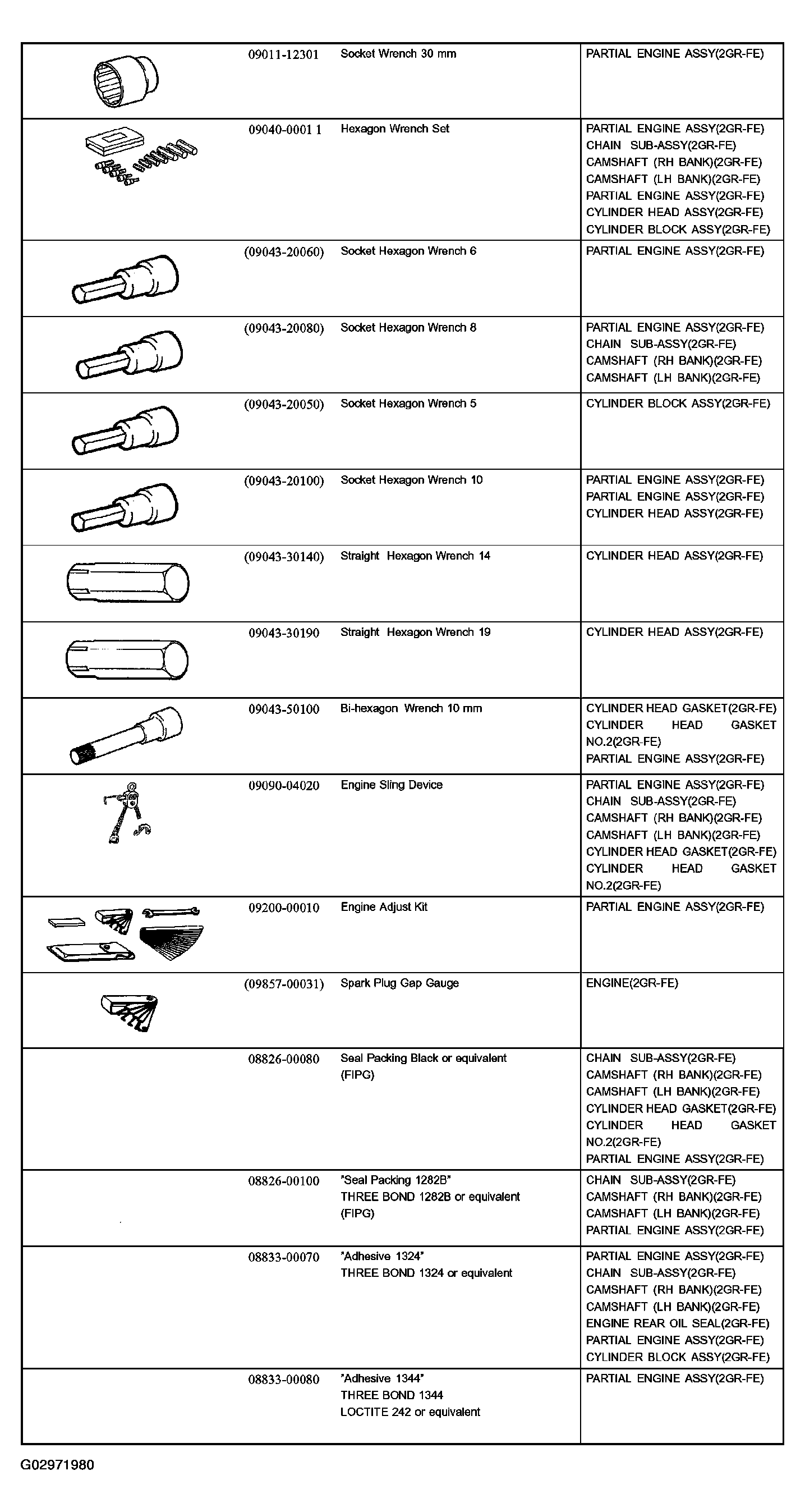

Fig 4: Identifying Recommended Tools
G02971980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
