Inspection Procedure
- CHECK MULTIPLEX NETWORK MASTER SWITCH ASSY

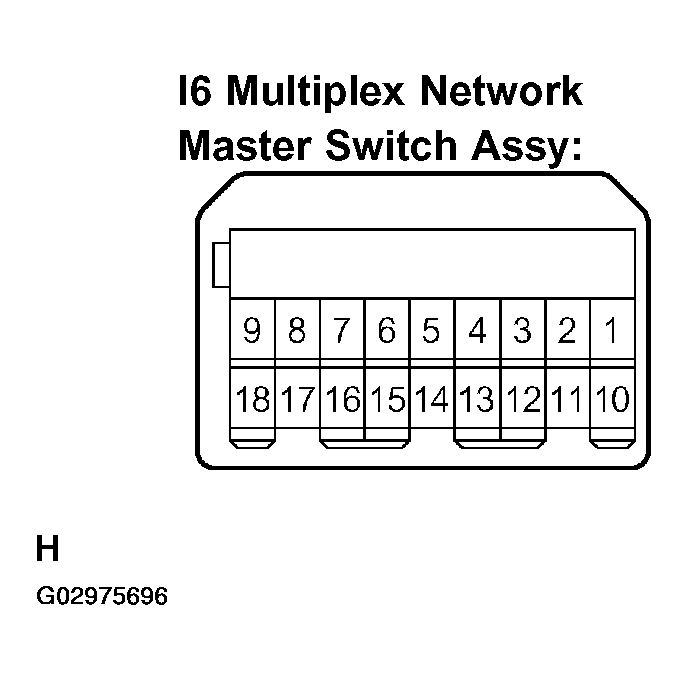

- Remove the multiplex network master switch with connector still connected.
- Measure the voltage of the wire harness side connector.
Standard:
SPECIFIED CONDITIONSwitch Condition Tester Connection Specified Condition I6-13 - Body ground Ignition switch ON 10 to 14 V
- NG: REPLACE MULTIPLEX NETWORK MASTER SWITCH ASSY
- OK: Go to next step.
- CHECK WIRE HARNESS (MULTIPLEX NETWORK MASTER SWITCH ASSY - MULTIPLEX NETWORK SWITCH ASSY)

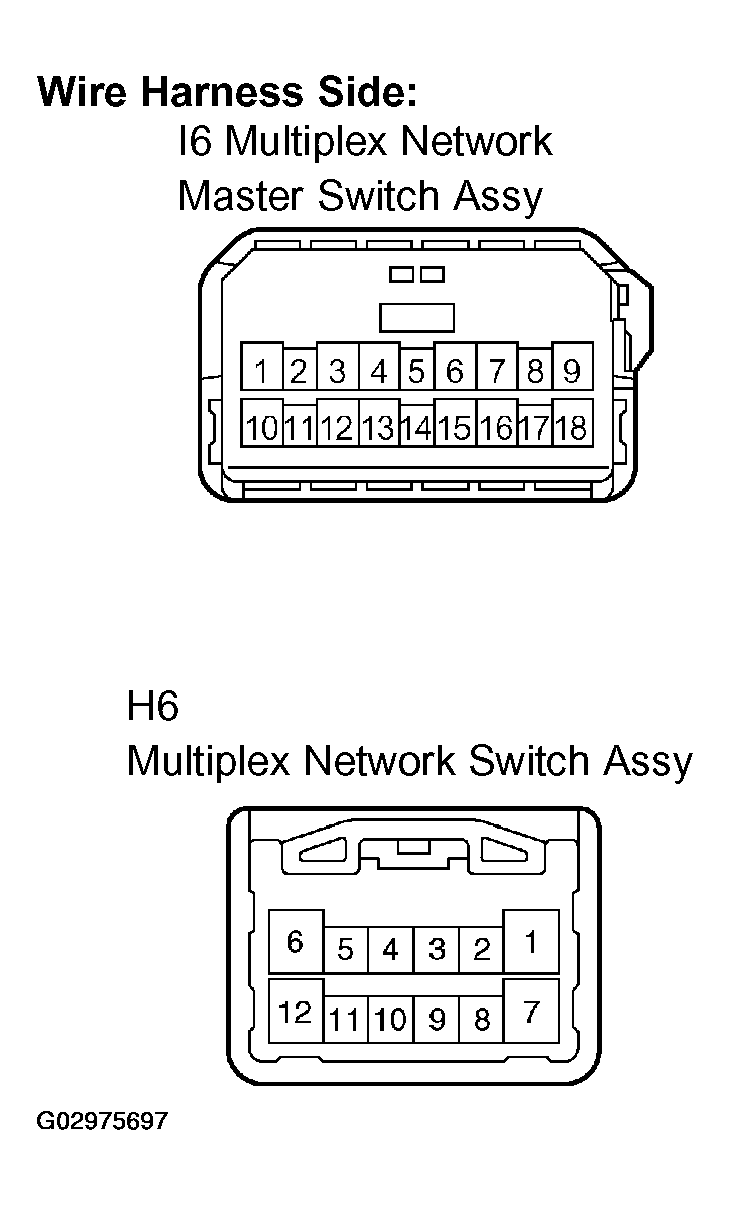

- Disconnect the I6 and H6 connectors.
- Measure the resistance of the wire harness side connector.
Standard:
SPECIFIED CONDITIONSwitch Condition Tester Connection Specified Condition I6-13 - H6-2 Always Below 1 Ω I6-13 - Body ground Always 10 kΩ or higher
- NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
- OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE (See PROBLEM SYMPTOMS TABLE )
