On-Vehicle Inspection

1. Check that the front passenger side power window and rear power windows' operation are disabled when the window lock switch of the multiplex network master switch assy is pressed.
2. Check that the front passenger side power window and rear power windows can be operated when the window lock switch is pressed again.

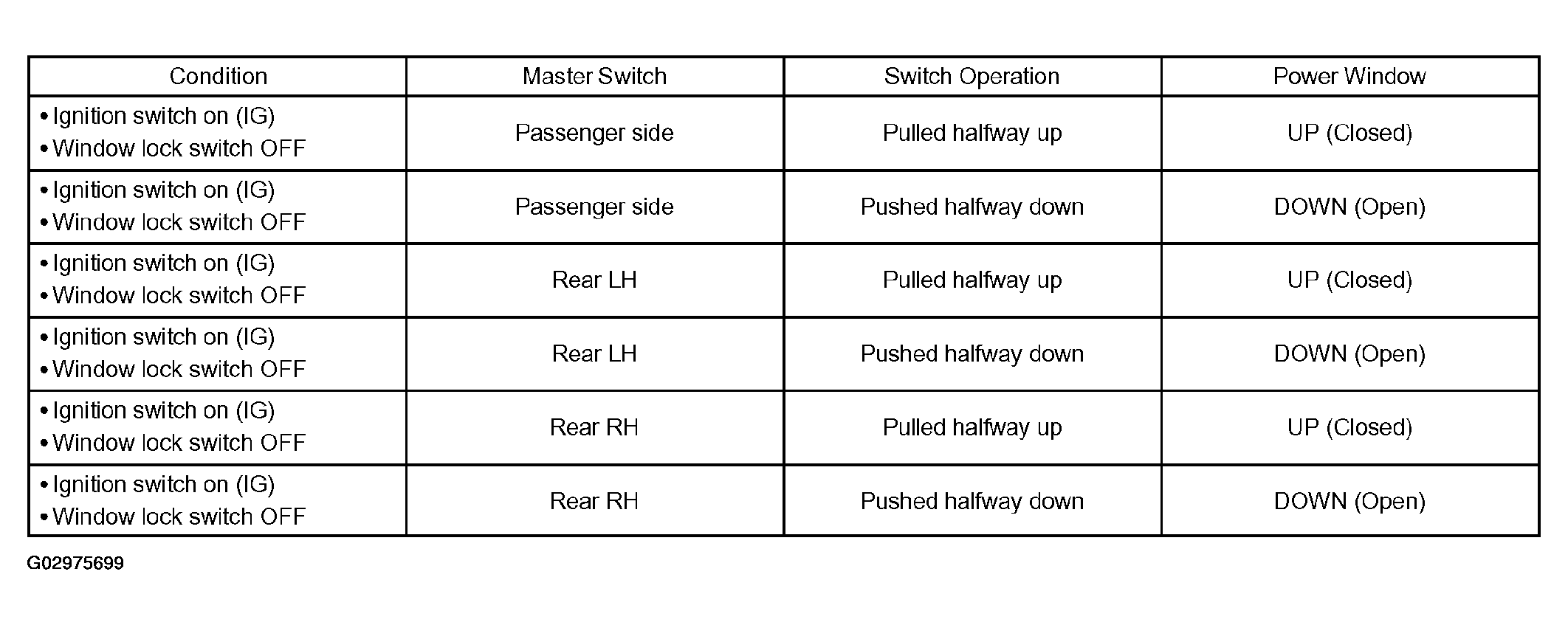

   Fig 1: Checking Window Lock Switch

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Check that the driver side power window operates as follows:

   OK:

   SPECIFIED CONDITION



   Condition	Master Switch	Switch Operation	Power Window
   Ignition switch on (IG)	Driver side	Pulled halfway up	UP (Closed)
   Ignition switch on (IG)	Driver side	Pushed halfway down	DOWN (Open)

2. Check that the power windows except the driver side power window operate as follows:

   OK:

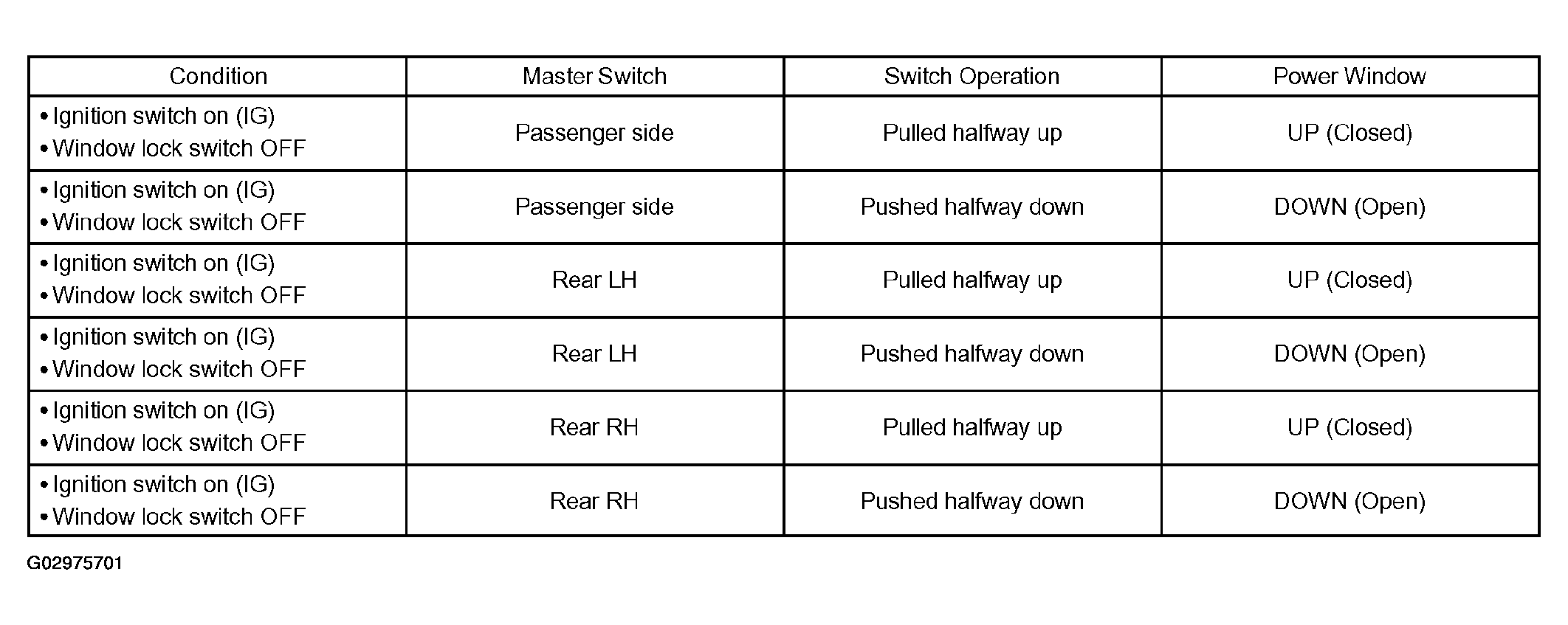

   Fig 2: Identifying Driver Side Power Window Operating Procedure

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Check that the driver side power window operates as follows:

   OK:

   SPECIFIED CONDITION



   Condition	Master Switch	Switch Operation	Power Window
   Ignition switch on (IG)	Driver side	Pulled fully up	AUTO UP (Fully closed)
   Ignition switch on (IG)	Driver side	Pushed fully down	AUTO DOWN (Fully open)

2. Check that the power windows except the driver side power window operate as follows:

   OK:

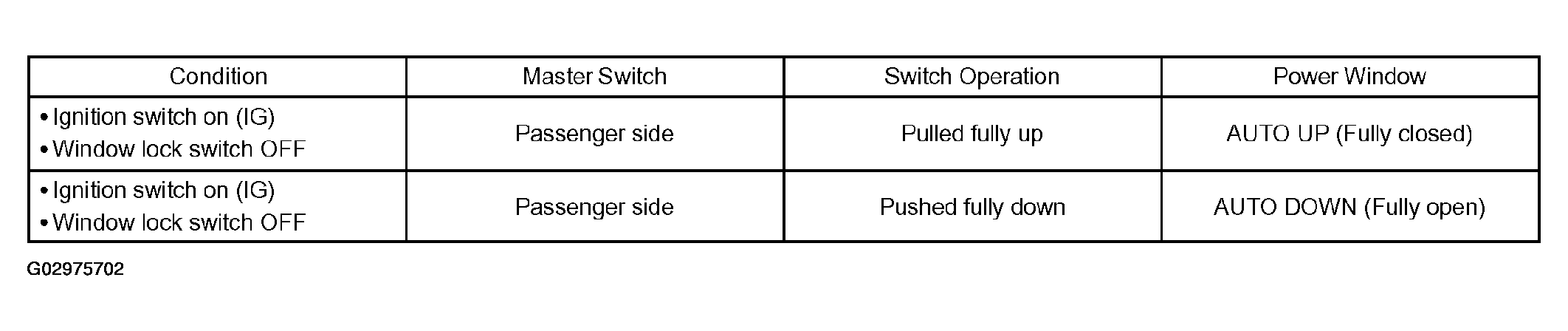

   Fig 3: Checking Auto Up/Down Function

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Check the power windows except the driver side power window operate as follows:

   OK:

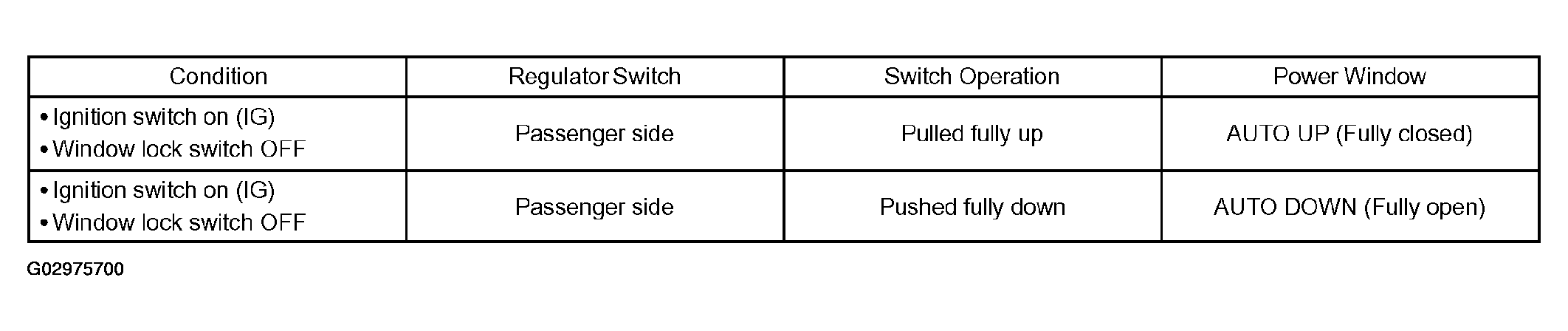

   Fig 4: Checking Remote Manual Up/Down Function

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Check that the power windows except the driver side power window operate as follows:

   OK:

   Fig 5: Checking Remote Auto Up/Down Function

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

The jam protection function prevents any part of your body from getting caught by accident between the door frame and the door glass during power window operation.

1. Check that the door glass goes down by approximately 50 mm (1.97 in.) right when something gets caught between the door frame and door glass during power window operation. However, when the opening between the door frame and the door glass is less than 200 mm (7.87 in.), the door glass continues to go down and does not stop until an opening of 200 mm (7.87 in.) is achieved.

   Operative conditions:

   • AUTO UP (FRONT DOORS)
   • AUTO UP/MANUAL UP function after the ignition switch is turned of (FRONT DOORS)

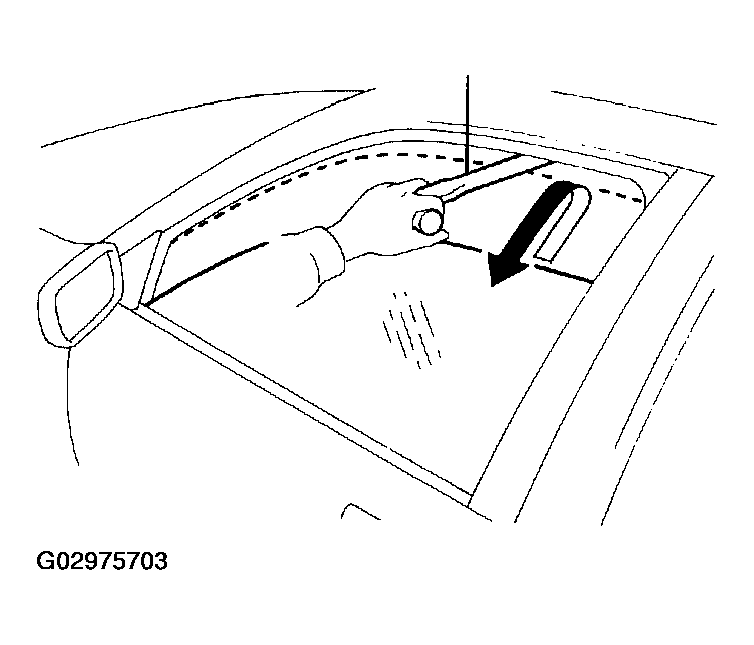

     Fig 6: Checking Jam Protection Function

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
