Inspection Procedure
- INSPECT POWER WINDOW REGULATOR MOTOR ASSY (FRONT PASSENGER SIDE)
- Remove the power window regulator motor assy.

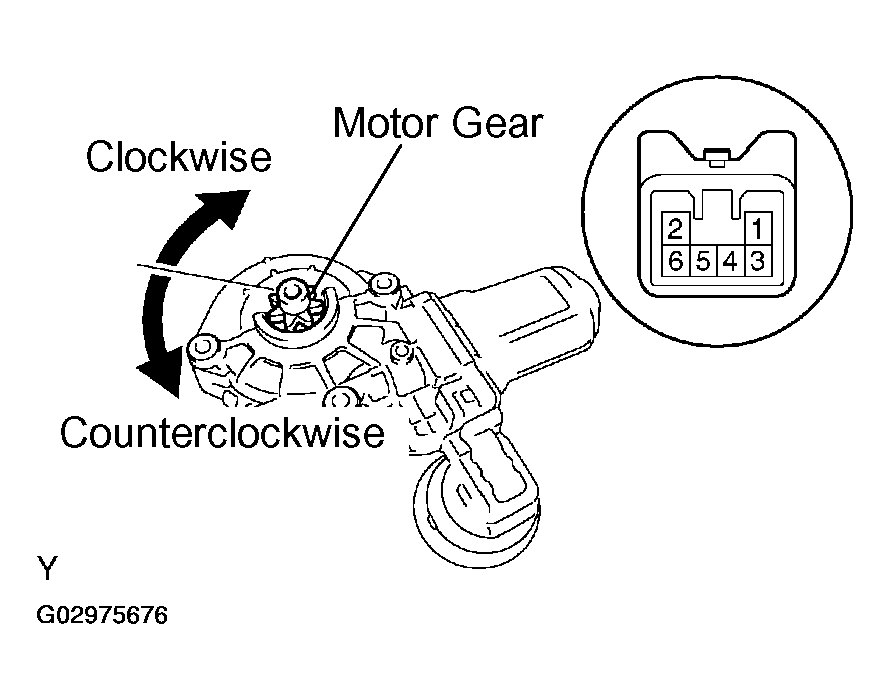

- Apply battery voltage to the motor connector according to the table below.NOTE: Do not apply battery voltage to any terminals except terminals 1 and 2.
- Check that the motor rotates smoothly.
OK:
SPECIFIED CONDITIONMeasurement Condition Specified Condition Battery positive (+) --> Terminal 1 (D) Motor gear rotates clockwise Battery negative (-) --> Terminal 2 (U) Motor gear rotates clockwise Battery positive (+) --> Terminal 2 (U) Motor gear rotates counterclockwise Battery negative (-) --> Terminal 1 (D) Motor gear rotates counterclockwise
- NG: REPLACE POWER WINDOW REGULATOR MOTOR ASSY (PASSENGER SIDE)
- OK: Go to next step.
- CHECK WIRE HARNESS (POWER WINDOW REGULATOR MOTOR ASSY (FRONT PASSENGER SIDE) - MULTIPLEX NETWORK SWITCH ASSY)

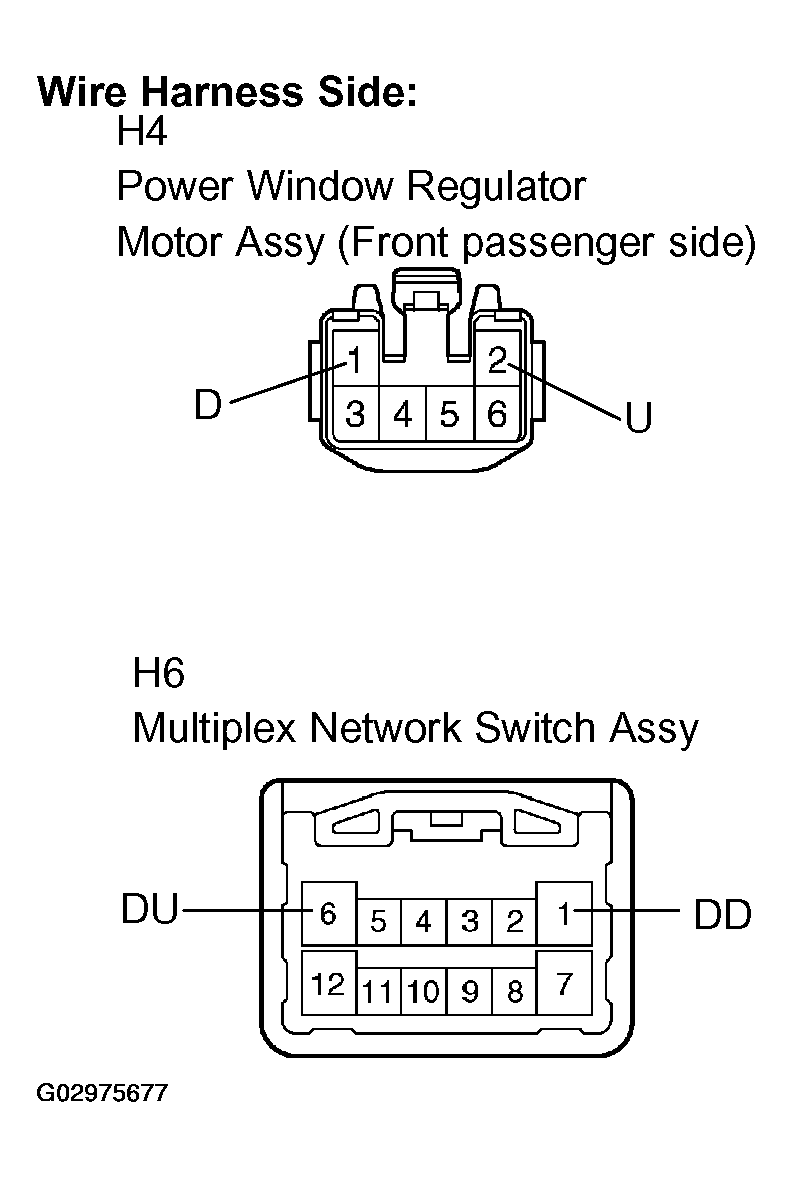

- Disconnect the H4 and H6 connectors.
- Measure the resistance of the wire harness side connectors.
Standard:
SPECIFIED CONDITIONTester Connection Condition Specified Condition H4-2 - H6-6 Always Below 1 Ω H4-1 - H6-1 Always Below 1 Ω H4-2 - Body ground Always 10 kΩ or higher H4-1 - Body ground Always 10 kΩ or higher
- NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
- OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE (See PROBLEM SYMPTOMS TABLE )
