System Diagram

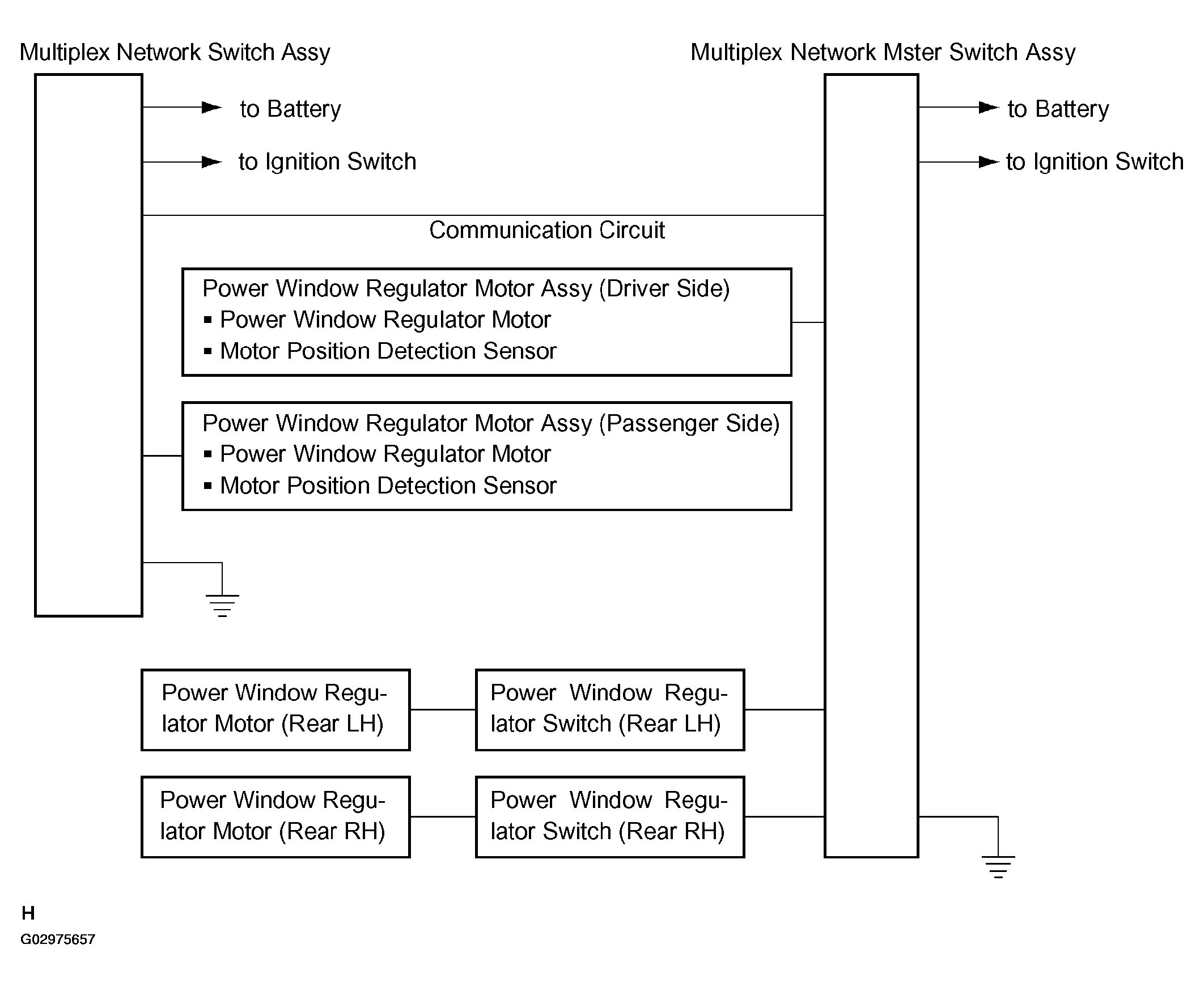

Fig 1: Power Window Control System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
