Mil Circuit: Wiring Diagram

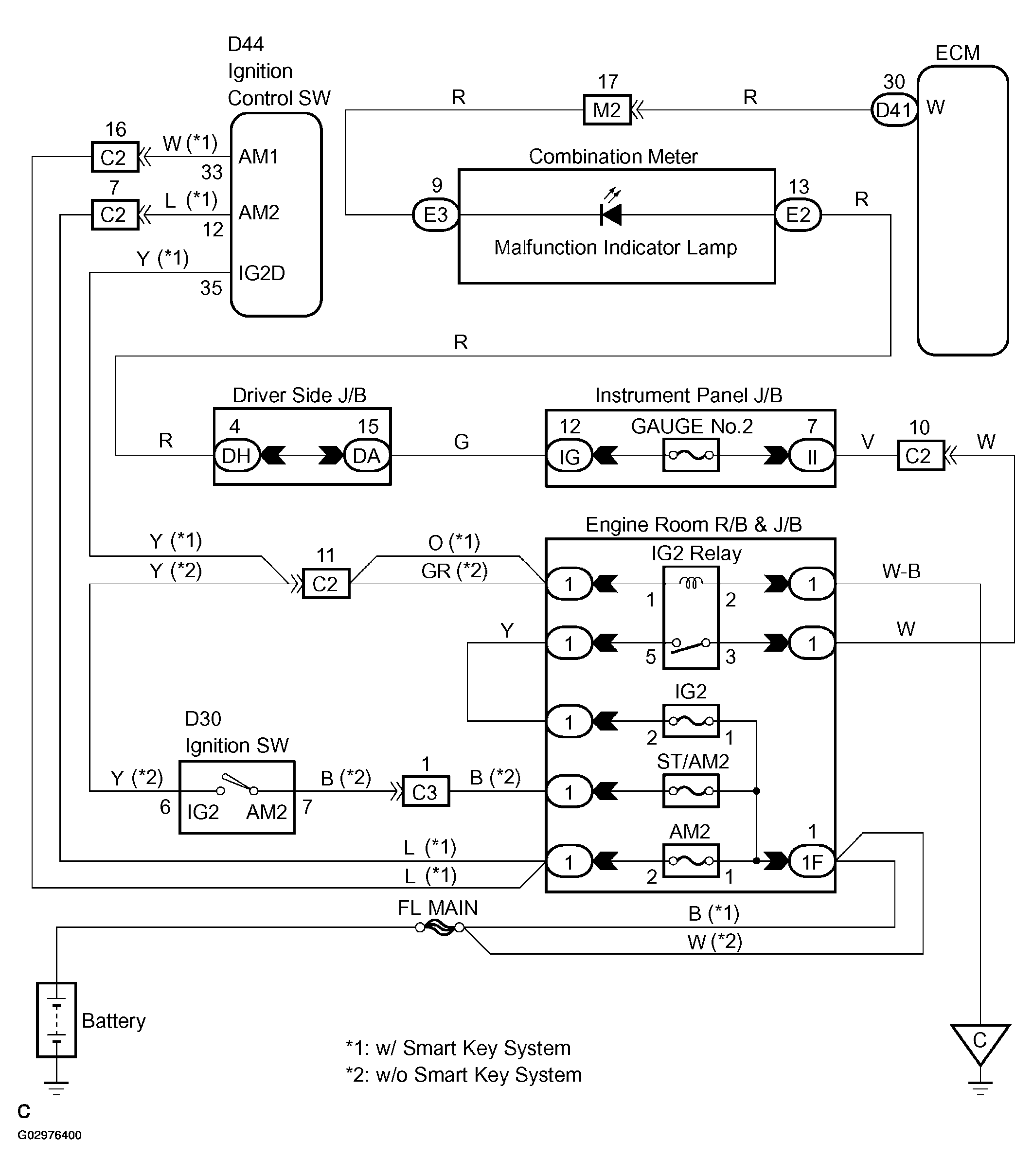

Fig 1: Identifying Wiring Diagram
G02976400Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
