Monitor Strategy

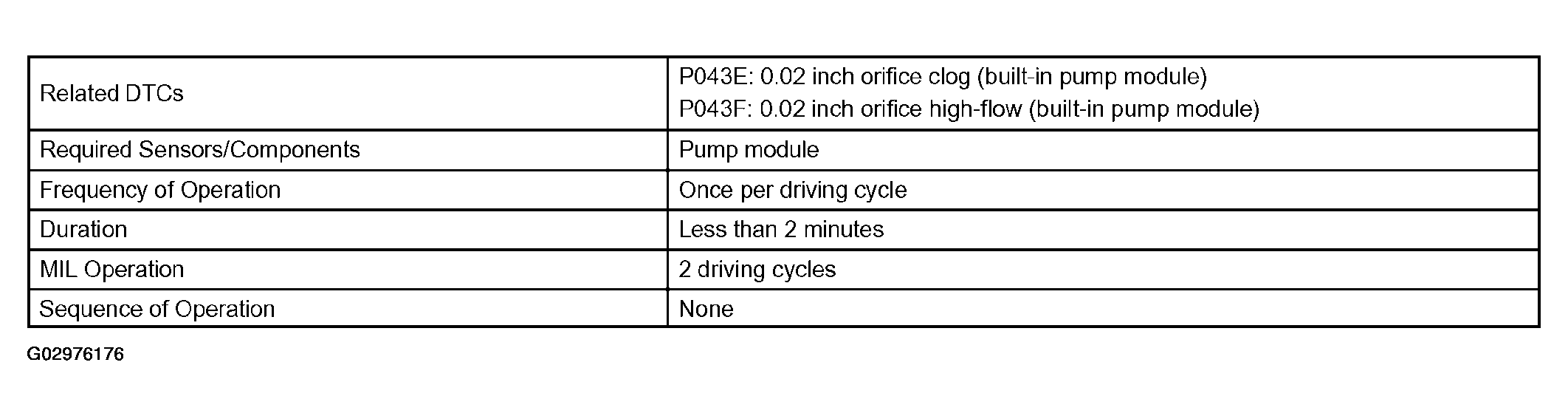

Fig 1: Identifying Monitor Strategy
G02976176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

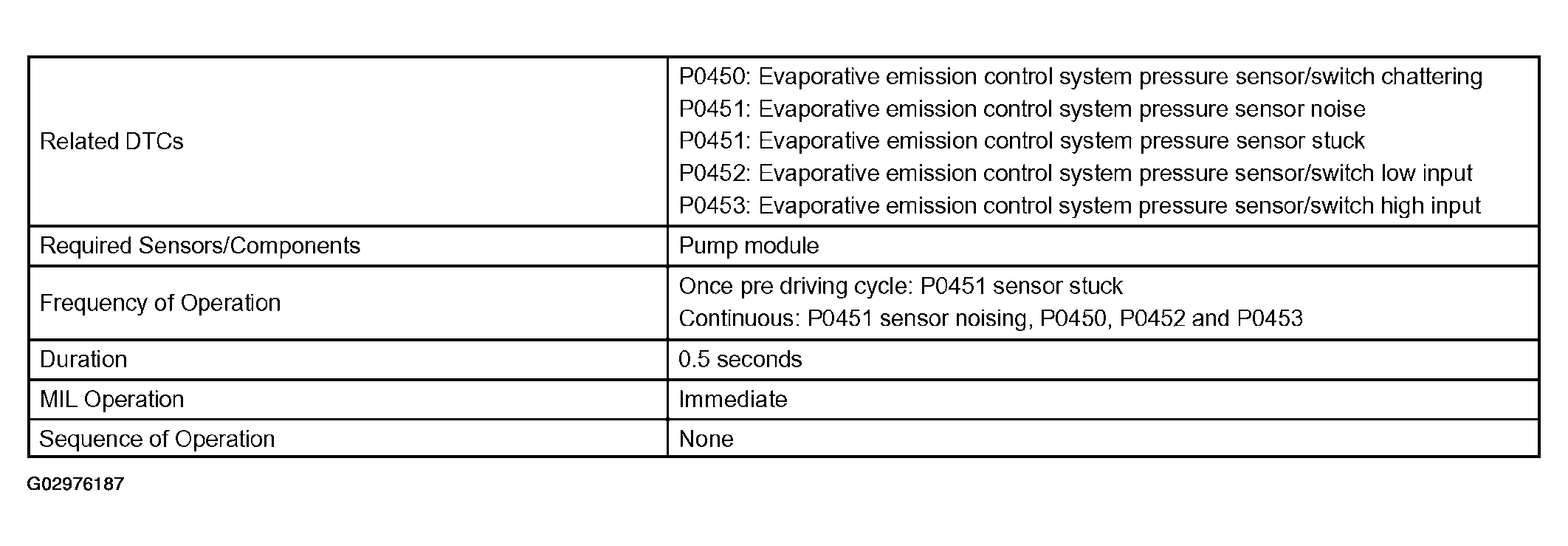

Fig 1: Identifying Monitor Strategy
G02976187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

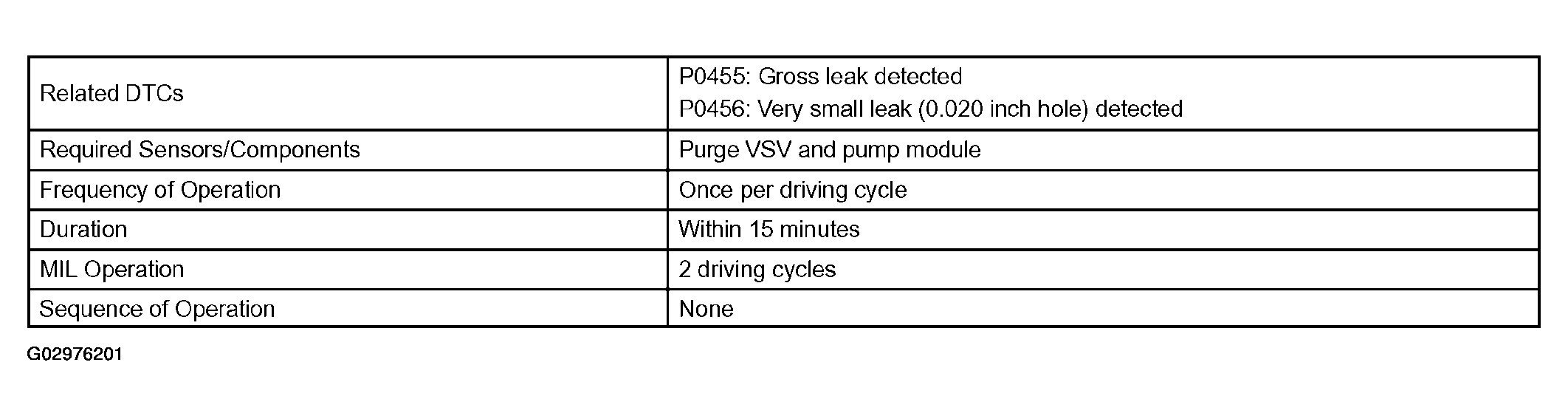

Fig 1: Monitor Strategy Chart
G02976201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
