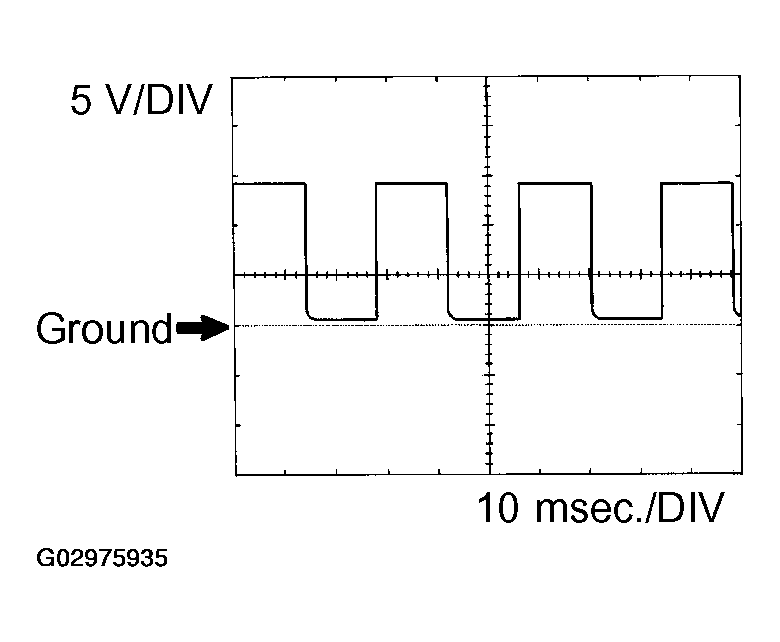

Waveform 11
Engine speed signal
WAVEFORM 11 REFERENCE CHART
| ECM Terminal Names |
Between TACH and E1 |
| Tester Ranges |
5 V/DIV, 10 msec./DIV |
| Conditions |
Idling |
HINT:
The wavelength becomes shorter as the engine rpm increases.
