Waveform 12

Airbag sensor assembly

WAVEFORM 12 REFERENCE CHART

ECM Terminal Names Between F/PS and E1
Tester Ranges 5 V/DIV, 500 msec./DIV
Conditions Idling with warm engine

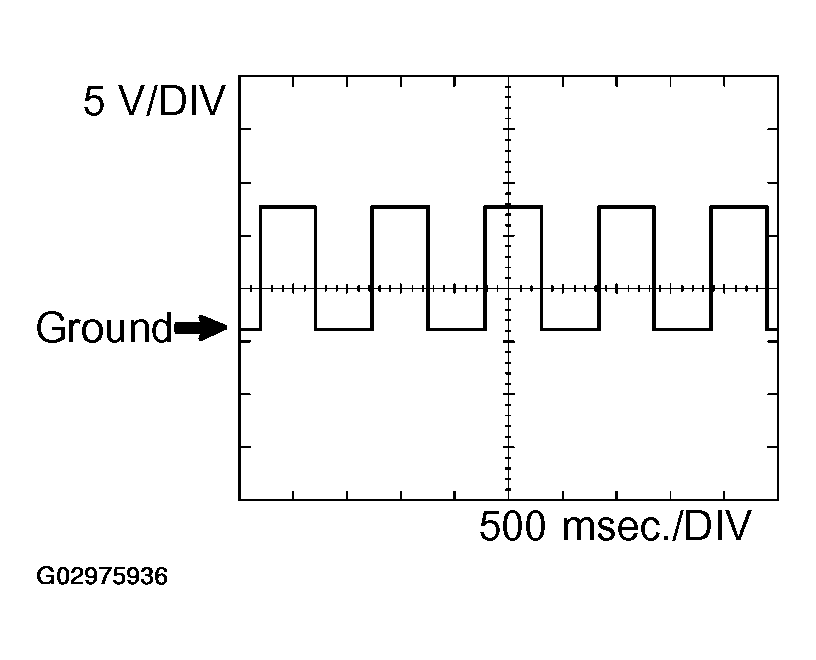

Fig 1: Identifying Waveform 12
G02975936Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
