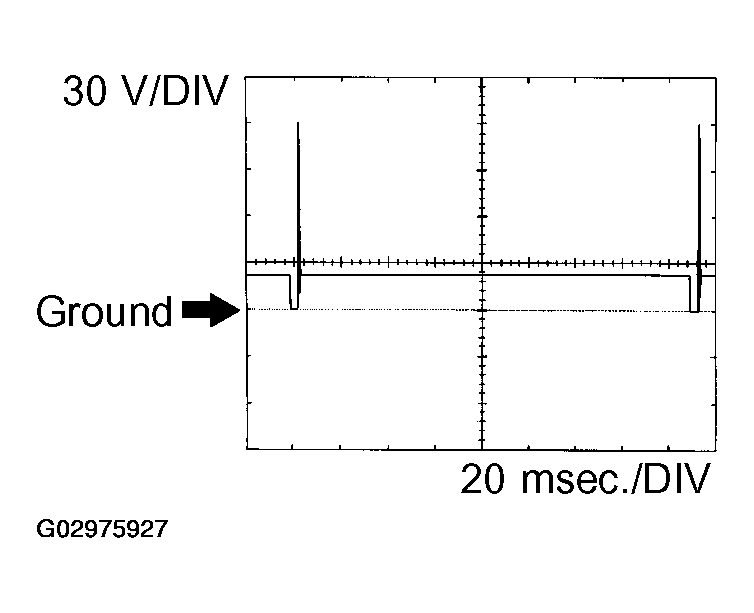

Waveform 3
Fuel injector operation signal
WAVEFORM 3 REFERENCE CHART
| ECM Terminal Names |
Between #10 (to 60) and E01 |
| Tester Ranges |
30 V/DIV, 20 msec./DIV |
| Conditions |
Idling |
HINT:
The wavelength becomes shorter as the engine rpm increases.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
