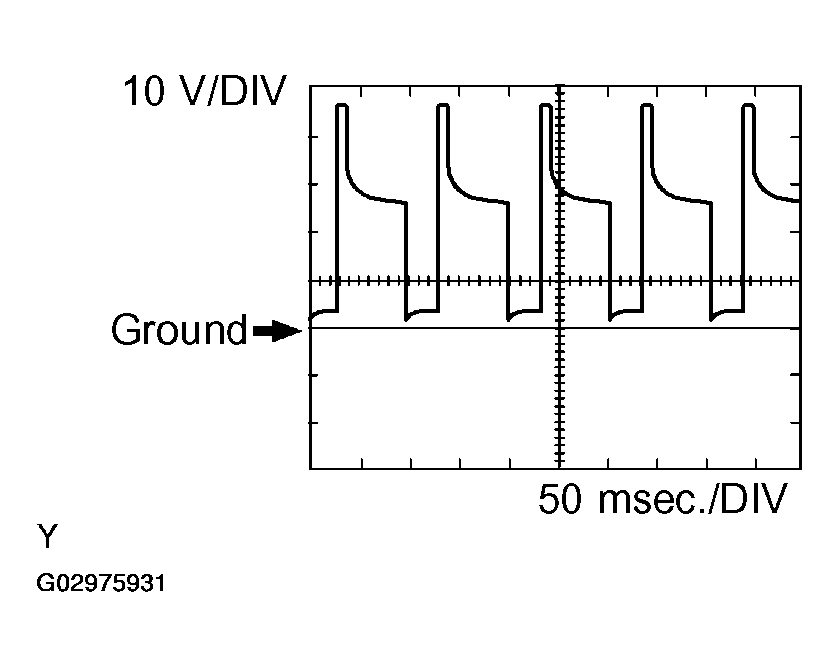

Waveform 7
Purge VSV for EVAP system operation signal
WAVEFORM 7 REFERENCE CHART
| ECM Terminal Names |
Between PRG and E1 |
| Tester Ranges |
10 V/DIV, 50 msec./DIV |
| Conditions |
Idling |
HINT:
If the waveform is not similar to that shown in the illustration, check the waveform again after idling for 10 minutes or more.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
