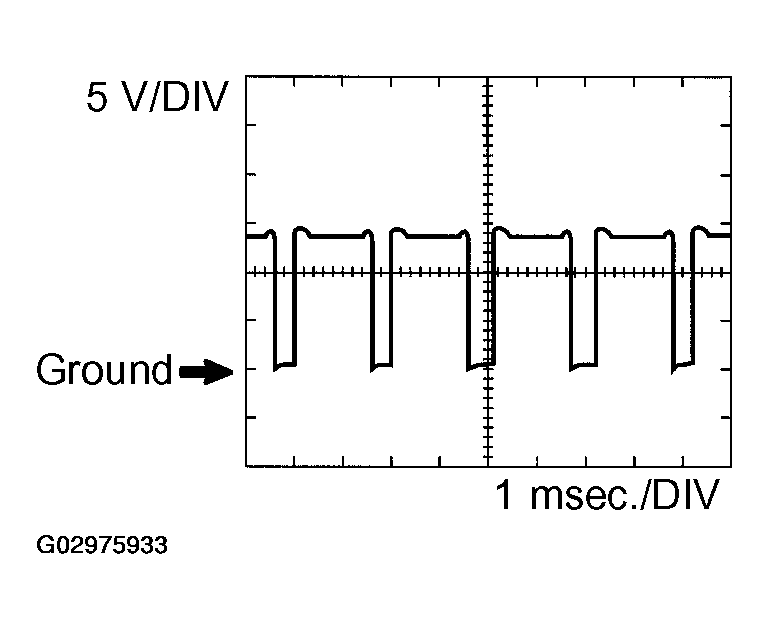

Waveform 9
Throttle drive motor operation signal (positive terminal)
WAVEFORM 9 REFERENCE CHART
| ECM Terminal Names |
Between M+ and ME01 |
| Tester Ranges |
5 V/DIV, 1 msec./DIV |
| Conditions |
Idling with warm engine |
HINT:
The duty ratio varies depending on the throttle actuator operation.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
