Accelerator Pedal (2GR-FE): Replacement

  1. REMOVE ACCELERATOR PEDAL
    1. Disconnect the accelerator pedal connector.
    2. Remove the 2 nuts and the accelerator pedal assy.

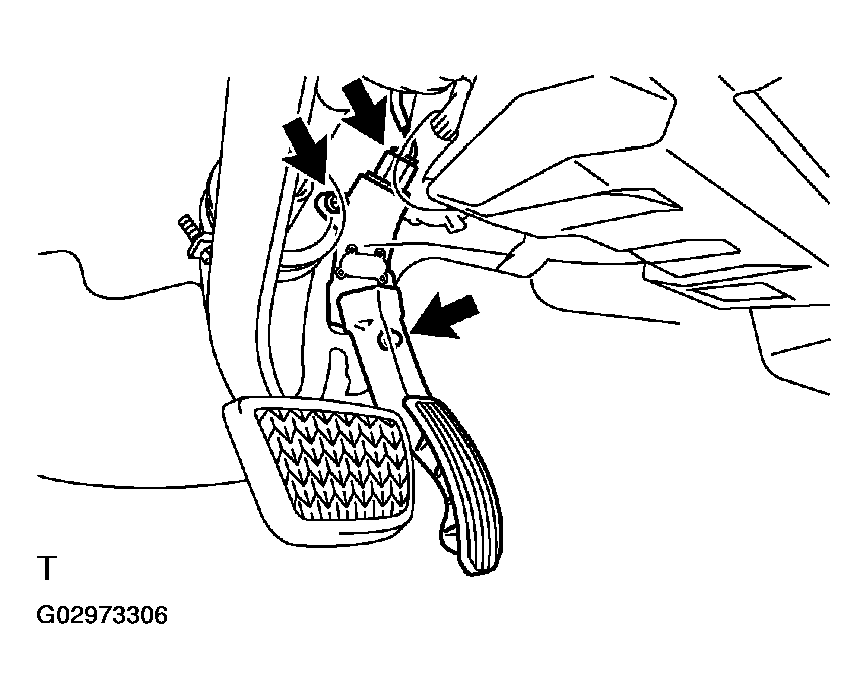

      Fig 1: Removing Accelerator Pedal
      G02973306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL ACCELERATOR PEDAL
    NOTE:
    • Avoid physical shock to the accelerator pedal assy.
    • Do not disassemble the accelerator pedal assy.
    1. Install the accelerator pedal assy with the 2 nuts.

      Torque: 5.4 N.m (55 kgf.cm, 48 in. lbf)

    2. Connect the accelerator pedal connector.
