Knock Control Sensor (2GR-FE): Components

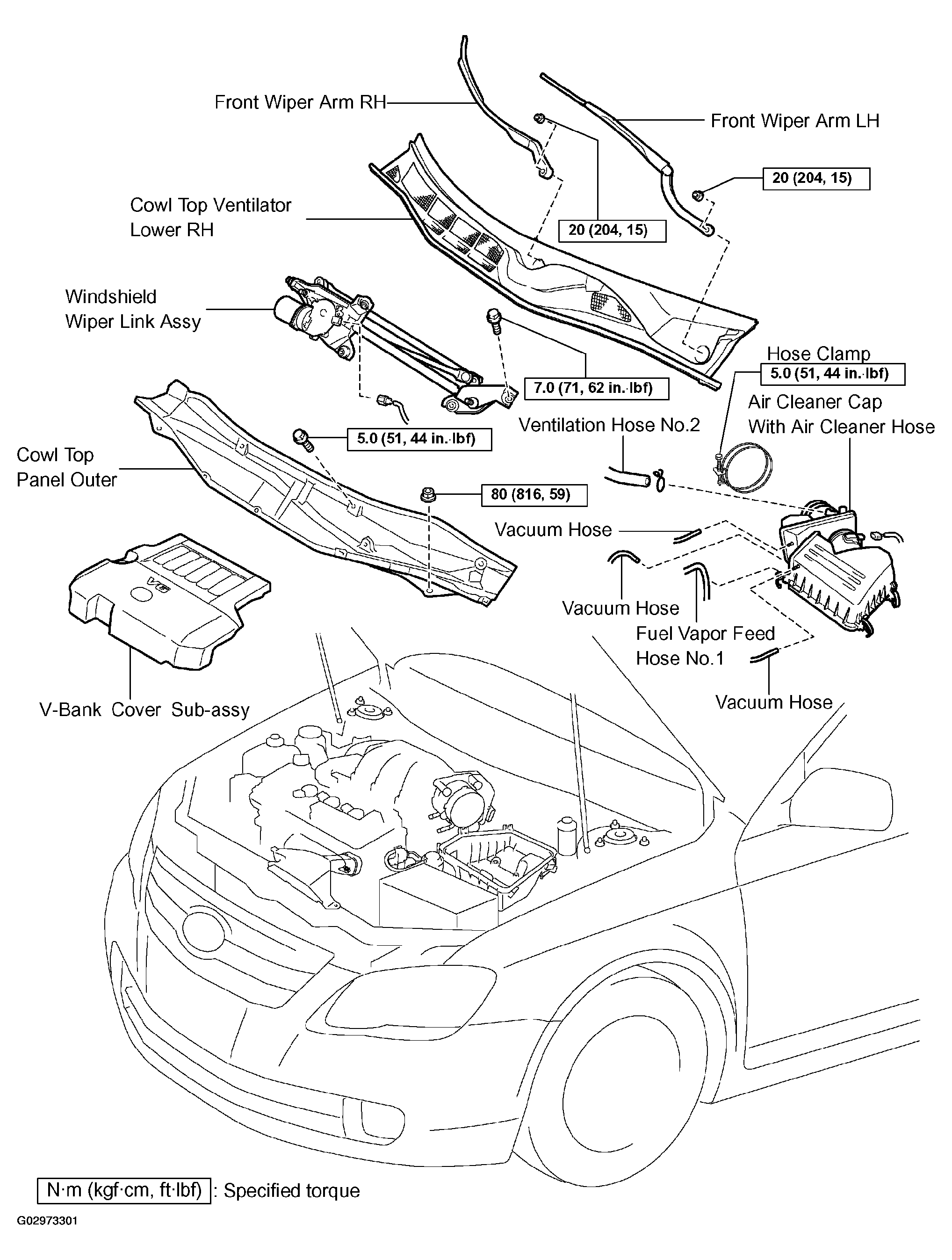

Fig 1: Identifying Knock Control Sensor Components (2GR-FE - 1 Of 2)
G02973301Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

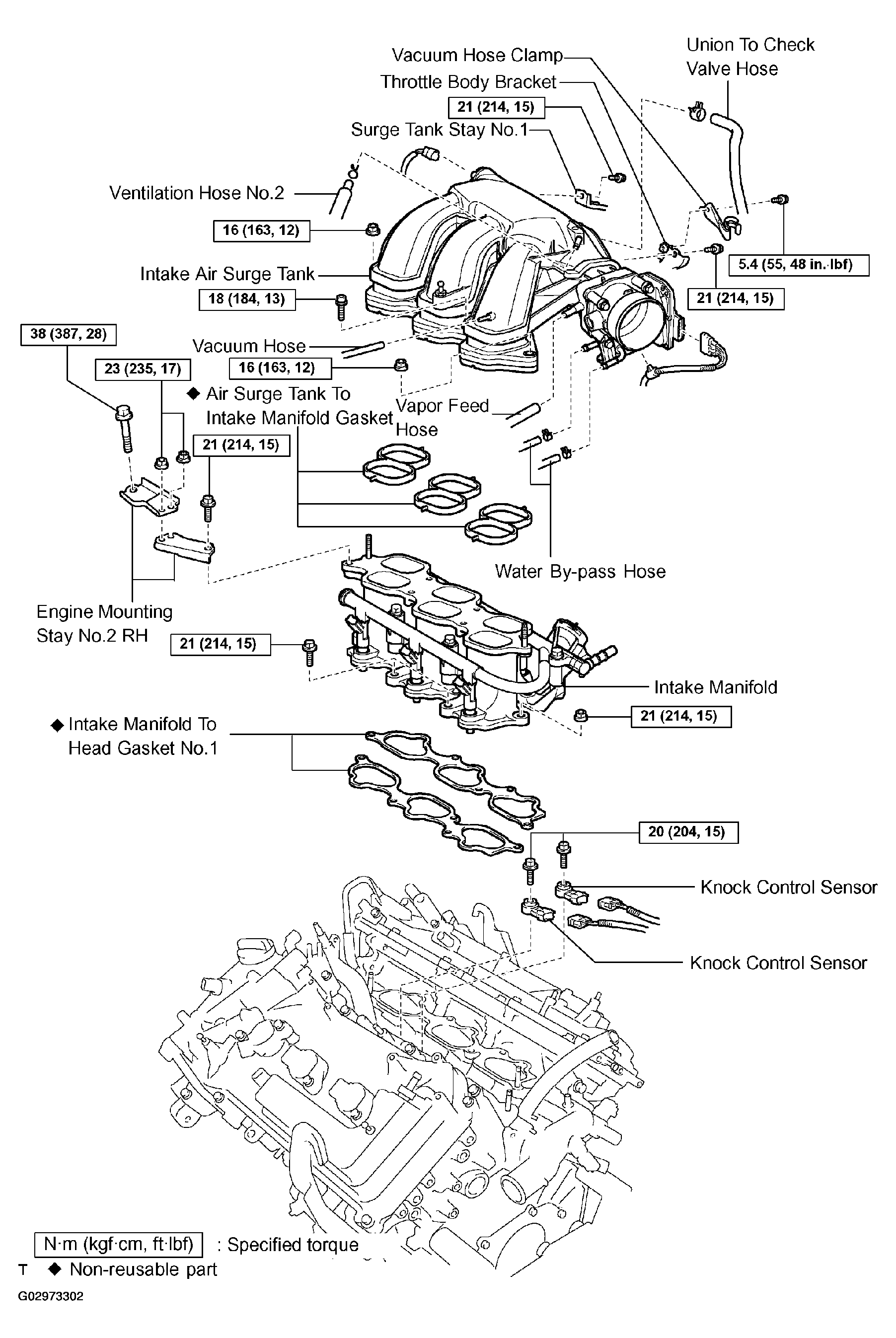

Fig 2: Identifying Knock Control Sensor Components (2GR-FE - 2 Of 2)
G02973302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
